BAWT is a configurable framework written in Tcl for building C/C++ based software libraries from source code without user interaction. Its main usage is for the Windows operating system, where heterogeneous build environments and compilers are needed (or wanted) to build these libraries:

· configure/make (via MSYS / MinGW)

· nmake

· CMake

· Visual Studio Solutions

· gcc (via MSYS / MinGW)

· Visual Studio

Due to the portable nature of Tcl the framework can be used on Linux and Darwin as well using the configure/make/gcc build chain.

The libraries currently supported by BAWT are mainly from the Tcl and OpenSceneGraph domain. For these two domains the framework supports creating installation executables on Windows based on InnoSetup and simple shell-based installation programs for Linux and Darwin.

See chapter 8 Supported Libraries for a list of currently supported libraries.

The framework itself is just one plain Tcl file Bawt.tcl, which reads a Setup file containing all the libraries to be built. Each library must have an accompanying Build file, which contains the details on how to extract, configure, compile and distribute the library. The library itself is stored as one or more zipped source code files, which may contain different versions of the library. The generated shared or static libraries, programs and header files are finally copied into ready-to-use directory structures for use by developers or for software distribution.

The BAWT framework (including Bootstrap and Setup files) as well as the needed MSYS/MinGW files (if running on Windows) must be downloaded manually. You do not need to have Tcl installed to execute the framework. BAWT comes with Tclkits (single-file Tcl interpreter) for Windows, Linux and Darwin.

The library Build and source files can be downloaded automatically on demand.

The BAWT homepage is at https://www.tcl3d.org/bawt.

BAWT is copyrighted by Paul Obermeier and distributed under the 3-clause BSD license.

2 Installation and Usage Examples

This chapter explains the installation of the BAWT framework and gives first simple use cases.

BAWT related downloads are available at https://www.tcl3d.org/bawt/download.html.

2.1 Installation on Windows

Prerequisites:

· None for building libraries supporting MSYS / MinGW.

· Otherwise, Visual Studio (Express, Community or Professional).

o Visual Studio Versions 2013, 2015, 2017, 2019 and 2022 are currently supported.

o If Visual Studio is not installed in the standard location, you have to use procedure SetVcvarsProg with the absolute path to batch script vcvarsall.bat.

Downloads:

· BAWT framework Bawt-3.2.0.zip

· MSYS / MinGW distribution file(s), ex. gcc7.2.0_x86_64-w64-mingw32.7z

Installation:

· Extract BAWT framework Bawt-3.2.0.zip in a directory of choice, ex. C:\Bawt

· Copy MSYS / MinGW distribution file(s) into C:\Bawt\Bawt-3.2.0\Bootstrap-Windows

· Open command shell window and go into directory C:\Bawt\Bawt-3.2.0

Usage examples:

· Create basic Tcl packages for a 32-bit Intel machine (using only MSYS / MinGW):

> Build-Windows.bat intel 32 gcc Setup\Tcl_Basic.bawt update

· Create basic Tcl packages for a 64-bit Intel machine (using only MSYS / MinGW):

> Build-Windows.bat intel 64 gcc Setup\Tcl_Basic.bawt update

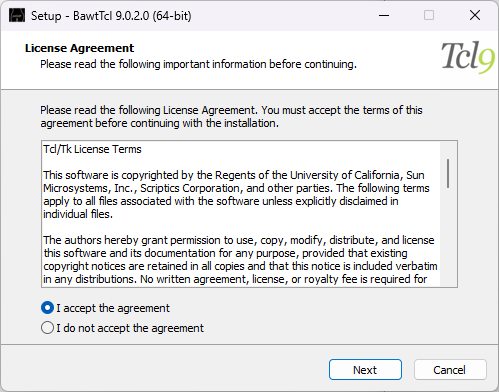

· Create extended Tcl packages including InnoSetup installation executable for a 64-bit Intel machine (using Visual Studio 2019 to build Tcl packages supporting Visual Studio like Mpexpr and tkdnd):

> Build-Windows.bat intel 64 gcc+vs2019 Setup\Tcl_Distribution.bawt update

· Run the test suite of Tcl and Tk:

> Build-Windows.bat intel 64 gcc Setup\Tcl_MinimalDist.bawt test Tcl Tk

2.2 Installation on Linux

Prerequisites:

· Required: C/C++ development package, curl, p7zip

· Optional: Dependent on the libraries. See below for distribution specific examples.

Downloads:

· BAWT framework Bawt-3.2.0.zip

Installation:

· Extract BAWT framework Bawt-3.2.0.zip in a directory of choice, ex. ~/Bawt

· Open shell (Terminal window), go into created directory ~/Bawt Bawt-3.2.0 and execute:

> chmod u+x Build*.sh

> chmod u+x tclkit*

Usage examples:

· Create basic Tcl packages for a 64-bit Intel machine:

> ./Build-Linux.sh intel 64 Setup/Tcl_Basic.bawt update

· Create extended Tcl packages including simple shell-based installation script for a 64-bit ARM machine:

> ./Build-Linux.sh arm 64 Setup/Tcl_Distribution.bawt update

· Create minimal Tcl packages including simple shell based installation script for a 64-bit Risc-V machine:

> ./Build-Linux.sh riscv 64 Setup/Tcl_Basic.bawt update

· Run the test suite of Tcl and Tk:

> ./Build-Linux.sh arm 64 gcc Setup/Tcl_MinimalDist.bawt test Tcl Tk

If compiling Tcl3DFull on slow machines like Raspberry or Risc-V, you should add the following BAWT options:

--osgversion 3.4.1 --libjobs tcl3dFull 1 --copt tcl3dFull OptOsg=OFF

Distribution specific prerequisites:

See chapter 3.2 Setup Files for a list of available Setup files and the dependencies between Setup files. If you want to build ex. Tcl_Extended.bawt, you must not only install the prerequisites of this Setup file, but also the prerequisites of the dependent Setup file Tcl_Basic.bawt.

Debian 12.0 Bookworm (gcc 12.2.0)

· Install default Debian 12.0 desktop distribution (ex. debian-12.0.0-amd64-DVD-1.iso)

· Use ex. Synaptic to install further packages:

Setup file	Debian package	Needed by library
All	build-essential	All C/C++ based libraries.
	curl	BAWT framework.
	p7zip
	zip

Tcl_Basic.bawt	libx11-dev	Tk
	libcups2-dev	Tk (printing)
	libcairo2-dev	tkpath
	libglx-dev	Canvas3d
	libglu1-mesa-dev	Canvas3d
	libasound2-dev	Snack

Tcl_Extended.bawt	libxrandr-dev	tcl3dBasic
	libpython3.11-dev	tclpy
	python3-numpy	tclpy
	libxcursor-dev	tkdnd
	libudev-dev	tcluvc
	libjpeg*-turbo-dev	tcluvc libgd

Tcl3D.bawt	libxi-dev	glfw
Tcl3D.bawt	libxinerama-dev	glfw

OSG_Extended.bawt	freeglut3-dev	Cal3D

Raspberry Pi OS (gcc 10.2.1)

· Install default Raspberry Pi OS using the Raspberry Pi Imager.

· Packages build-essential, curl and p7zip are part of the OS installation.

· As Raspberry Pi OS is based on Debian, install additional packages as for Debian.

Ubuntu 23.04 (gcc 12.2.0)

· Install default Ubuntu 23.04 desktop distribution (ex. ubuntu-23.04-desktop-amd64.iso)

· Use ex. Synaptic to install further packages:

Setup file	Ubuntu package	Needed by library
All	build-essential	All C/C++ based libraries.
	curl	BAWT framework.
	p7zip
	zip

Tcl_Basic.bawt	libx11-dev	Tk
	libcups2-dev	Tk (printing)
	libcairo2-dev	tkpath
	libglx-dev	Canvas3d
	libglu1-mesa-dev	Canvas3d
	libasound2-dev	Snack

Tcl_Extended.bawt	libxrandr-dev	tcl3dBasic
	libpython3.11-dev	tclpy
	python3-numpy	tclpy
	libxcursor-dev	tkdnd
	libudev-dev	tcluvc
	libjpeg*-turbo-dev	tcluvc libgd

Tcl3D.bawt	libxi-dev	glfw
Tcl3D.bawt	libxinerama-dev	glfw

OSG_Extended.bawt	freeglut3-dev	Cal3D

SUSE 15.5 (gcc 7.5.0)

· Install default SUSE 15.5 desktop distribution (ex. openSUSE-Leap-15.5-DVD-x86_64-Build491.1-Media.iso)

· Use Yast to install further packages:

Setup file	SUSE schema	Needed by library
All	General development	All C/C++ based libraries.
All	C++ development	All C/C++ based libraries.

Setup file	SUSE package	Needed by library
Tcl_Basic.bawt	libx11-devel	Tk
	cups-devel	Tk (printing)
	cairo-devel	tkpath
	alsa-devel	Snack

Tcl_Extended.bawt	glu-devel	tcl3dBasic
	libxrandr-devel	tcl3dBasic
	python3-devel	tclpy
	python3-numpy	tclpy
	libxcursor-devel	tkdnd
	systemd-devel	tcluvc
	libjpeg*-devel	tcluvc libgd

Tcl3D.bawt	libxi-devel	glfw
Tcl3D.bawt	libxinerama-devel	glfw

OSG_Extended.bawt	freeglut-devel	Cal3D

Fedora 38.1 (gcc 13.1.1)

· Install default Fedora 38.1 workstation distribution (ex. Fedora-Workstation-Live-x86_64-38-1.6.iso)

· Use dnf to install further packages:

Setup file	dnf groupinstall	Needed by library
All	Development Tools	All C/C++ based libraries.
	Development Libraries
	X Software Development

Setup file	dnf install	Needed by library
Tcl_Basic.bawt	cups-devel	Tk (printing)
	gcc-g++	photoresize
	cairo-devel	tkpath
	alsa-lib-devel	Snack

Tcl_Extended.bawt	mesa-libGLU-devel	tcl3dBasic
	jbigkit-devel	openjpeg
	liblerc-devel	openjpeg
	libudev-devel	tcluvc

Tcl3D.bawt	libXinerama-devel	glfw

OSG_Extended.bawt	freeglut-devel	Cal3D

2.3 Installation on Darwin

Prerequisites:

· XCode

· curl (should be available by default on Darwin)

Downloads:

· BAWT framework Bawt-3.2.0.zip

Installation:

· Extract BAWT framework Bawt-3.2.0.zip in a directory of choice, ex. ~/Bawt

· Open shell (Terminal window), go into created directory ~/Bawt Bawt-3.2.0 and execute:

> chmod u+x Build*.sh

> chmod u+x tclkit*

Usage examples:

Note, that Darwin does not support 32-bit programs.

· Create basic Tcl packages as universal binaries:

> ./Build-Darwin.sh universal Setup/Tcl_Basic.bawt update

· Create extended Tcl packages including simple shell-based installation script as native binaries:

> ./Build-Darwin.sh native Setup/Tcl_Distribution.bawt update

· Run the test suite of Tcl and Tk:

> ./Build-Darwin.sh native Setup/Tcl_MinimalDist.bawt test Tcl Tk

2.4 Use of Batch Scripts

As the BAWT framework is generic and has lots of command line options (see chapter 7 Command Line Options), a batch or shell script for each supported platform is included in the distribution for ease of usage in the most common use cases:

· Build-Windows.bat

· Build-Linux.sh

· Build-Darwin.sh

These batch scripts have been used in the examples of the previous chapters and may serve as starting point for your own batch scripts suited exactly to your needs.

Batch script Build-Windows.bat

@echo off

setlocal

rem Default values for some often used options.

set OUTROOTDIR=../BawtBuild

set NUMJOBS=%NUMBER_OF_PROCESSORS%

rem First 5 parameters are mandatory.

if "%1" == "" goto ERROR

if "%2" == "" goto ERROR

if "%3" == "" goto ERROR

if "%4" == "" goto ERROR

if "%5" == "" goto ERROR

set PROCESSOR=%1

set BITS=%2

set COMPILER=%3

set SETUPFILE=%4

set ACTION=%5

shift

rem If no target is given, use target "all".

if "%1"=="" goto BUILDALL

rem Loop through the rest of the parameter list for targets.

set TARGETS=

:PARAMLOOP

rem There is a trailing space in the next line. It's there for formatting.

set TARGETS=%TARGETS%%1

shift

if not "%1"=="" goto PARAMLOOP

goto BUILD

:BUILDALL

if "%ACTION%"=="clean" goto WARNING

if "%ACTION%"=="complete" goto WARNING

set TARGETS=all

:BUILD

if "%BITS%"=="32" set ARCH=x86

if "%BITS%"=="64" set ARCH=x64

if "X%ARCH%"=="X" goto ERROR

if "X%TCLKIT%"=="X" set TCLKIT=tclkit-win32-intel.exe

set ACTION=--%ACTION%

set BAWTOPTS=--rootdir %OUTROOTDIR% ^

--architecture %ARCH% ^

--compiler %COMPILER% ^

--numjobs %NUMJOBS% ^

--logviewer

rem Build all libraries as listed in Setup file.

CALL %TCLKIT% Bawt.tcl %BAWTOPTS% %ACTION% %SETUPFILE% %TARGETS%

goto EOF

:WARNING

echo Warning: This may clean or rebuild everything.

echo Use "clean all" or "complete all" to allow this operation.

:ERROR

echo.

echo Usage: %0 Processor Bits Compiler SetupFile Action [Target1] [TargetN]

echo Processor : intel

echo Bits : 32 64

echo Compiler : gcc vs2013 vs2015 vs2017 vs2019 vs2022

echo gcc+vs20XX vs20XX+gcc

echo Actions : list clean extract configure compile distribute

echo finalize complete update simulate touch test

echo Default target : all

echo.

echo Output directory: %OUTROOTDIR%

echo.

echo Specify variable TCLKIT on the command line to use a separate bootstrap program.

echo Example:

echo set TCLKIT=tclsh ^&^& Build-Windows.bat intel 64 gcc Setup\Tcl_Basic.bawt update

echo.

:EOF

See also chapter 5.5 Advanced Batch Scripts for examples of more complex batch scripts.

3 Directory and File Structure

This chapter explains the directory structure of the input and output files as well as the contents and structure of the Setup and Build files.

3.1 Directory Structure

3.1.1 Structure of the input directories

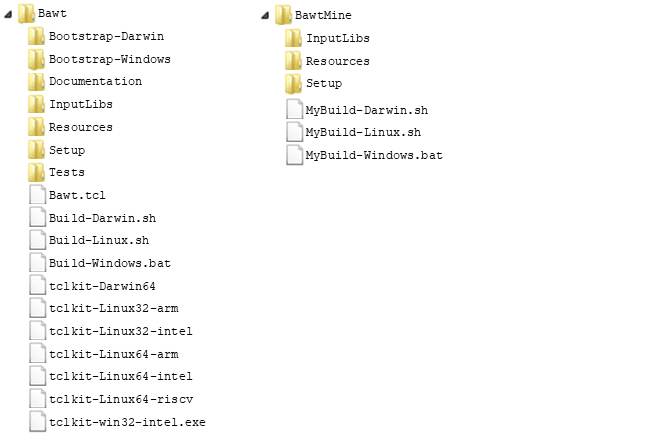

If BAWT was downloaded and installed according to the instructions in chapter 2 Installation and Usage, the following directory structure should exist.

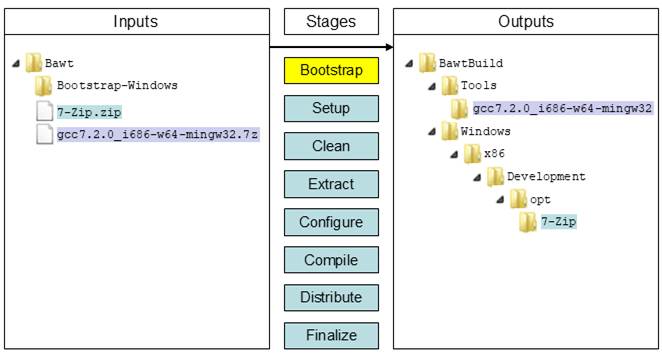

The Bootstrap directories contain zipped versions of the 7-zip program for Windows and Darwin and zipped versions of the zip program for Windows and Linux.

In directory Bootstrap-Windows there should be at least one version of the MSYS/MinGW distributions, which you must have downloaded manually.

Directory InputLibs contains the zipped source code versions of the libraries and the associated Build files, see chapter 0

Build Files for a detailed description of Build files. Note, that this directory is empty after a fresh installation of BAWT, because the corresponding files are downloaded on demand at the first start of a BAWT build by default. See chapter 5 Build Process on how to avoid automatic downloads and updates.

The Setup files (see chapter 3.2 Setup Files) supplied with BAWT are located in directory Setup.

Directory Tests contains several simple test scripts for checking correct compilation and installation of Tcl related packages.

For each supported platform there is also a Tclkit executable supplied, which is needed to run the BAWT framework, if no Tcl interpreter is available on your machine (Bootstrapping). A Tclkit is a single-file Tcl interpreter executable.

3.1.2 Structure of the output directories

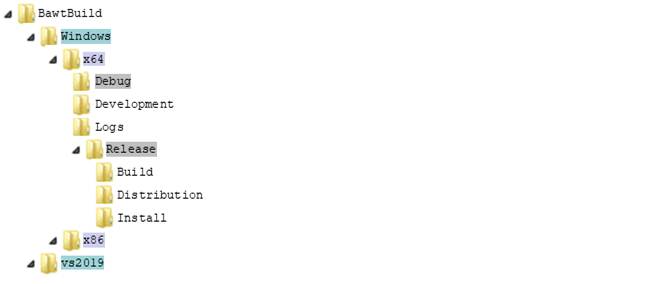

The root directory of the output files of a BAWT build (BawtBuild in the above example) can be specified with command line option --rootdir. In a Build script this directory can be queried with Tcl procedure GetOutputRootDir.

Beneath the root build directory there can be several directories named according to the build environment used: Windows, Linux, Darwin for builds with gcc or vs2013, vs2015, vs2017, vs2019 or vs2022, if a Visual Studio version was used for building.

Beneath these environment specific directories two directory names can appear, depending on the build architecture: x86 for 32-bit or x64 for 64-bit builds.

In these architecture specific directories 3 to 4 subdirectories are contained.

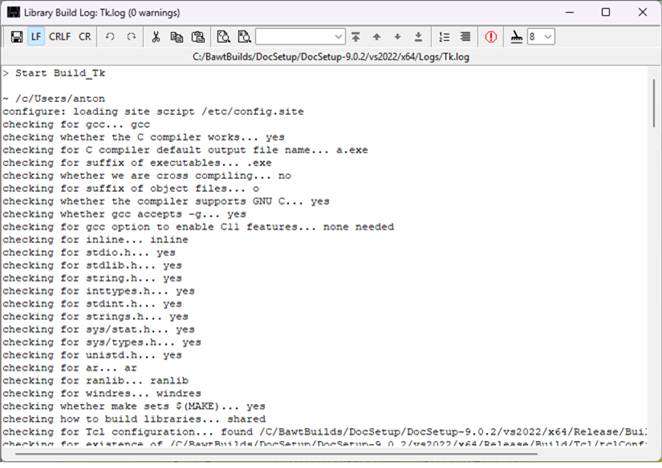

The Logs directory contains the overall build log file _BawtBuild.log as well as the library specific build log files. See chapter 0

Logging for an in-depth explanation of BAWT logging functionality.

The Development directory contains all the files needed for a developer using the built libraries.

Depending on the specified build types, directories called Release and Debug will be created. These directories contain the Build and Install subdirectories, where the actual sources are extracted and built as well as a Distribution subdirectory, which will contain all files needed for a software distribution of the compiled libraries.

The Distribution and Development directories contain mostly identical content. The Development directory typically contains additional library include files and import files (*.lib). It is the task of the library specific Build file to copy the needed files into the Distribution and Development directories.

3.1.3 Directory access

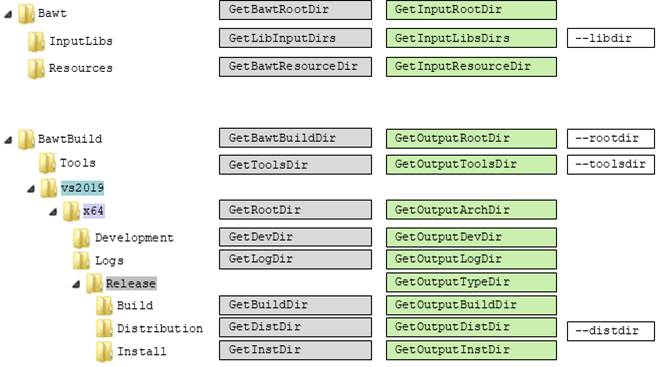

The next figure shows the input and output directory hierarchy together with the procedures which can be used to get the path to the corresponding directory. The first procedure column (grey boxes) shows the names used in BAWT versions prior to 1.0, the second column (green boxes) shows the names as used by BAWT 1.0 and newer.

The last column shows the available command line options to change the location of a specific input or output directory.

The library search paths, which can be obtained with procedure GetInputLibsDirs are set at BAWT start-up to the following values:

· file join [GetInputRootDir] "InputLibs"

· file join [pwd] "InputLibs"

This list can be extended by using command line option --libdir.

If command line option --nosubdirs is specified, procedures GetOutputArchDir and GetOutputRootDir return the same directory path.

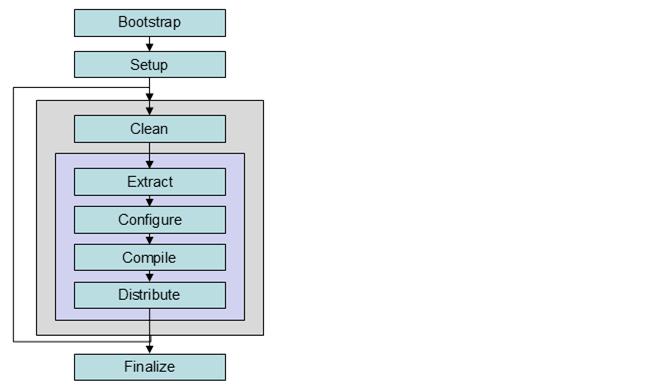

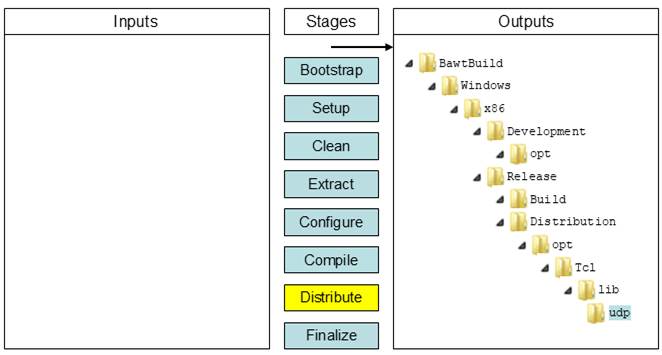

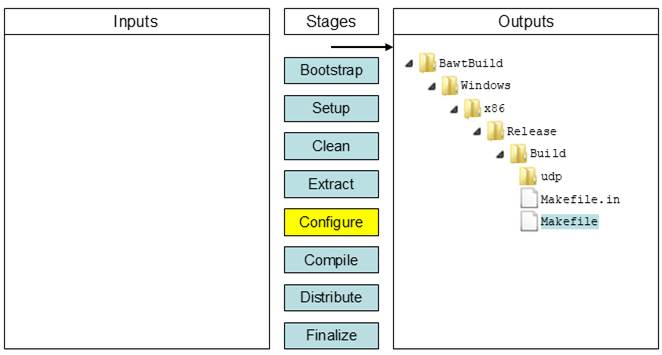

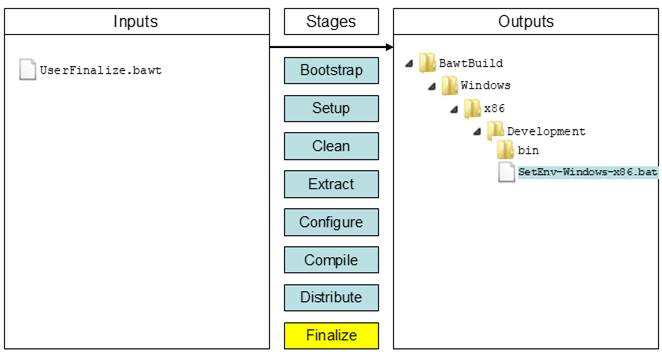

See chapter 4 Build Stages for an in-depth tour through the directory structure of BAWT in conjunction with the different build stages.

3.2 Setup Files

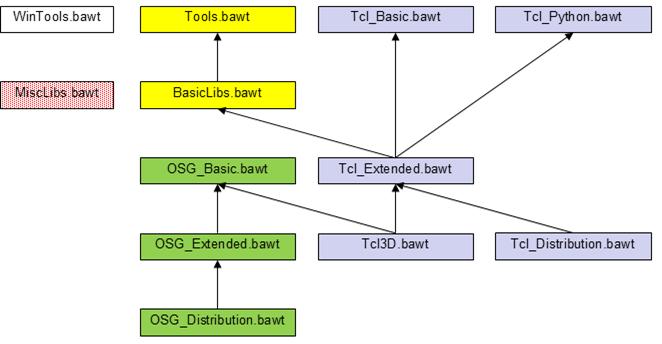

The following figure shows all available Setup files and their dependencies.

For the Tcl ecosystem the following Setup files are currently supported.

Tcl_MinimalDist.bawt	Builds Tcl, Tk and creates an InnoSetup based setup file on Windows or an installation shell script on Unix.
Tcl_Basic.bawt	Builds Tcl, Tk, Tclkit and Tcl/Tk packages, which do not depend on 3rd party libraries. On Windows all libraries can be compiled with MSYS/MinGW.
Tcl_Python.bawt	Extracts the binary Python distribution on Windows and builds the tclpy package.
Tcl_Extended.bawt	Builds all libraries of Tcl_Basic.bawt, Tcl_Python.bawt and Tcl/Tk packages which depend on 3rd party libraries, like SWIG, CMake, libressl or image libraries. On Windows all libraries can be compiled with MSYS/MinGW.
Tcl3D.bawt	Builds all libraries of Tcl_Extended.bawt and the extended version of Tcl3D, which depends on 3rd party libraries like OpenSceneGraph, SDL, FTGL.
Tcl_Distribution.bawt	Builds all libraries of Tcl_Extended.bawt and creates an InnoSetup based setup file on Windows or an installation shell script on Unix.

For the OpenSceneGraph ecosystem the following Setup files are currently supported.

OSG_Basic.bawt	Builds OpenSceneGraph with basic plugin libraries as needed by Tcl3D. On Windows all libraries can be compiled with MSYS/MinGW.
OSG_Extended.bawt	Builds all libraries of OSG_Basic.bawt and builds OpenSceneGraph with extended plugin libraries, as well as libraries depending on OpenSceneGraph like osgEarth.
OSG_Distribution.bawt	Builds all libraries of OSG_Extended.bawt and creates an InnoSetup based setup file on Windows or an installation shell script on Unix.

Both the OpenSceneGraph ecosystem as well as the extended Tcl versions need special tools for building or basic libraries they depend upon.

Tools.bawt	Builds tools needed for building of libraries, like CMake or SWIG.
BasicLibs.bawt	Builds basic libraries needed by other libraries like several image libraries, zlib, freetype, ffmpeg and libressl.

There are two other Setup files not directly related to one of the above-mentioned ecosystems.

WinTools.bawt

Convenience tools for Windows supplied as precompiled binaries like Vim or Doxygen.

MiscLibs.bawt

Builds miscellaneous libraries not directly related to Tcl or OpenSceneGraph like mathematical, geographical or XML libraries.

Note, that the libraries listed in this file are not updated or supported since BAWT version 3.

See the tables at the end of this chapter for the detailed content of the Setup files.

Setup files are standard Tcl script files. They must have one or more calls to the BAWT Setup procedure for each library being built. Optionally one or more calls to the BAWT Include procedure can be specified to add dependent libraries.

The Setup procedure has the following signature:

proc Setup { libName zipFile buildFile args }

The following 3 mandatory parameters must be specified:

· libName: Library name.

· zipFile: Zipped library source file or library source directory.

· buildFile: File containing build script for the library (see next chapter).

The following optional build parameters are currently supported:

Release	Build the Release version of the library. This is the default.
Debug	Build the Debug version of the library. Note, that not all libraries may support Debug mode.

NoTcl8 NoTcl9	Do not build the library with Tcl 8 resp. Tcl 9.
NoTk8 NoTk9	Do not build the library with Tk 8 resp. Tk 9.
NoGccX	Do not build the library with gcc major version X.
NoUniversal	Do not build the library as MacOS universal binary.

NoWindows	Do not build the library on Windows.
NoLinux	Do not build the library on Linux.
NoDarwin	Do not build the library on Darwin.
NoWindows-arm	Do not build the library on ARM based Windows.
NoWindows-intel	Do not build the library on Intel based Windows.
NoLinux-arm	Do not build the library on ARM based Linux.
NoLinux-intel	Do not build the library on Intel based Linux.
NoLinux-riscv	Do not build the library on RISC-V based Linux.
NoDarwin-arm	Do not build the library on ARM based Darwin.
NoDarwin-intel	Do not build the library on Intel based Darwin.

WinCompiler=winCompiler	Specify the Windows compiler to use. Valid Windows compiler names are: gcc, vs. Note, that the Build file must have support for both Visual Studio and MSYS/MinGW instructions.
ForceVS (Deprecated)	Force using Visual Studio instead of using MSYS/MinGW. Note, that the Build file must have support for both Visual Studio and MSYS/MinGW instructions.

Version=X.Y.Z	Specify or override a version string for the library. Use this option, if building a library from a directory (ex. your repository workspace), which does not have a version number included in the directory name.
MaxParallel=Platform:NumJobs	Specify the number of parallel build jobs for a specific platform. Some build systems do not work correctly with lots of parallel builds. Valid platform names are: Windows, Linux, Darwin. The platform name may be optionally appended by the compiler type vs or gcc. Example: MaxParallel=Windows-gcc:2
NoParallel=Platforms (Deprecated)	Specify platforms as comma separated list for which parallel builds should be disabled. Valid platform names are: Windows, Linux, Darwin.

All other strings	Strings not matching any of the above patterns are interpreted as a user configuration string. User configuration strings are either appended to the CMake or configure commands of the library or can be evaluated by the Build script. See chapter 3.3.2 User configurable build files for a description of user configuration strings.

The next tables list the contents of the currently available Setup files.

Setup file Tools.bawt

# Builds tools needed for building of libraries, like CMake or SWIG.

# Setup LibName ZipFile BuildFile BuildOptions

if { [UseVisualStudio "primary"] && [GetVisualStudioVersion] <= 2010 } {

Setup CMake CMake-3.21.4.7z CMake.bawt

} elseif { [IsDarwin] } {

# Use newest CMake only on new Darwin systems.

Setup CMake CMake-3.31.7.7z CMake.bawt

} else {

# Use this CMake version, so that Visual 2013 still works.

Setup CMake CMake-3.25.2.7z CMake.bawt

}

Setup pandoc pandoc-3.5.7z pandoc.bawt NoLinux-riscv

Setup pkgconfig pkgconfig-0.29.2.7z pkgconfig.bawt

Setup SWIG SWIG-4.3.1.7z SWIG.bawt

Setup yasm yasm-1.3.0.7z yasm.bawt

Setup nasm nasm-2.16.3.7z nasm.bawt

Setup file BasicLibs.bawt

# Builds basic libraries needed by several other libraries.

Include "Tools.bawt"

# All of the following libraries can be compiled on Linux or Darwin,

# but it is better to use the system provided libraries.

# Setup LibName ZipFile BuildFile BuildOptions

# Basic library needed by most other libraries.

Setup ZLib ZLib-1.3.1.7z ZLib.bawt NoLinux NoDarwin

Setup xz xz-5.4.1.7z xz.bawt NoLinux NoDarwin

# Basic Image libraries.

Setup giflib giflib-5.2.1.7z giflib.bawt NoLinux

Setup libwebp libwebp-1.2.4.7z libwebp.bawt NoLinux

Setup JPEG JPEG-9.f.7z JPEG.bawt NoLinux NoDarwin

Setup openjpeg openjpeg-2.5.3.7z openjpeg.bawt

Setup PNG PNG-1.6.48.7z PNG.bawt NoLinux MaxParallel=Windows-gcc:1

Setup TIFF TIFF-4.7.0.7z TIFF.bawt NoLinux NoDarwin

if { [IsGccCompilerNewer "4.9.0"] } {

Setup ffmpeg ffmpeg-7.1.2.7z ffmpeg.bawt NoLinux32-arm

} else {

Setup ffmpeg ffmpeg-4.4.4.7z ffmpeg.bawt NoLinux32-arm

}

Setup Freetype Freetype-2.13.3.7z Freetype.bawt NoLinux NoDarwin

if { [GetTlsVersion] == 1 } {

Setup libressl libressl-2.9.2.7z libressl.bawt

} else {

Setup openssl openssl-3.5.1.7z openssl.bawt

}

if { [UseVisualStudio "primary"] && [GetVisualStudioVersion] <= 2008 } {

# Visual Studio 2008

Setup SDL SDL-2.0.4.7z SDL.bawt

} elseif { [UseVisualStudio "primary"] && [GetVisualStudioVersion] == 2010 } {

# Visual Studio 2010

Setup SDL SDL-2.0.8.7z SDL.bawt

} else {

Setup SDL SDL-2.26.2.7z SDL.bawt

}

Setup file Tcl_MinimalDist.bawt

# Builds just Tcl and Tk and creates a distribution setup file.

# Setup LibName ZipFile BuildFile BuildOptions

# Tcl and Tk.

Setup Tcl Tcl-[GetTclVersion].7z Tcl.bawt

Setup Tk Tk-[GetTkVersion].7z Tk.bawt

# Tcl/Tk distribution as InnoSetup installer.

Setup InnoSetup InnoSetup-6.2.2.7z InnoSetup.bawt

Setup SetupTcl SetupTcl.7z SetupTcl.bawt

Setup file Tcl_Basic.bawt

# Builds Tcl, Tk, Starkit and Tcl/Tk packages, which do not depend on 3rd party libraries.

# On Windows all libraries can be compiled with MSys/MinGW.

# Setup LibName ZipFile BuildFile BuildOptions

# Tcl/Tk, stubs and manual.

Setup Tcl Tcl-[GetTclVersion].7z Tcl.bawt

Setup TclStubs Tcl-[GetTclVersion].7z TclStubs.bawt

Setup Tk Tk-[GetTkVersion].7z Tk.bawt

Setup TkStubs Tk-[GetTkVersion].7z TkStubs.bawt

Setup TclTkManual TclTkManual.7z TclTkManual.bawt

# Compiled Tcl packages.

Setup argparse argparse-0.61.7z argparse.bawt

Setup critcl critcl-3.3.7z critcl.bawt

Setup expect expect-5.45.4.1.7z expect.bawt NoLinux32-arm

Setup DiffUtil DiffUtil-0.4.3.7z DiffUtil.bawt

Setup memchan memchan-2.3.1.7z memchan.bawt NoTcl9

Setup Mpexpr Mpexpr-1.2.1.7z Mpexpr.bawt

Setup nacl nacl-1.1.1.7z nacl.bawt

Setup nsf nsf-2.4.0.7z nsf.bawt NoTcl9

Setup oratcl oratcl-4.6.1.7z oratcl.bawt

Setup parse_args parse_args-0.5.1.7z parse_args.bawt

Setup poMemory poMemory-1.0.0.7z poMemory.bawt

Setup rl_json rl_json-0.16.0.7z rl_json.bawt

Setup tbcload tbcload-2.0a0.7z tbcload.bawt

Setup tclcompiler tclcompiler-2.0a0.7z tclcompiler.bawt

Setup tcldebugger tcldebugger-2.0.1.7z tcldebugger.bawt

Setup tclcsv tclcsv-2.4.3.7z tclcsv.bawt

Setup tclparser tclparser-1.9.7z tclparser.bawt

Setup tclvfs tclvfs-1.5.0.7z tclvfs.bawt

Setup tclx tclx-9.0.0.7z tclx.bawt

Setup tdom tdom-0.9.6.7z tdom.bawt

Setup trofs trofs-0.4.9.7z trofs.bawt NoTcl9

Setup tserialport tserialport-1.1.1.7z tserialport.bawt MaxParallel=Windows-gcc:1

Setup udp udp-1.0.12.7z udp.bawt NoTcl9

Setup vectcl vectcl-0.2.1.7z vectcl.bawt NoTcl9

# Compiled Tk packages.

Setup Canvas3d Canvas3d-1.2.3.7z Canvas3d.bawt NoTcl9

Setup Img Img-[GetImgVersion].7z Img.bawt

Setup imgtools imgtools-0.3.1.7z imgtools.bawt

Setup itk itk-4.2.5.7z itk.bawt

Setup iwidgets iwidgets-4.1.2.7z iwidgets.bawt

Setup photoresize photoresize-0.2.1.7z photoresize.bawt

Setup poImg poImg-3.0.1.7z poImg.bawt

Setup rtext rtext-0.1.1.7z rtext.bawt NoTcl8

Setup Snack Snack-2.2.12.7z Snack.bawt

Setup Tix Tix-8.4.4.7z Tix.bawt NoDarwin NoTk9

Setup Tkhtml Tkhtml-3.0.2.7z Tkhtml.bawt

Setup tkpath tkpath-0.4.2.7z tkpath.bawt

Setup tko tko-0.4.7z tko.bawt NoDarwin

Setup tksvg tksvg-0.14.7z tksvg.bawt

Setup Tktable Tktable-2.12.7z Tktable.bawt

Setup treectrl treectrl-2.5.2.7z treectrl.bawt Shellicon=ON

# Compiled Tcl and Tk packages. Windows only.

Setup iocp iocp-2.0.2.7z iocp.bawt

if { [GetMajor [GetTclVersion]] < 9 } {

Setup rbc rbc-0.2.0.7z rbc.bawt NoTk9

} else {

Setup rbc rbcTk9-0.2.0.7z rbc.bawt NoTk8

}

Setup shellicon shellicon-0.2.0.7z shellicon.bawt

if { [Is32Bit] && ! [IsGccCompilerNewer "8.1.0"] } {

Setup twapi twapi-5.1.1.7z twapi.bawt

} else {

Setup twapi twapi-5.2.0.7z twapi.bawt

}

Setup winhelp winhelp-1.1.1.7z winhelp.bawt

# Compiled Tcl packages. Darwin only.

Setup Tcladdressbook Tcladdressbook-1.2.4.7z Tcladdressbook.bawt NoTcl9

Setup Tclapplescript Tclapplescript-2.2.7z Tclapplescript.bawt NoTcl9

Setup tclAE tclAE-2.0.7.7z tclAE.bawt NoTcl9

# Pure Tcl/Tk packages.

Setup apave apave-4.4.10.7z apave.bawt

Setup awthemes awthemes-10.4.0.7z awthemes.bawt

Setup BWidget BWidget-1.10.1.7z BWidget.bawt

Setup cawt cawt-3.1.1.7z cawt.bawt

Setup materialicons materialicons-0.2.7z materialicons.bawt

Setup mentry mentry-4.5.7z mentry.bawt

Setup mqtt mqtt-4.0.7z mqtt.bawt

Setup ooxml ooxml-1.10.7z ooxml.bawt

Setup pdf4tcl pdf4tcl-0.9.4.7z pdf4tcl.bawt

Setup pgintcl pgintcl-3.5.2.7z pgintcl.bawt

Setup poLibs poApps-3.2.0.7z poLibs.bawt

Setup publisher publisher-2.0.7z publisher.bawt

Setup puppyicons puppyicons-0.1.7z puppyicons.bawt

Setup ruff ruff-2.6.0.7z ruff.bawt

Setup scrollutil scrollutil-2.6.7z scrollutil.bawt

Setup thtmlview thtmlview-2.0.0.7z thtmlview.bawt

Setup tablelist tablelist-7.7.7z tablelist.bawt

Setup tcl9migrate tcl9migrate-1.0.7z tcl9migrate.bawt

Setup tclargp tclargp-0.2.7z tclargp.bawt

Setup tclfpdf tclfpdf-1.7.2.7z tclfpdf.bawt

Setup tcllib tcllib-2.1.7z tcllib.bawt

Setup tclws tclws-3.5.0.7z tclws.bawt

Setup tkcon tkcon-2.8.7z tkcon.bawt

Setup tklib tklib-0.9.7z tklib.bawt

Setup tsw tsw-1.2.7z tsw.bawt

Setup ukaz ukaz-2.1.7z ukaz.bawt

Setup wcb wcb-4.2.7z wcb.bawt

Setup windetect windetect-2.0.1.7z windetect.bawt

Setup tkwintrack tkwintrack-2.1.1.7z tkwintrack.bawt

# Tclkits.

Setup vlerq vlerq-4.1.7z vlerq.bawt

Setup Tclkit Tclkit.7z Tclkit.bawt

# Tcl programs wrapped as starpacks.

Setup cawtapp cawt-3.1.1.7z cawtapp.bawt

Setup jigsaw jigsaw-2.0.7z jigsaw.bawt

Setup gorilla gorilla-1.6.1.7z gorilla.bawt

Setup tclssg tclssg-3.0.1.7z tclssg.bawt

Setup tkchat tkchat-1.482.7z tkchat.bawt

Setup tksqlite tksqlite-0.5.14.7z tksqlite.bawt

Setup file Tcl_Python.bawt

# Builds binary Python distribution for Windows and tclpy package.

Include "Tcl_Basic.bawt"

# Setup LibName ZipFile BuildFile BuildOptions

Setup Python Python-3.7.7-[GetBits].7z Python.bawt Version=3.7.7

Setup tclpy tclpy-0.4.1.7z tclpy.bawt

Setup file Tcl_Extended.bawt

# Builds Tcl/Tk packages which depend on 3rd party libraries,

# like SWIG, CMake, openssl or image libraries.

Include "Tools.bawt"

Include "BasicLibs.bawt"

Include "Tcl_Basic.bawt"

Include "Tcl_Python.bawt"

# Setup LibName ZipFile BuildFile BuildOptions

#Setup mawt mawt-0.5.0 mawt.bawt NoLinux32-arm Version=0.5.0

Setup mawt mawt-0.5.0.7z mawt.bawt NoLinux32-arm

Setup FTGL FTGL-2.1.3.7z FTGL.bawt NoDarwin

Setup tcl3dExtended tcl3d-1.0.1.7z tcl3dExtended.bawt NoDarwin

Setup OglInfo tcl3d-1.0.1.7z OglInfo.bawt NoDarwin

Setup tkdnd tkdnd-2.9.5.7z tkdnd.bawt

Setup tkribbon tkribbon-1.2.7z tkribbon.bawt

if { [GetTlsVersion] == 1 } {

Setup tcltls tcltls-1.7.23.7z tcltls.bawt

} else {

Setup tcltls tcltls-2.0b1.7z tcltls2.bawt

}

Setup Trf Trf-2.1.4.7z Trf.bawt NoDarwin NoTcl9

Setup imgjp2 imgjp2-0.1.1.7z imgjp2.bawt

Setup tzint tzint-1.1.1.7z tzint.bawt NoUniversal

Setup libgd libgd-2.3.2.7z libgd.bawt

Setup tclgd tclgd-1.4.1.7z tclgd.bawt NoUniversal

Setup tcluvc tcluvc-0.1.7z tcluvc.bawt

Setup cfitsio cfitsio-4.1.0.7z cfitsio.bawt

Setup fitsTcl fitsTcl-2.5.1.7z fitsTcl.bawt

Setup pawt pawt-1.2.0.7z pawt.bawt

Setup libffi libffi-3.4.8.7z libffi.bawt NoUniversal

Setup cffi cffi-2.0.3.7z cffi.bawt NoUniversal

Setup Ffidl Ffidl-0.9.1.7z Ffidl.bawt NoUniversal

# MuPDF (and therefore dependent libraries tclMuPdf and MuPDFWidget)

# are not available with VisualStudio < 2019.

if { ( [UseVisualStudio "primary"] && [GetVisualStudioVersion] < 2019 ) || \

! [IsGccCompilerNewer "4.9.2"] } {

Setup mupdf mupdf-1.18.2.7z mupdf.bawt

Setup tclMuPdf tclMuPdf-2.1.1.7z tclMuPdf.bawt

} else {

Setup mupdf mupdf-1.26.0.7z mupdf.bawt

Setup tclMuPdf tclMuPdf-2.5.1.7z tclMuPdf.bawt

}

Setup MuPDFWidget MuPDFWidget-2.4.7z MuPDFWidget.bawt

Setup hdc hdc-0.2.0.1.7z hdc.bawt

Setup gdi gdi-0.9.9.15.7z gdi.bawt

Setup printer printer-0.9.6.16.7z printer.bawt

# Tcl programs wrapped as starpacks.

Setup BawtLogViewer BawtLogViewer-[GetVersion].7z BawtLogViewer.bawt

Setup poApps poApps-3.2.0.7z poApps.bawt

Setup poClipboardViewer poApps-3.2.0.7z poClipboardViewer.bawt

Setup file Tcl3D.bawt

# Builds the full version of Tcl3D, which depends on

# 3rd party libraries (OpenSceneGraph, SDL, FTGL).

Include "Tcl_Extended.bawt"

Include "OSG_Basic.bawt"

# Setup LibName ZipFile BuildFile BuildOptions

Setup glfw glfw-3.3.8.7z glfw.bawt

Setup tcl3dFull tcl3d-1.0.1.7z tcl3dFull.bawt

Setup file Tcl_Distribution.bawt

# Use this Setup file to create a Tcl/Tk distribution.

# Builds Tcl/Tk with basic package libraries.

# Include "Tcl_Basic.bawt"

# Builds Tcl/Tk with extended package libraries including Tcl3D.

# Include "Tcl3D.bawt"

# Builds Tcl/Tk with extended package libraries.

Include "Tcl_Extended.bawt"

# Setup LibName ZipFile BuildFile BuildOptions

# Tcl/Tk distribution as InnoSetup installer.

Setup InnoSetup InnoSetup-6.2.2.7z InnoSetup.bawt

Setup Redistributables Redistributables.7z Redistributables.bawt

Setup SetupTcl SetupTcl.7z SetupTcl.bawt

Setup SetupPython SetupPython.7z SetupPython.bawt

Setup file OSG_Basic.bawt

# Builds OpenSceneGraph with basic plugin libraries as needed by Tcl3D.

# Setup LibName ZipFile BuildFile BuildOptions

# Tools needed for compilation of libraries.

Setup CMake CMake-3.25.2.7z CMake.bawt

Setup yasm yasm-1.3.0.7z yasm.bawt

# The following libraries can be compiled on Linux, but for OpenSceneGraph

# we use the libraries installed by the Linux distribution.

# Basic library needed by most other libraries.

Setup ZLib ZLib-1.2.13.7z ZLib.bawt NoLinux

Setup xz xz-5.4.1.7z xz.bawt NoLinux NoDarwin

# Image libraries needed by OpenSceneGraph.

Setup giflib giflib-5.2.1.7z giflib.bawt NoLinux

Setup JPEG JPEG-9.e.7z JPEG.bawt NoLinux

Setup PNG PNG-1.6.39.7z PNG.bawt NoLinux

Setup TIFF TIFF-4.5.0.7z TIFF.bawt NoLinux

Setup freeglut freeglut-3.2.2.7z freeglut.bawt NoLinux NoDarwin

Setup Freetype Freetype-2.10.4.7z Freetype.bawt NoLinux

Setup SDL SDL-2.26.2.7z SDL.bawt

Setup ffmpeg ffmpeg-4.4.4.7z ffmpeg.bawt NoLinux32-arm

Setup openjpeg openjpeg-2.5.3.7z openjpeg.bawt

if { [UseVisualStudio "primary"] && [GetVisualStudioVersion] <= 2010 } {

Setup jasper jasper-2.0.14.7z jasper.bawt NoLinux NoDarwin

} else {

Setup jasper jasper-2.0.25.7z jasper.bawt NoLinux NoDarwin

}

Setup libressl libressl-2.9.2.7z libressl.bawt

# OpenSceneGraph 3rd party libraries.

if { [IsGccCompilerNewer "13.0.0"] && ! [IsWindows] } {

Setup curl curl-7.88.1.7z curl.bawt

} else {

Setup curl curl-7.70.0.7z curl.bawt

}

# OpenSceneGraph

Setup OpenSceneGraph OpenSceneGraph-[GetOsgVersion].7z OpenSceneGraph.bawt

Setup OpenSceneGraphData OpenSceneGraphData-3.4.0.7z OpenSceneGraphData.bawt

Setup file OSG_Extended.bawt

# Builds OpenSceneGraph with extended plugin libraries, as

# well as libraries depending on OpenSceneGraph like osgEarth.

Include "OSG_Basic.bawt"

# Setup LibName ZipFile BuildFile BuildOptions

# Extended OpenSceneGraph 3rd party libraries.

Setup Cal3D Cal3D-0.120.7z Cal3D.bawt NoLinux-arm NoLinux-riscv

if { [UseVisualStudio "primary"] && [GetVisualStudioVersion] <= 2013 } {

Setup gdal gdal-2.2.0.7z gdal.bawt

Setup geos geos-3.6.3.7z geos.bawt

} else {

Setup gdal gdal-2.4.4.7z gdal.bawt NoLinux-riscv

Setup geos geos-3.7.2.7z geos.bawt

}

Setup GLEW GLEW-2.2.0.7z GLEW.bawt

Setup Gl2ps Gl2ps-1.4.2.7z Gl2ps.bawt

# Libraries based on OpenSceneGraph.

Setup osgcal osgcal-0.2.1.7z osgcal.bawt NoLinux-arm NoLinux-riscv MaxParallel=Linux:1 MaxParallel=Windows-gcc:1

if { [UseVisualStudio "primary"] && [GetVisualStudioVersion] <= 2008 } {

Setup osgearth osgearth-2.8.7z osgearth.bawt

} else {

Setup osgearth osgearth-2.10.1.7z osgearth.bawt NoLinux-arm NoLinux-riscv

}

Setup file OSG_Distribution.bawt

# Use this Setup file to create an OpenSceneGraph distribution.

# Builds OpenSceneGraph with basic plugin libraries.

# Include "OSG_Basic.bawt"

# Builds OpenSceneGraph with extended plugin libraries, as

# well as libraries depending on OpenSceneGraph like osgEarth.

Include "OSG_Extended.bawt"

# Setup LibName ZipFile BuildFile BuildOptions

# OpenSceneGraph distribution as InnoSetup installer.

Setup InnoSetup InnoSetup-6.2.2.7z InnoSetup.bawt

Setup Redistributables Redistributables.7z Redistributables.bawt

Setup SetupOsg SetupOsg.7z SetupOsg.bawt

Setup file MiscLibs.bawt

# Builds miscellaneous libraries not related to Tcl or OpenSceneGraph.

# Note, that the libraries listed in this file are not updated or

# supported anymore.

Include "Tools.bawt"

Include "BasicLibs.bawt"

# Setup LibName ZipFile BuildFile BuildOptions

if { ( ! [UseVisualStudio "primary"] && [IsWindows] && [IsGccCompilerNewer "12.0.0"] ) || \

( [UseVisualStudio "primary"] && [GetVisualStudioVersion] >= 2022 ) } {

# This boost version can only be compiled with

# Windows: VS 2022 or newer.

# Windows: gcc 12.0.0 or newer

Setup Boost Boost-1.78.0.7z Boost.bawt

} elseif { ( [UseVisualStudio "primary"] && [GetVisualStudioVersion] >= 2015 ) || \

( ! [UseVisualStudio "primary"] && [IsWindows] ) || \

( ! [IsWindows] && [IsGccCompilerNewer "4.9.0"] ) } {

# This boost version can only be compiled with

# Windows: VS 2015 or newer.

# Unix : gcc 4.9.0 or newer

Setup Boost Boost-1.75.0.7z Boost.bawt

} else {

# This boost version cannot be compiled with MinGW gcc.

Setup Boost Boost-1.58.0.7z Boost.bawt

}

Setup ccl ccl-4.0.6.7z ccl.bawt

Setup Eigen Eigen-3.3.9.7z Eigen.bawt

Setup fftw fftw-3.3.9.7z fftw.bawt

if { [UseVisualStudio "primary"] && [GetVisualStudioVersion] <= 2013 } {

Setup GeographicLib GeographicLib-1.50.1.7z GeographicLib.bawt

} else {

Setup GeographicLib GeographicLib-1.52.7z GeographicLib.bawt

}

Setup GeographicLibData GeographicLibData.7z GeographicLibData.bawt

Setup KDIS KDIS-2.9.0.7z KDIS.bawt

Setup libxml2 libxml2-2.10.3.7z libxml2.bawt

Setup sqlite3 sqlite3-3.47.1.7z sqlite3.bawt

Setup tinyxml2 tinyxml2-9.0.0.7z tinyxml2.bawt

Setup Xerces Xerces-3.2.4.7z Xerces.bawt

Setup file WinTools.bawt

# Builds miscellaneous tools for Windows.

# Setup LibName ZipFile BuildFile BuildOptions

Setup Blender Blender-3.0.0.7z Blender.bawt

Setup DirectXTex DirectXTex-2021_11.7z DirectXTex.bawt

Setup Doxygen Doxygen-1.8.15.7z Doxygen.bawt

Setup Vim Vim-9.0.0.7z Vim.bawt

3.3 Build Files

Build files include the logic needed to extract, configure, compile and distribute a library. They must define the following two procedures, where libName is replaced with the name of the library as specified as first parameter of the Setup procedure:

· Init_libName { libName libVersion }

· Build_libName { libName libVersion buildDir instDir devDir distDir }

The parameter values for these procedures are supplied by the BAWT framework.

libName	Library name as supplied with first parameter of procedure Setup.
libVersion	Library version extracted from source file name as supplied with second parameter of procedure Setup.
buildDir	[file join [GetOutputBuildDir] $libName]
instDir	[file join [GetOutputInstDir] $libName]
devDir	[GetOutputDevDir]
distDir	[GetOutputDistDir]

The logic of a Build file will be explained with the following excerpt of the Build file of Tcl package udp:

Build file udp.bawt

# Copyright: 2016-2025 Paul Obermeier (obermeier@tcl3d.org)

# Distributed under BSD license.

# BuildType: MSys / gcc

proc Init_udp { libName libVersion } {

SetScriptAuthor $libName "Paul Obermeier" "obermeier@tcl3d.org"

SetLibHomepage $libName "https://core.tcl-lang.org/tcludp/"

SetLibDependencies $libName "Tcl"

SetPlatforms $libName "All"

SetWinCompilers $libName "gcc"

}

proc Build_udp { libName libVersion buildDir instDir devDir distDir } {

if { [UseStage "Extract" $libName] } {

ExtractLibrary $libName $buildDir

}

if { [UseStage "Configure" $libName] } {

set flags ""

set cflags ""

append cflags [GetPermissiveCFlags] " "

append cflags [GetDarwinCFlags] " "

if { [string trim $cflags] ne "" } {

append flags "CFLAGS='$cflags' "

}

TeaConfig $libName $buildDir $instDir $flags

}

if { [UseStage "Compile" $libName] } {

MSysBuild $libName $buildDir "install-binaries"

}

if { [UseStage "Distribute" $libName] } {

StripLibraries "$instDir"

LibFileCopy "$instDir" "$devDir/[GetTclDir]" "*" true

LibFileCopy "$instDir" "$distDir/[GetTclDir]" "*" true

}

return true

}

The Init_libName procedure must call the following BAWT framework procedures:

SetScriptAuthor	Specify name and mail address of the build script author. This information is used for command line option --authors.
SetLibHomepage	Specify the homepage of the library. This information is used for command line option --homepages.
SetLibDependencies	Specify the dependencies of the library. If the library has no dependencies, specify “None” as parameter. Otherwise, a variable number of library names can be given. This information is used for command line option --dependencies.
SetPlatforms	Specify the supported platforms. Valid keywords are: “Windows” “Linux” “Darwin” “All”. This information is used for command line option --platforms.
SetWinCompilers	Specify the supported compilers on Windows. Optional. The first specified compiler is used as default. Valid keywords are: “gcc” “vs”. This information is used for command line option --wincompilers.

The Build_libName procedure must check, which stage or stages should be executed (using procedure UseStage) and supply appropriate Tcl commands for each stage.

The following four stages can be handled in a build file:

· Extract

· Configure

· Compile

· Distribute

See chapter 4 Build Stages for details on these stages and typical commands executed for each stage.

Errors can be indicated by calling the BAWT procedure SetErrorMessage and returning false.

Optionally a procedure named Env_libName may be specified in a build file. This procedure has the same signature as the Build_libName procedure and may be used to specify library specific environment variables (using BAWT procedure SetEnvVar) or to add a value to the system environment variable Path (using BAWT procedure AddToPathEnv).

The following excerpt from the Tcl build file shows a usage example:

proc Env_Tcl { libName libVersion buildDir instDir devDir distDir } {

SetEnvVar "TCLLIBPATH" "$devDir/[GetTclDir]/lib"

AddToPathEnv "$devDir/opt/$libName/bin"

}

Another optional procedure named Test_libName was introduced in BAWT 3.0. This procedure has the same signature as the Build_libName procedure and may be used to execute test scripts using command line option --test.

The following excerpt from the Tcl build file shows how to execute the Tcl test suite by calling BAWT procedure MSysTest:

proc Test_Tcl { libName libVersion buildDir instDir devDir distDir } {

if { [UseStage "Test" $libName] } {

MSysTest $libName $buildDir "test"

}

return true

}

It is also possible to execute a shell test script instead of MSysTest:

proc Test_poApps { libName libVersion buildDir instDir devDir distDir } {

if { [UseStage "Test" $libName] } {

if { [IsUnix] } {

MSysRun $libName "Test$libName" "$buildDir/TestPrograms" "./RunTests.sh"

} else {

DosRun $libName "Test$libName" "$buildDir/TestPrograms" "RunTests.bat"

}

return true

}

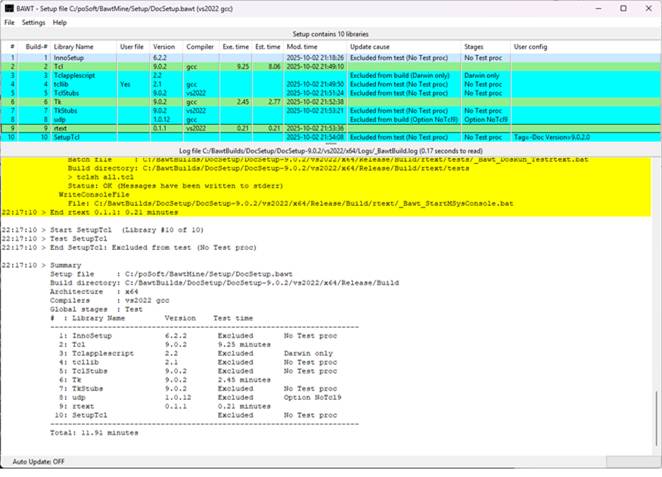

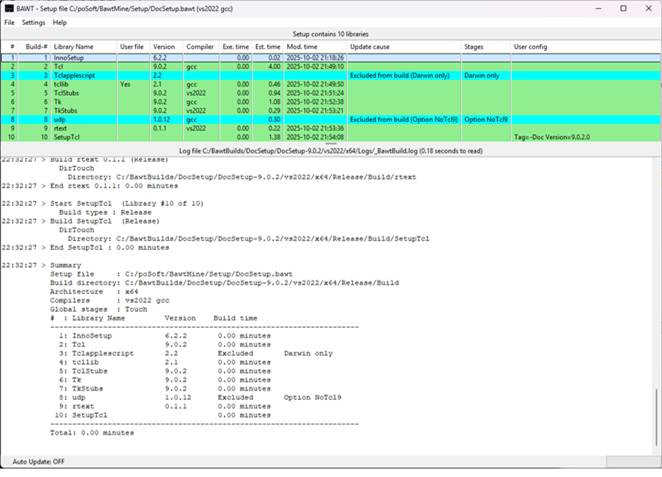

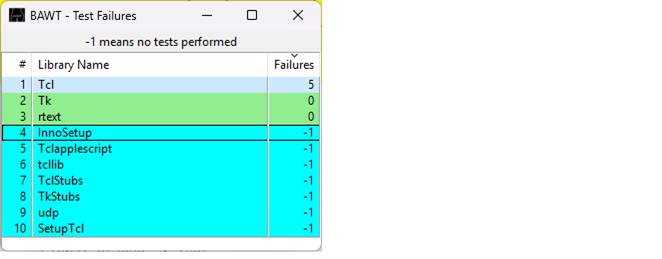

If using the graphical log viewer, the test mode is automatically detected and the display of test results is switched on, as shown in the next figure.

3.3.1 User supplied build files

BAWT version 2.0 introduced the functionality of user supplied build files, which allows to add custom build files for existing libraries without the need to change the default build files.

To create a user supplied build file, make a copy of the build file (ex. tcllib.bawt) and give the copied file the name tcllib_User.bawt. By appending the string _User to the root file name, BAWT automatically detects the file as a user supplied build file and uses this file instead of the original build file.

You can then edit the user supplied build file according to your needs, ex. do not create the critcl based modules for tcllib.

The user supplied build scripts must be located in directories from the library search paths, see chapter 3.1.3 Directory access.

Note, that user supplied build scripts are not considered in action --update, see chapter 5 Build Process.

You may also give the user supplied build file any name you like. Then you have to notify BAWT to use that file for a specific library by using command line option --user.

If you do not want to use the user supplied files, there is no need to delete or rename them. Specify command line option --nouserbuilds to disable all user build files.

If using the graphical log viewer, the application of a user supplied build file is indicated in column User, see library tcllib in next figure.

3.3.2 User configurable build files

Some of the library build files are already setup to supply user configuration options. These configuration options can be supplied using the following methods:

As command line option --copt

As option string of the Setup procedure, see chapter 3.2 Setup Files

The following build scripts currently support user configuration options:

Build script	User options
Tcl.bawt	Build static tclsh: Static=ON\|OFF. Default: OFF.
Tk.bawt	Build static wish: Static=ON\|OFF. Default: OFF.

Build script	User options
SetupOsg.bawt	Tag string for generated Setup file name: Tag=XXX Version string used for InnoSetup: Version=XXX
SetupPython.bawt
SetupTcl.bawt

The following example using Tcl version 9.0.2

--copt SetupTcl 'Tag=-BI' --copt SetupTcl 'Version=9.0.2.0'

generates an InnoSetup file with the following name:

SetupTcl-BI-9.0.2-x64_Bawt-3.2.0.exe

Build script

User options

SetupTcl.bawt

Setup type for Linux: Linux=tar|deb. Default: tar.

Setup type for Darwin: Darwin=tar|dmg. Default: tar.

Example creating Debian distribution files on Linux and DMG files on Darwin :

--copt SetupTcl 'Linux=deb' –copt SetupTcl 'Darwin=dmg'

Note, that on Windows only InnoSetup distributions are supported. For a description of the different Unix setup types, see the section regarding creation of software distribution files in chapter 5.1.4 Use the generated libraries.

Build script

User options

tcl3dFull.bawt

Use static SDL library: StaticSDL=ON|OFF. Default: OFF.

Currently only supported for Visual Studio builds.

Example:

--copt tcl3dFull 'StaticSDL=ON'

Build script

User options

tcllib.bawt

Toggle critcl based compilation: Critcl=ON|OFF. Default: ON.

Build dtplite starpack on Windows: Dtplite=ON|OFF. Default: ON.

Example:

--copt tcllib 'Critcl=OFF'

Build script	User options
tcltls.bawt	Toggle hardening: Hardening=ON\|OFF. Default: ON.

Example:

--copt tcltls 'Hardening=OFF'

If tcltls is compiled with hardening set to ON, it is compiled with option -fstack-protector-all, which needs the libssp-0.dll library. That library is automatically copied into the Tcl/bin directory. Starting with gcc 13, the stack protector library is automatically linked statically.

If hardening is set to OFF, tcltls does not need this external dependency.

Build script	User options
SWIG.bawt	Add Tcl dependency for SWIG test-suite: AddTcl=ON\|OFF. Default: OFF.

Example:

--copt SWIG 'AddTcl=ON'

Build script

User options

OpenSceneGraph.bawt

Toggle example compilation:

-DBUILD_OSG_EXAMPLES=ON|OFF. Default: OFF.

Keep the plugin directory structure:

KeepPluginFolder=ON|OFF. Default: OFF.

Example:

--copt OpenSceneGraph '-DBUILD_OSG_EXAMPLES=ON'

Build script

User options

osgearth.bawt

Toggle example compilation:

-DBUILD_OSGEARTH_EXAMPLES=ON|OFF. Default: OFF.

Example:

--copt osgearth '-DBUILD_OSGEARTH_EXAMPLES=ON'

4 Build Stages

This chapter describes the stages used in the BAWT framework to build the libraries specified in a Setup file.

The stages are grouped into global and library specific ones. The global stages Bootstrap, Setup and Finalize are called only once per BAWT execution, the library specific stages are called once for each library.

Four of the library specific stages (Extract, Configure, Compile, Distribute) are user configurable. Actions for these stages must be specified in the library Build files.

4.1 Stage Bootstrap

Extract and copy bootstrap tools.

This stage is executed automatically on each invocation of Bawt.tcl.

It is not executed, if command line option --list is specified.

BAWT needs the 7-Zip program to extract the library source distributions. For Windows and Darwin, a version of the 7-Zip program is included in the BAWT framework. On Linux 7-Zip is typically already available with the operating system or can be installed as Linux package p7zip or p7zip-full.

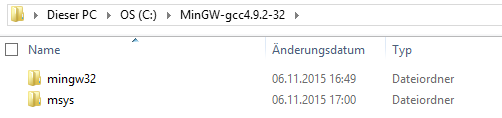

On Windows lots of the libraries are built with the MSYS/MinGW suite. Different versions of MSYS/MinGW are available on the BAWT download site.

Command line options influencing this stage:

--gccversion

--architecture

--toolsdir

The 7-Zip distribution itself must be compressed with standard ZIP, so that it can be extracted with the vfs::zip package contained in the tclkit. All other tools and libraries are compressed in 7-Zip format because of better compression rates (Example: MSYS/MinGW is 2 times smaller with 7z).

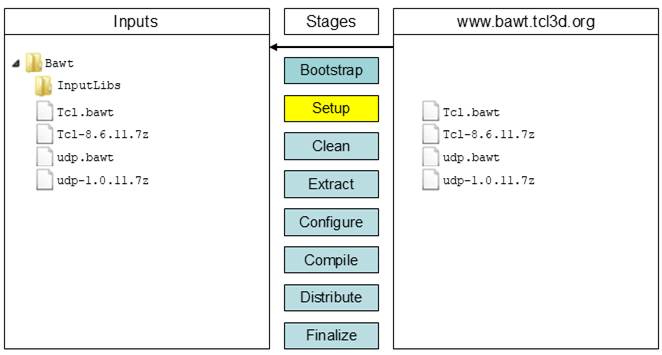

4.2 Stage Setup

Read and execute the specified Setup file.

This stage is executed automatically on each invocation of Bawt.tcl.

Check for existence of the library source code (either as a 7z file or directory) as well as the according Build file. If these do not exist in the library directory InputLibs of the current working directory (additional directories can be added with command line option --libdir) or are older than those available on the BAWT website, they are downloaded from the BAWT website.

If this fails, a fatal error is thrown and the build process is stopped.

The version number of the library is extracted from the file or directory name of the library.

If build action is set to Update, the necessary build stages are determined according to the existence of the library source and Build files as well as to the modification times of the corresponding build and install directories.

Checking for newer versions and automatic downloading may be skipped by specifying command line option --noonline.

Command line options influencing this stage:

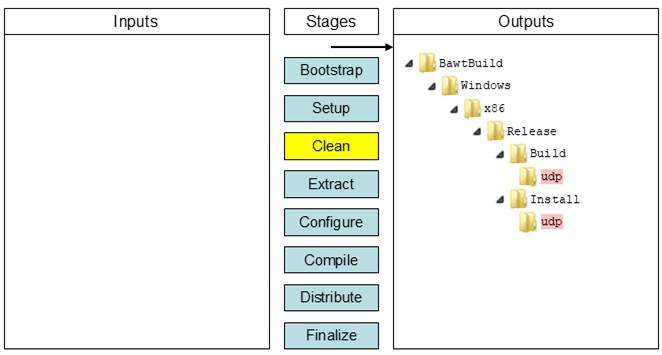

4.3 Stage Clean

Remove library specific build and install directory.

Command line options influencing this stage:

--clean

--timeout

4.4 Stage Extract

Extract library source code into build directory.

In stage Extract the library source code will be extracted and copied into the build directory. This is achieved by calling the BAWT procedure ExtractLibrary, which cares about having either a source directory or a compressed source file.

Ideally the source code can be compiled without any changes. If changes have to be done, it is preferred not to edit the source code manually, but make the changes in the build script after extraction.

BAWT has two utility procedures for this purpose:

· ReplaceLine

· ReplaceKeywords

Command line options influencing this stage:

--extract

4.5 Stage Configure

Configure library for compilation.

In stage Configure the library will be configured, which generates the appropriate make files for the chosen compiler and platform.

The following high-level BAWT procedures are available for configuration tasks:

· CMakeConfig when using the CMake build infrastructure.

· MSysConfig when using a configure script with “standard” options.

· TeaConfig when using the Tcl Extension Architecture for Tcl packages.

See the source code of Bawt.tcl to get the default options set by these procedures.

If the build infrastructure does not fit any of the mentioned one above, the configuration command must be built up as a Tcl string and executed with the generic BAWT procedure MSysRun.

See the miscellaneous build scripts for usage examples.

The following BAWT procedures are typically used for configuration tasks:

· IsIntel

· IsArm

· IsRiscV

· IsDebugBuild

· IsReleaseBuild

· IsWindows

· IsLinux

· IsDarwin

· IsUnix

Command line options influencing this stage:

4.6 Stage Compile

Compile and install library.

In stage Compile the library will be compiled and installed.

The following high-level BAWT procedures are available for compilation tasks:

· CMakeBuild when using the CMake build infrastructure.

· MSysBuild when using the Tcl Extension Architecture for Tcl packages.

If the build infrastructure does not fit any of the two mentioned above, the compilation command must be built up as a Tcl string and executed with either BAWT procedure MSysRun or DosRun.

Command line options influencing this stage:

4.7 Stage Distribute

Copy relevant files into developer and user distribution directories.

In stage Distribute the library will be copied into the distribution and development directories.

The following BAWT procedures are typically used for distribution tasks:

· SingleFileCopy

· MultiFileCopy

· LibFileCopy

· FileRename

· UseTclPkgVersion

· IsDebugBuild

· IsReleaseBuild

· IsWindows

· IsLinux

· IsDarwin

· IsUnix

· ErrorAppend

Command line options influencing this stage:

--distribute

--noversion

4.8 Stage Finalize

Perform final actions, optionally call user supplied Finalize procedure and print summary.

The Finalize stage is performed automatically at the end of the build process or can be manually selected with command line option --finalize.

The Finalize stage creates an environment file in the Development/bin directory called SetEnv-*.bat or SetEnv-*.sh. It contains all the environment variables set by the Env_libName procedures of the libraries.

If running on Windows with Visual Studio it also copies the appropriate Visual Studio runtime libraries into the Development/bin directory. If you do not want to copy these runtime libraries, use command line option --noruntimelibs.

To supply a user defined finalize action to BAWT, create a file containing a procedure named Finalize.

See the file UserFinalize.tcl in BAWT directory Setup as an example.

You can use any standard Tcl procedure or one of the BAWT procedures like Log or MultiFileCopy in the Finalize procedure.

To make the file containing your Finalize procedure available for the BAWT build process, use command line option --finalizefile.

Command line options influencing this stage:

--finalize

--finalizefile

--noruntimelibs

4.9 Stage Test

Perform test scripts as specified in procedure Test_libName.

See the section regarding test procedures Test_libName in chapter 0

Build Files.

The Test stage must be manually selected with command line option --test.

5 Build Process

This chapter gives insight into the BAWT build process from the perspective of a user of BAWT as well as from the perspective of a developer, who wants to extend BAWT with new libraries.

5.1 User Perspective

As described in the previous chapter a specific stage can be executed with one of the following command line action options. These specific action options are typically only used when integrating a new library into BAWT.

--clean : Clean library specific build and install directories.

--extract : Extract library source from a ZIP file or a directory.

--configure : Perform the configure stage of the build process.

--compile : Perform the compile stage of the build process.

--distribute: Perform the distribution stage of the build process.

--finalize : Generate environment file and call user supplied Finalize procedure.

The following global command line action options are typically used for building or updating the BAWT libraries.

--complete : Perform the following stages in order:

clean, extract, configure, compile, distribute, finalize.

--update : Perform necessary stages depending on modification times.

Note: Global stage finalize is always executed.

--simulate : Simulate update action without actually building libraries.

--touch : Set modification times of library build directories to current time.

Option --complete makes a complete rebuild of the specified libraries, while --update checks, which libraries have to be rebuilt.

The necessary build stages are determined according to the existence of the library source and Build files as well as to the modification times of the corresponding build directories.

It is also checked, if the build of a library has been cancelled or stopped by checking for the existence of a so-called Progress File, which is created in the Logs directory at the start of a library build and deleted after a successful library build.

Additionally, a check is performed, if a library is dependent of another library, which has been rebuilt. This recursive dependency checking can be switched off with command line option --norecursive.

The --simulate option performs the same actions as the --update option, but does not build anything. It just prints out, which libraries would be rebuilt, if you would execute the --update command line option.

It often happens, that only cosmetic changes are done to a Build file, which would cause this library (and all dependent libraries) to be rebuilt. To avoid rebuilding of these libraries, specify the option --touch, which sets the modification times of the build directories to the current date and time.

5.1.1 Use Case: Cosmetic change of Build file Tcl.bawt

Due to the number of dependencies, a change of Build file Tcl.bawt would cause a lot of libraries to be rebuilt, as the next screenshot of the BawtLogViewer shows, when executing a --simulate run.

To avoid the rebuild of all of these libraries, which may take a lot of time, we execute a --touch run. Note the execution of the DirTouch procedure of the BAWT framework shown in the text widget in the lower half of the window.

If we now perform an --update run, none of the libraries are rebuilt.

5.1.2 Compiler selection on Windows

On Linux and Darwin only the gcc compiler suite is supported.

On Windows gcc and Visual Studio are supported. Some packages can be compiled only with gcc or only with Visual Studio. More and more libraries can be compiled with either gcc or Visual Studio.

Starting with version 2.0, BAWT supports the notion of primary and secondary compilers on Windows.

Which compilers are supported by a build script is indicated with BAWT procedure SetWinCompilers.

proc Init_tkdnd { libName libVersion } {

SetScriptAuthor $libName "Paul Obermeier" "obermeier@tcl3d.org"

SetLibHomepage $libName "https://github.com/petasis/tkdnd"

SetLibDependencies $libName "CMake" "Tk"

SetPlatforms $libName "All"

SetWinCompilers $libName "gcc" "vs"

}

The above call of SetWinCompilers indicates, that the library can be compiled by both Visual Studio and gcc.

To see, which Windows compilers are supported, use the --wincompilers command line option or look for that information in the corresponding build files.

To determine, which compiler should be used in an actual compilation, there is the possibility to specify the compiler using command line option --compiler.

This option has been extended to not only accept gcc or vs20XX as arguments, but also a combination of both using a plus sign as separator, ex. gcc+vs2019.

If a library does not support the Windows compiler selected when calling BAWT, then that library is excluded from the build. The log file contains a message like the following:

15:02:30 > Start Boost 1.58.0 (Library #2 of 137)

Build types : Release

15:02:30 > End Boost: Excluded from build (Compiler gcc not supported)

Behaviour before BAWT version 2.0:

If the chosen Windows compiler is Visual Studio, but the package only supports gcc, the gcc compiler was automatically chosen as secondary compiler, as the MSYS/MinGW suite is part of BAWT and therefore always available. The other way is not supported, as a Visual Studio compiler may not be available.

The following 3 options of choosing a compiler on Windows were available up to BAWT version 1.3.0.

BAWT 1.3.0	Command line option --compiler	SetWinCompilers
BAWT 1.3.0		gcc	vs	gcc vs
Option 1	Not specified	gcc	Excluded	gcc
Option 2	--compiler gcc	gcc	Excluded	gcc
Option 3	--compiler vs20XX	gcc	vs	vs

Behaviour since BAWT version 2.0:

With BAWT 2.0 two new options have been added, which specify the primary and secondary compiler.

BAWT 2.0.0	Command line option --compiler	SetWinCompilers
BAWT 2.0.0		gcc	vs	gcc vs
Option 1	Not specified	gcc	Excluded	gcc
Option 2	--compiler gcc	gcc	Excluded	gcc
Option 3	--compiler vs20XX	Excluded	vs	vs
Option 4	--compiler gcc+vs20XX	gcc	vs	gcc
Option 5	--compiler vs20XX+gcc	gcc	vs	vs

Options 1 and 2 work the same way as they did in BAWT versions before 2.0. Option 3 now does not compile packages supporting only gcc. This behaviour can now be achieved by specifying Option 4 (vs20XX+gcc).

To support this new functionality, several incompatible changes had to be implemented:

New procedures	Removed procedures
SetCompilerVersions	GetVSCompilerVersionNumber
GetCompilerVersions	IsVSCompilerNewer
UseVisualStudio	IsVSCompiler
GetVisualStudioVersion	SetForceVSCompiler
NeedDll2Lib	ForceVSCompiler

Procedure GetCompilerVersion now has a changed and extended signature.

Compilation of Tcl/Tk and all supported Tcl packages (everything included in Setup files Tcl_Basic.bawt and Tcl_Extended.bawt) is possible without using Visual Studio with the exception of building Visual Studio compatible Tcl and Tk stub libraries. Those stub libraries can only be compiled using Visual Studio.

To generate Visual Studio compatible Tcl and Tk import libraries (*.lib) the BAWT procedure Dll2Lib is used. It creates the import library from the DLL by using the link.exe program, which is part of Visual Studio.

If Visual Studio is not available, a warning message like the following is issued:

Warning > Dll2Lib tk86.lib: Creating import libraries needs VisualStudio

To avoid these warnings, add command line option --noimportlibs, if Visual Studio is not available or import libraries are not needed.

5.1.3 Online updates of libraries

If using the online update functionality, it is recommended that the local BAWT version is identical to the remote version on the BAWT server. If the local major or minor version is older than the remote version, a fatal error is generated:

FATAL > Remote major version 3.2.0 different to major local version 2.3.0

If only the patch version differs, a warning is issued.

You are able to download with different local and remote versions by specifying the --noexit command line option, but this is not recommended.

To have a consistent set of library versions or if using BAWT on a computer without internet connection, use the command line option --noonline to avoid checking for updates and automatic downloading of new libraries.

5.1.4 Use the generated libraries

To use the generated libraries, the following possibilities exist:

· Manually copy the appropriate directory.

· Use the Finalize procedure.

· Create a software distribution setup file

Manually copy the appropriate directories

Copy the appropriate directories from either the Distribution or Development directory to a suitable location on your computer.

For example, after executing the Setup file Tcl_Basic.bawt to generate a Tcl distribution for Windows, copy output directory Development\opt\Tcl to C:\Tcl and set the environment variables PATH and TCLLIBPATH.

Note, that the entries of the PATH variable on Windows are separated by semicolons (;). The entries of variable TCLLIBPATH are separated by spaces and directory paths must use slashes (/) instead of backslashes (\).

On Unix the environment variables are typically set in the shell resource file, ex. .bashrc:

Use the Finalize procedure

Instead of doing the copy manually, it is easier and faster to do the copying in the Finalize stage. The BAWT framework contains a template Finalize file Setup/UserFinalize.bawt, which is shown below.

Adapt the installation paths according to your local needs.

# Example script for user supplied Finalize procedure.

# The procedure copies the generated Tcl distribution

# from the Development folder into a folder specified

# in your Path environment variable.

# You have to adapt the installation paths (tclRootDir)

# according to your needs.

# To execute the Finalize procedure, the name of this file

# must be specified on the BAWT command line with option

# "--finalizefile".

proc Finalize {} {

Log "Finalize (User defined)"

# For safety reasons this is just a dummy mode.

# Remove the next lines to enable functionality.

if { 1 } {

Log "Finalize Dummy mode" 2 false

return

}

if { [IsWindows] } {

set tclRootDir "C:/opt"

} elseif { [IsLinux] } {

set tclRootDir "~/opt"

} elseif { [IsDarwin] } {

set tclRootDir "~/opt"

} else {

ErrorAppend "Finalize: Cannot determine operating system" "FATAL"

}

set tclInstDir [file join $tclRootDir "Tcl"]

Log "Installing Tcl into $tclInstDir" 2 false

DirDelete $tclInstDir

MultiFileCopy [file join [GetOutputDevDir] [GetTclDir]] $tclInstDir "*" true

}

Create a software distribution setup file

There are currently three Build files to create software distribution setup files:

· SetupTcl.bawt to create a Tcl Batteries-Included software distribution

· SetupPython.bawt to create a Python software distribution

· SetupOsg.bawt to create an OpenSceneGraph software distribution

These scripts take all contents of the Release/Distribution directory and create a software distribution setup file. This setup file is created with InnoSetup on Windows and as a simple, self-extracting shell script for Unix platforms.

The SetupTcl.bawt script also supports creation of Debian distribution files using user configuration option Linux=deb on Debian and Ubuntu. On Darwin a DMG software distribution file can be created using user configuration option Darwin=dmg.

The software distribution setup file itself is generated in the Release/Distribution directory.

The software distribution setup file name for Tcl/Tk has the Tcl version, the architecture and the BAWT version used to build the distribution encoded into the file name.

Example: SetupTcl-BI-8.6.17-x64_Bawt-3.2.0.exe

The software distribution setup file name for OpenSceneGraph has the OSG version, the compiler version, the architecture and the BAWT version used to build the distribution encoded into the file name.

Example: SetupOsg-3.4.1-vs2013-x64_Bawt-3.2.0.exe

In the same directory as the distribution setup files, text files named SetupTcl-8.6.17.txt resp. SetupOsg-3.4.1.txt are created, which list the contents of the software distribution setup file.

This list is used to display the contents of the InnoSetup based distribution setup file, see the following screenshot for an example.

For Unix (Linux and Darwin) a simple shell script-based distribution setup file is generated. If called without arguments, a simple usage message is displayed.

> ./SetupTcl-BI-8.6.17-x64_Bawt-3.2.0.sh

Usage: SetupTcl-BI-8.6.17-x64_Bawt-3.2.0.sh InstallationDirectory

Install folder Tcl into specified installation directory

If called with a not existing installation directory path, an error message is printed onto standard output.

> ./SetupTcl-BI-8.6.17-x64_Bawt-3.2.0.sh asdf

Installation directory asdf does not exist.

Check name or create manually.

If called with a valid installation directory, the contents are extracted into that directory and a message on how to set the needed environment variables is printed onto standard output.

> ./SetupTcl-BI-8.6.17-x64_Bawt-3.2.0.sh ~/bin

Extracting Tcl into /home/obermeier/bin ...

Add the following lines to your shell resource file (ex. ~/.bashrc):

export PATH="/home/obermeier/bin/Tcl/bin:$PATH"

export TCLLIBPATH="/home/obermeier/bin/Tcl/lib $TCLLIBPATH"

Debian .deb distribution files can be used to install a Bawt-Tcl distribution on Linux system supporting the dpkg format. The Tcl distribution will be installed into directory /opt, which conforms to the Debian standards for custom packages. If you want to change that path, adapt the corresponding line in script SetupTcl.bawt. The control file for the Debian package manager is contained in file SetupTcl.7z (DEBIAN/control).

Disk Image Files (DMG) can be used on MacOS to install a Bawt-Tcl distribution by dragging the Tcl distribution directory from the mounted DMG image and following the instructions in the Readme.txt file.

5.1.5 Change icons of executables

To change the icon of the generated tclkits and starpacks as well as the information shown about an executable on Windows (Resource), two command line options exist in the BAWT framework:

· --iconfile

· --resourcefile

The user supplied icon and resource files can be either located in the Resources directory. Then it is sufficient to just specify the name of the files. If the files are located at other places, the path name of the files must be absolute.

Use the icon file poSoft.ico and resource file poSoft.rc supplied by BAWT in directory Resources as starting point for your adapted ones.

If specifying your own resource file, do not change the name of the icon file in the following line of your resource file:

tk ICON DISCARDABLE "tclkit.ico"

The name must always be tclkit.ico.

If specifying a user supplied icon file with command line option --iconfile, the icon file will be copied into the build directory Tclkit/kbskit/win and renamed to tclkit.ico, so that it is possible to only specify an icon file without specifying a resource file.

Changes to the used icon and resource file are not considered by the BAWT update check process, so if using these options, it is necessary to at least rebuild package tclkit and its dependencies.

5.1.6 Sign executables

Signing executables is currently only available on Windows and needs program signtool.exe, which is part of Visual Studio.

Signing of executables is done by calling procedure SignExecutables in a build script. This call is typically done in the Distribution stage. See build file BawtLogViewer.bawt for an example.

There are two command line options controlling the signature process:

--certfile (mandatory)

--timestampurl (optional)

Directory Resources contains a self-signed certification file poSoft.cer, which is used for the BAWT distributions.

5.1.7 Parallel builds

All build environments used by BAWT support parallel compilation. The number of parallel build jobs can be specified globally for all libraries with command line option --numjobs.

Alternatively, the number of parallel build jobs can be restricted for specific libraries as additional parameter MaxParallel in the Setup procedure. See chapter 3.2 Setup Files for a description of the Setup procedure and its parameters.

The following libraries consistently produce deadlocks when executed in parallel, so the number of parallel jobs is already limited in the corresponding BAWT Setup files by specifying option MaxParallel=Windows-gcc:1.

· CERTI

· PNG

· osgcal

· tserialport

Other libraries which occasionally tend to deadlock are the following:

· freeglut

· gdal

· geos

· openjpeg

· OpenSceneGraph

· osgearth

· SDL

Deadlocks have occurred until now only on Windows using the gcc compiler.

As reference point, the next table shows typical build times on my laptop for libraries needing 2 minutes or more. The laptop is equipped with an Intel QuadCore i7-4700 2.4Ghz with HyperThreading. 8 parallel compile jobs have been used.

Estimated build time	Libraries
~ 2 minutes	ccl libgd libwebp SetupTcl xz
~ 3 minutes	geos kdis TIFF
~ 4 minutes	SWIG tcltls tcl3dFull
~ 5 minutes	gdal Tclkit Xerces
~ 6 minutes	curl gdal libressl Tcl
~ 7 minutes	boost ffmpeg Img
~ 9 minutes	fftw
~ 25 minutes	osgearth
~ 35 minutes	OpenSceneGraph

5.2 Developer Perspective

5.2.1 Upgrade a library

If you want to use a new version of a library already supported by BAWT, chances are high, that the existing build scripts still work with the new version.

So just pack the sources of the new version into a 7z file and edit the corresponding entry in the Setup file. Also check the comments of the library build script regarding manual changes to the source code.

If the library is a Tcl package, you might get warnings from the Starpack build scripts. This indicates, that you will have 2 different versions in the Tcl library directory, which might lead to troubles.

The following warnings are issued, when upgrading library tablelist 6.20 to tablelist 6.22:

MakeStarpack: Found more than 1 package with prefix tablelist*:

TclBasic-8.6.17/vs2019/x64/Development/opt/Tcl/lib/tablelist6.20

TclBasic-8.6.17/vs2019/x64/Development/opt/Tcl/lib/tablelist6.22

So, when upgrading one or more libraries, you should either remove the development and distribution directories and do a fresh rebuild. The other possibility is to search for the directories of the old version (tablelist6.10 in the above example) and just remove these directories from the development and distribution directory.

Another option is to use command line option --noversion, which strips the version number from the names of Tcl package directories.

5.2.2 Add a library

Library sources should be specified either as a directory named $libName-$libVersion or as a compressed file named $libName-$libVersion.7z.

libName must not contain a “-“ character, because this character is used to separate the library name from the version string.

It is easily possible to extend the libraries compiled by BAWT with COTS software, ex. company specific libraries. One possibility is to just add these libraries into the InputLibs directory of the standard BAWT distribution. The better solution is to create a separate directory (ex. BawtMine), which holds your libraries in a similar structure like BAWT does. In this directory you create adapted versions of the batch scripts (ex. MyBuild-Windows.bat) and add Setup files, which reference your libraries as well as libraries of the standard BAWT distribution.

If you want to use a library, which is currently under development, it is possible to add the directory containing the local checkout of the library.

The following example shows the Setup file mawtSvn.bawt used to compile the current version of MAWT from my local SVN checkout.

Include "Tools.bawt"

Include "BasicLibs.bawt"

Include "Tcl_Basic.bawt"

if { [IsWindows] } {

set dirName C:/poSoft/Mawt

} elseif { [IsLinux] } {

set dirName /home/obermeier/poSoft/Mawt

} else {

set dirName /Users/obermeier/poSoft/Mawt

}

Setup mawt $dirName mawt.bawt Version=0.4.0

Note, that the checkout directory typically has no version number in it, so the version number is specified as optional argument of the Setup procedure.

5.2.3 Add a Tcl program

Adding a Tcl program is similar to adding a library, i.e. the sources must be supplied as a compressed file as well as a corresponding Build script.

The Tcl program will be created as as starpack, i.e. a standalone executable containing the Tcl interpreter (tclkit), the program scripts as well as needed Tcl packages.

To ease the generation of starpacks, the BAWT framework offers procedures MakeStarpackTcl and MakeStarpackTk for this purpose. Use MakeStarpackTcl, if you want to create a console program, and MakeStarpackTk, if you want to create a program with a graphical Tk user interface.

proc MakeStarpackTcl { appScript appName starpackName buildDir args }

appScript	Full path to the startup script of the Tcl program.
appName	The name of the application. Typically $libName.
starpackName	The name of the starpack executable. Typically $libName[GetExeSuffix].
buildDir	The name of the output directory. Typically $instDir.
args	A list of files and directories to be included in the starpack. The path names of the files and directories must be absolute pathes. The files of the Tcl program are typically located in $buildDir. Needed Tcl packages are located in [GetDevTclLibDir].

Example Build files using these procedures are:

· BawtLogViewer.bawt

· gorilla.bawt

· poApps.bawt

· tclssg.bawt

· tksqlite.bawt

The signature of procedure MakeStarpackTk is identical to procedure MakeStarpackTcl.

A starpack on Darwin is a directory using the extension .app.

5.2.4 Manually compile a library

To configure and compile a library, the BAWT framework uses shell (*.sh) or batch files (*.bat). These batch files are created in the Configure and Compile phases and stored in the Build directory (or a suitable subdirectory like eg. win) of the library.

You can use these batch files to configure or compile a library manually. This is especially useful while developing the build file for a new BAWT library.

Before running one of the shell or batch files on the command line, you have to remove the last line of the script containing the exit command or replace the exit command with an echo command.

You can easily open a library specific DOS or MSys shell window via the context menu of the BawtLogViewer, see chapter 6.1 Graphical Log Viewer.

The first part of the file name defines the configure and compile environment and corresponds to the general BAWT procedures for executing commands with the same name:

_Bawt_DosRun:

· The commands will be executed in a standard Windows command line environment.

· If running the command manually on Windows, it must be executed from a DOS command shell.

· Example: > _Bawt_DosRun_CMakeBuild.bat

_Bawt_MSysRun:

· The commands will be executed in the MSYS/MinGW environment or a standard shell environment on Unix systems.

· If running the command manually on Windows, it must be executed from a MSYS/MinGW shell.

· Note, that on Unix systems all files are prefixed with _Bawt_MSys.

· Example: > sh _Bawt_MSysRun_MSysBuild.bat

The second part specifies the caller of the DosRun or MSysRun command. This is typically one of the following standard BAWT procedures:

· NMakeBuild

· MsBuild

· CMakeConfig

· CMakeBuild

· MSysConfig

· TeaConfig

· MSysBuild

For libraries, which cannot be built with one of the above standard procedures, it is common usage to specify the caller in the form:

· _Bawt_LibName_Configure

· _Bawt_LibName_Compile

One example is the Boost library, which has special configure and compile commands:

· _Bawt_DosRun_Boost_Configure.bat

· _Bawt_DosRun_Boost_Compile.bat

When using NMakeBuild or MsBuild, there is no need to specify commands for the configuration phase.

· _Bawt_DosRun_MsBuild.bat

· _Bawt_DosRun_NMakeBuild.bat

All other commands typically come in pairs, so you will see the following combination of configure and compile batch scripts:

· _Bawt_DosRun_CMakeConfig.bat

· _Bawt_DosRun_CMakeBuild.bat

· _Bawt_MSysRun_TeaConfig.bat

· _Bawt_MSysRun_MSysBuild.bat

· _Bawt_MSysRun_MSysConfig.bat

· _Bawt_MSysRun_MSysBuild.bat

· _Bawt_MSysRun_CMakeBuild.bat

· _Bawt_MSysRun_CMakeConfig.bat

5.3 Known issues

5.3.1 Build deadlock

Problem:

The build process does not continue with specific libraries.

Workaround or solution:

This is due to errors in the build infrastructure of the corresponding library in conjunction with parallel builds. See chapter 5.1.6 Sign executables

Signing executables is currently only available on Windows and needs program signtool.exe, which is part of Visual Studio.

Signing of executables is done by calling procedure SignExecutables in a build script. This call is typically done in the Distribution stage. See build file BawtLogViewer.bawt for an example.

There are two command line options controlling the signature process:

--certfile (mandatory)

--timestampurl (optional)

Directory Resources contains a self-signed certification file poSoft.cer, which is used for the BAWT distributions.

Parallel builds for details.

5.3.2 BawtLogViewer shows incorrect build time

Problem:

If the build of a library starts before midnight and extends over midnight, the build time of this package will be negative in the BawtLogViewer table display, as the log file only stores time values as HH:MM:SS.

Workaround or solution:

None.

5.3.3 Package SWIG

Problem:

SWIG build fails occasionally on Windows due to problems renaming files.

This behavior was noticed on systems running Sophos AntiVirus only.

Workaround or solution:

No real solution, other than retrying the build until it succeeds.

5.3.4 Package Trf

Problem:

The CRC module of Tcl package Trf crashes when compiled in x86 mode on Windows.

Workaround or solution:

None.

5.3.5 Package tcllib/crc32

Problem:

The crc32 module of Tcl package tcllib crashes when compiled in x86 mode on Windows.

Workaround or solution:

The crash is not the fault of module crc32 itself, but of the CRC module of package Trf, which gets called, if the Trf extension is available.

Either remove package Trf or remove loading of accelerator trf in file crc32.tcl

foreach e {trf critcl} {

if {[LoadAccelerator $e]} break

}

5.4 Tips and Tricks

5.4.1 Tips for Windows

Check generated library

To check the architecture of a generated dynamic library, execute the following command in a Visual Studio developer command prompt:

> dumpbin /headers XXX.dll | more

The architecture of the library is contained in the file header section of the output:

FILE HEADER VALUES

machine (x64)

5.4.2 Tips for Linux

Check generated library

To check, if a library has been stripped, the commands nm or file can be used. To check the architecture of a generated library, the command file can be used.

A library built for Release should have no symbols and thus should generate the following outputs:

> nm libjpeg.so.9.1.0

nm: libjpeg.so.9.1.0: no symbols

> file libjpeg.so.9.1.0

libjpeg.so.9.1.0: ELF 32-bit LSB shared object, Intel 80386, version 1 (SYSV), dynamically linked, stripped

A Debug build should have symbols and thus should generate the following outputs:

> nm libjpeg.so.9.1.0 | more

0002ffa0 r aanscalefactor.4133

0002fa60 r aanscalefactor.4178

0002ffe0 r aanscales.4125

> file libjpeg.so.9.1.0

libjpeg.so.9.1.0: ELF 32-bit LSB shared object, Intel 80386, version 1 (SYSV), dynamically linked, not stripped

5.5 Advanced Batch Scripts

This section contains the batch scripts, which are used to generate the Tcl-Pure (minimal Tcl/Tk distribution) as well as the Tcl-BI (Batteries Included Tcl/Tk distribution) distributions.

5.5.1 Build Tcl-Pure distributions

The following batch scripts are used to create the Tcl-Pure distributions for all supported Tcl versions. A separate directory (C:/BawtBuilds/TclMinimal/TclMinimal-%TCLVERS%-%TkVERS%-%LINKTYPE%) is created for each Tcl version containing both the x86 and x64 versions.

The needed MSYS/MinGW versions are located in directory C:/BawtBuildTools (using option --toolsdir) to avoid extracting these for each Tcl version.

Batch script UpdateTclMinimal.bat

@echo off

setlocal

rem Architecture, TclVersion, TkVersion, TclString, LinkType and Finalize flag are mandatory parameters

if "%1" == "" goto ERROR

if "%2" == "" goto ERROR

if "%3" == "" goto ERROR

if "%4" == "" goto ERROR

if "%5" == "" goto ERROR

if "%6" == "" goto ERROR

set ARCH=%1

set TCLVERS=%2

set TKVERS=%3

set TCLSTRING=%4

set LINKTYPE=%5

set FINALIZE=%6

shift

rem If no target is given, use target "all".

if "%1"=="" goto BUILDALL

rem Loop through the rest of the parameter list for targets.

set TARGETS=

:PARAMLOOP

rem There is a trailing space in the next line. It's there for formatting.

set TARGETS=%TARGETS%%1

shift

if not "%1"=="" goto PARAMLOOP

goto BUILD

:BUILDALL

set TARGETS=all

:BUILD

set LINKTYPEOPT=

if "%LINKTYPE%"=="Dynamic" goto NOSTATIC

set LINKTYPEOPT=--copt Tcl Static=ON --copt Tk Static=ON

:NOSTATIC

set BAWTROOT=..\Bawt

set SETUPFILE=%BAWTROOT%\Setup\Tcl_MinimalDist.bawt

set FINALIZEFILE=Setup\UserFinalize.bawt

set OUTROOTDIR=C:/BawtBuilds/TclMinimal/TclMinimal-%TCLVERS%-%TKVERS%-%LINKTYPE%

set TOOLSDIR=C:/BawtBuildTools

set TCLKIT=%BAWTROOT%\tclkit-win32-intel.exe

set NUMJOBS=%NUMBER_OF_PROCESSORS%

set ACTION=--update

set BAWTOPTS=--rootdir %OUTROOTDIR% ^

--toolsdir %TOOLSDIR% ^

--architecture %ARCH% ^

--compiler gcc+vs2022 ^

--numjobs %NUMJOBS% ^

--noonline ^

--nouserbuilds ^

--iconfile poSoft.ico ^

--resourcefile poSoft.rc ^

--certfile poSoft.cer ^

--tclversion %TCLVERS% ^

--tkversion %TKVERS% ^

--copt SetupTcl "Version=%TCLSTRING%"

set FINALIZEOPT=--logviewer

if "%FINALIZE%"=="0" goto NOFINALIZE

set FINALIZEOPT=--finalizefile %FINALIZEFILE%

:NOFINALIZE

rem Build all libraries as listed in build configuration file.

CALL %TCLKIT% %BAWTROOT%\Bawt.tcl %BAWTOPTS% %LINKTYPEOPT% %FINALIZEOPT% %ACTION% %SETUPFILE% %TARGETS%

goto EOF

:ERROR

echo.

echo Usage: %0 Architecture TclVersion TkVersion TclString UseFinalizeScript [Target1] [TargetN]

echo Architecture : x86 x64

echo TclVersion : 8.6.17 9.0.2

echo TkVersion : 8.6.17 9.0.2

echo TclString : 8.6.17.0 9.0.2.0

echo LinkType : Static Dynamic

echo UseFinalizeScript: 0 1

echo Default target : all

echo.

:EOF

You might need to adapt the pathes specified in OUTROOTDIR and TOOLSDIR as well as the used Visual Studio version specified in command line option --compiler.

Batch script UpdateTclMinimals.bat

@echo off

setlocal

REM Architecture TclVersion TkVersion TclString LinkType UseFinalizeScript

CALL UpdateTclMinimal x64 8.6.17 8.6.17 8.6.17.0 Dynamic 0

CALL UpdateTclMinimal x64 9.0.2 9.0.2 9.0.2.0 Dynamic 0

CALL UpdateTclMinimal x86 8.6.17 8.6.17 8.6.17.0 Dynamic 0

CALL UpdateTclMinimal x86 9.0.2 9.0.2 9.0.2.0 Dynamic 0

CALL UpdateTclMinimal x64 9.0.2 9.0.2 9.0.2.0 Static 0

CALL UpdateTclMinimal x86 9.0.2 9.0.2 9.0.2.0 Static 0

5.5.2 Build Tcl-BI distributions

The following batch scripts are used to create the Tcl-BI distributions for all supported Tcl versions. A separate directory (C:/BawtBuilds/TclDistribution/TclDistribution-%TCLVERS%) is created for each Tcl version containing both the x86 and x64 versions.

The needed MSYS/MinGW versions are located in directory C:/BawtBuildTools (using option --toolsdir) to avoid extracting these for each Tcl version.

Batch script UpdateTclDistribution.bat

@echo off

setlocal

rem Architecture, TclVersion, TkVersion, TclString, ImgVersion, Action and Finalize flag are mandatory parameters

if "%1" == "" goto ERROR

if "%2" == "" goto ERROR

if "%3" == "" goto ERROR

if "%4" == "" goto ERROR

if "%5" == "" goto ERROR

if "%6" == "" goto ERROR

if "%7" == "" goto ERROR

set ARCH=%1

set TCLVERS=%2

set TKVERS=%3

set TCLSTRING=%4

set IMGVERS=%5

set ACTION=%6

set FINALIZE=%7

shift

rem If no target is given, use target "all".

if "%1"=="" goto BUILDALL

rem Loop through the rest of the parameter list for targets.

set TARGETS=

:PARAMLOOP

rem There is a trailing space in the next line. It's there for formatting.

set TARGETS=%TARGETS%%1

shift

if not "%1"=="" goto PARAMLOOP

goto BUILD

:BUILDALL

set TARGETS=all

:BUILD

set BAWTROOT=..\Bawt

set SETUPFILE=%BAWTROOT%\Setup\Tcl_Distribution.bawt

set FINALIZEFILE=Setup\UserFinalize.bawt

set OUTROOTDIR=C:/BawtBuilds/TclDistribution/TclDistribution-%TCLVERS%-%TKVERS%

set TOOLSDIR=C:/BawtBuildTools

set TCLKIT=%BAWTROOT%\tclkit-win32-intel.exe

set NUMJOBS=%NUMBER_OF_PROCESSORS%

set ACTION=--%ACTION%

set BAWTOPTS=--rootdir %OUTROOTDIR% ^

--toolsdir %TOOLSDIR% ^

--architecture %ARCH% ^

--compiler gcc+vs2022 ^

--numjobs %NUMJOBS% ^

--noonline ^

--nouserbuilds ^

--iconfile poSoft.ico ^

--resourcefile poSoft.rc ^

--certfile poSoft.cer ^

--tclversion %TCLVERS% ^

--tkversion %TKVERS% ^

--imgversion %IMGVERS% ^

--copt SWIG "AddTcl=ON" ^

--copt SetupTcl "Tag=-BI" ^

--copt SetupTcl "Version=%TCLSTRING%"

set FINALIZEOPT=--logviewer

if "%FINALIZE%"=="0" goto NOFINALIZE

set FINALIZEOPT=--finalizefile %FINALIZEFILE%

:NOFINALIZE

rem Build all libraries as listed in build configuration file.

CALL %TCLKIT% %BAWTROOT%\Bawt.tcl %BAWTOPTS% %FINALIZEOPT% %ACTION% %SETUPFILE% %TARGETS%

goto EOF

:ERROR

echo.

echo Usage: %0 Architecture TclVersion TkVersion TclString ImgVersion Action UseFinalizeScript [Target1] [TargetN]

echo Architecture : x86 x64

echo TclVersion : 8.6.17 9.0.2

echo TkVersion : 8.6.17 9.0.2

echo TclString : 8.6.17.0 9.0.2.0

echo ImgVersion : 1.4.17 2.1.0

echo Action : update test

echo UseFinalizeScript: 0 1

echo Default target : all

echo.

:EOF

You might need to adapt the pathes specified in OUTROOTDIR and TOOLSDIR as well as the used Visual Studio version specified in command line option --compiler.

Batch script UpdateTclDistributions.bat

@echo off

setlocal

REM Architecture TclVersion TkVersion TclString ImgVersion Action UseFinalizeScript

CALL UpdateTclDistribution x64 8.6.17 8.6.17 8.6.17.0 2.1.0 update 0

CALL UpdateTclDistribution x86 8.6.17 8.6.17 8.6.17.0 2.1.0 update 0

CALL UpdateTclDistribution x64 9.0.2 9.0.2 9.0.2.0 2.1.0 update 0

CALL UpdateTclDistribution x86 9.0.2 9.0.2 9.0.2.0 2.1.0 update 0

6 Logging

The Logs output directory contains the overall build log file _BawtBuild.log as well as the library specific build log files.

Library specific log files contain the output of the configuration and compile process. They also contain the error messages, if the build of a library does not succeed.

The overall log file contains the messages, which are printed onto standard output during the BAWT build process. The amount of log messages can be set by specifying the log level with command line option --loglevel. Level 0 does not produce any log messages, while level 4 produces lots of log messages. The default value for the log level is 3.

Each stage or executed command is prefixed with a time code like shown in the next line:

21:35:30 > Build tclcompiler 1.7.1 (Release)

If log files of different configurations should be compared, these time codes may be disturbing. BAWT therefore allows to remove the time codes from the log messages by specifying command line option --nologtime.

When rerunning a build, existing log files are renamed by appending .bak to the corresponding files before creating the new log files.

To view the build process online in a graphical window, the command line option --logviewer can be specified. See the next chapter for a detailed description of the graphical log file viewer BawtLogViewer.

Logging functionality is realized in namespace BawtLog. The most important procedure is Log, which may be used in build scripts, too.

Command line options influencing logging:

--loglevel

--nologtime

--logviewer

6.1 Graphical Log Viewer

The BawtLogViewer is a separate program to view and analyse the log output of BAWT. It is a Tcl script, which is wrapped as a Starpack and is included as a Windows executable in directory Bootstrap-Windows. For other platforms it can be built with BAWT.

To generate log messages usable by BawtLogViewer, the log level must be set to at least 3.

The graphical log viewer can either be used to analyse log files after a build process has finished (offline mode) or it can be used to interactively view the build process (online mode). Viewing the log messages online can be done by either using command line option --logviewer when starting the BAWT build process or by opening the log file _BawtBuild.log anytime during the build process.

Log files can be opened by using the File menu or by dragging and dropping the icon of the log file onto the BawtLogViewer window.

The following figure shows the layout of the log viewer window, which has 2 main parts. In the upper part all libraries of the Setup file are listed in a scrollable table, while in the lower part the log messages of the build process are displayed in a scrollable text widget.

Different row background colors indicate the build status of a library. A green background indicates a successful build of a library, a blue background indicates an excluded library, a yellow background shows the library currently under build and an orange background indicates a library, where the current build time is greater than the estimated build time. See below for an explanation of estimated build times for deadlock detection.

A red text color is displayed for libraries which issued a warning during the build process.

The table can be sorted by any of the columns except the first one, which just shows the row number. For example, you may want to view the libraries sorted by library names instead of the build number.

Selecting a table row scrolls to the beginning of the corresponding section in the text widget. The section is also marked with a yellow background.

By double clicking onto a table row, a simple editor window is opened showing the contents of the library specific build log file, see next figure for an example. Your favourite editor may be specified by setting the environment variable EDITOR.

Pressing the right mouse button opens a context menu with the following functionalities:

· Save library specific build or test time.

· Open library specific directories in an Explorer window.

· Open library specific Log, Setup or Build file.

· Open library specific DOS or MSYS shell window.

Pressing a key while the table has focus, selects the next library, which has this key as its first letter. Pressing other keys within the Key Repeat Time extends the search string similar to the behaviour of the Windows Explorer. The Key Repeat Time can be specified in the Settings menu.

Pressing the Return key has the same functionality as double clicking the selected table row.

Note the following features, which are only available in online mode:

· BawtLogViewer starts in Auto Update mode, where it reloads the log file every 3 seconds. The Auto Update mode is automatically switched off when the end of the build process is detected in the log file or it can be switched on or off by selecting the appropriate entry in the File menu.

· When reloading the log file, the table row order is always reset to the library build order.

· The accumulated time of the library currently being built is displayed in the status bar of the viewer window and in the corresponding table cell.

· Column Stages is not filled before the end of the build process, see next figure.

The program can be used to detect library build deadlocks by comparing the current build time against an estimated build time. To generate estimated build times, at least one BAWT build has to be performed. After loading the corresponding log files, the build times of this run can be saved in the settings file by selecting File menu entry Save build times.

These build times are then used as estimated build times in future BAWT builds to compare the current build time of a library against these estimated build times. If the current build time exceeds the estimated time by a specific threshold value (which can be specified in the Settings menu), both a visual warning (corresponding row background is set to orange) as well as an acoustic warning (beep) is issued. The acoustic warning can be disabled in the Settings menu.

Estimated build times, deadlock parameters and other values like window size and position are stored in the settings files ~/.BawtLogViewer/BawtLogViewer.cfg.

Warnings occurring during the build process of libraries are logged by the BAWT framework and can be inspected by selecting File menu entry View compiler warnings.

The table can be sorted and searched using key presses as described for the main window. Double clicking a row or pressing the Return key opens a simple editor window showing the contents of the library specific build log file.

If warnings occurred during the build process, these are shown in a table in the upper part of the editor window. Clicking onto a row selects the corresponding message in the editor window, see next figure.

The following glob-style patterns are used to detect errors and warnings in the log messages:

# gcc VisualStudio gcc-German

SetWarningDetectPatterns "*: warning:*" "*: warning*:*" "*: Warnung:*"

SetErrorDetectPatterns "*: error:*" "*: error C*:*" "*: Fehler:*"

This list of patterns can be extended by editing the settings file ~/BawtLogViewer.cfg.

# SetWarningDetectPatterns args

catch {::BawtLogViewer::SetWarningDetectPatterns {*: warning:*} {*: warning*:*} {*: Warnung:*}}

# SetErrorDetectPatterns args

catch {::BawtLogViewer::SetErrorDetectPatterns {*: error:*} {*: error C*:*} {*: Fehler:*}}

Failures occurring during the test process of libraries are logged by the BAWT framework and can be inspected by selecting File menu entry View test failures.

See the section regarding test procedures in chapter 0

Build Files for more information about test execution.

A green background indicates an executed test, while a blue background indicates, that the library does not have a test procedure. Column Failures shows the number of failures during test execution of a library.

If failures occurred during the test process, these are shown in a table in the upper part of the editor window. Clicking onto a row selects the corresponding message in the editor window, see next figure.

Matching test failures in the test log files uses tcltest specific strings, as well as user defined glob-style patterns similar to detecting build warnings.

The following user defined glob-style patterns are used to detect failures in the test log messages.

# SetFailureDetectPatterns args

catch {::BawtLogViewer::SetFailureDetectPatterns

Error:* ERROR:* Test*failed:* ErrorCode*}

This list of patterns can be extended by editing settings file ~/BawtLogViewer.cfg.

7 Command Line Options

Calling the BAWT framework script with command line option --help prints the following help message:

Usage: Bawt.tcl [Options] SetupFile LibraryName [LibraryNameN]

Start the BAWT automatic library build process.

When using "all" as library name, all libraries specified

in the setup file are built.

It is also possible to specify the numbers of the libraries as printed

by option "--list" or specify a range of numbers (ex: 2-5).

Note, that at least either a list or build action option must be specified.

7.1 General Options

Option	Description
--help	Print this help message and exit.
--version	Print BAWT version and copyright and exit. Use in combination with --loglevel 0 to just print the version number.
--procs	Print all available procedures and exit.
--proc <str>	Print documentation of specified procedure and exit.
--loglevel <int>	Specify log message verbosity. Choices: 0 - 4. Default: 3.
--nologtime	Do not write time strings with log messages. Default: Write time strings. Use this option when comparing log files to have less differences.
--logviewer	Start graphical log viewer program BawtLogViewer. Only working, if log level is greater than 1. Default: No.

7.2 List Action Options

Option	Description
--list	Print all available library names and versions and exit.
--platforms	Print library names, versions and supported platforms.
--wincompilers	Print library names, versions and supported Windows compilers.
--authors	Print library names, versions and script authors.
--homepages	Print library names, versions and homepages.
--excludes	Print library names, versions and platform specific excluded libraries.
--options	Print library names, versions and library build options.
--havetest	Print library names, versions and test procedure availability.
--dependencies	Print library names, versions and dependencies.
--dependency	Print dependencies of specified target libraries.

The list action options may be accumulated to print several library informations at once.

7.3 Build Action Options

Option	Description
--clean	Clean library specific build and install directories.
--extract	Extract library source from a ZIP file or a directory.

--configure	Perform the configure stage of the build process.
--compile	Perform the compile stage of the build process.
--distribute	Perform the distribution stage of the build process.

--finalize	Generate environment file and call user supplied Finalize procedure.
--complete	Perform the following stages in order: clean, extract, configure, compile, distribute, finalize.

--update	Perform necessary stages depending on modification times. Note: Global stage finalize is always executed.
--simulate	Simulate update action without actually building libraries.
--touch	Set modification times of library build directories to current time.

--test	Perform library specific test scripts.

7.4 Build Configuration Options

Option	Description
--architecture <str>	Build for specified processor architecture. Choices: x86 for 32-bit, x64 for 64-bit. Default: Architecture of the calling tclkit or tclsh.
--compiler <str>	Build with specified compiler version. Choices: gcc vs2013 vs2015 vs2017 vs2019 vs2022. Specify primary and secondary compiler by adding a plus sign in between. Example: gcc+vs2022. Default: gcc.
--gccversion <str>	Build with specified MinGW gcc version. Windows only. Choices: 7.2.0 8.1.0 11.2.0 12.2.0 13.2.0 14.2.0. Default: 7.2.0.
--msysversion <str>	Build with specified MSYS version. Windows only. Choices: 1 2. Default: Version 2 if available, otherwise version 1.
--tclversion <str>	Build Tcl, Tk and Tclkit for specified version. Choices: 8.6.7 - 8.6.17, 9.0.1 - 9.0.2. Default: 8.6.17.
--tkversion <str>	Build Tk and Tclkit for specified version. Choices: 8.6.7 - 8.6.17, 9.0.1 - 9.0.2. Default: 8.6.17.
--imgversion <str>	Build Img for specified version. Choices: 1.4.13 - 1.4.17, 2.0.1 – 2.1.0. Default: 2.1.0.
--tlsversion <str>	Build tcltls for specified version. Choices: 1 2. Default: Version 1.
--osgversion <str>	Build OpenSceneGraph for specified version. Choices: 3.4.1 3.6.5. Default: 3.6.5.
--libversion <lib> <str>	Build library for specified version. Overwrites values specified in Setup file. Default: As specified in Setup file.
--zipfile <lib> <str>	Build library from specified file or directory. Overwrites values specified in Setup file. Default: As specified in Setup file.
--buildtype <str>	Use specified build type. Choices: Release Debug. Default: Release or as specified in setup file.
--universal	Enable universal binary builds. Available for Darwin only. Default: Not enabled.
--mindarwin <str>	Specify Darwin minimum version to build for. Default: 11.0 (Big Sur).
--sanitizer	Enable Address Sanitizer libasan. Only valid with build type Debug. Default: Not enabled.
--exclude <lib>	Force exclusion of build for specified library name.

--wincc <lib> <str>	Use specified Windows compiler, if supported by build script. Choices: gcc vs.
--sdk <lib> <str>	Use specified Microsoft SDK version. To use the SDK version for all libraries, specify "all" as library name.
--copt <lib> <str>	Specify library specific user configuration option.
--user <lib> <str>	Specify library specific user build file.

--url <str>	Specify BAWT download server. Default: https://www.tcl3d.org/bawt/download
--cacert <str>	Use specified certificate file as parameter to curl calls. Default: None.
--toolsdir <str>	Specify directory containing MSYS/MinGW. Default: [GetOutputToolsDir]
--rootdir <str>	Specify build output root directory. Default: [GetOutputRootDir]
--libdir <str>	Add a directory containing library source and build files. This option can be called multiple times and adds the new directory to the beginning of the directory list. Default search list: [file join [pwd] “InputLibs”] [file join [GetInputRootDir ] “InputLibs”]
--distdir <str>	Specify distribution root directory. Default: [file join [GetOutputTypeDir] "Distribution"]
--finalizefile <str>	Specify file with user supplied Finalize procedure. Default: None.

--sort <str>	Sort libraries according to specified sorting mode. Choices: dependencies dictionary none. Default: dependencies
--noversion	Do not use version number for Tcl package directories. Default: Library name and version number.
--noexit	Do not exit build process after fatal error, but try to continue. Default: Exit build process after a fatal error.
--nosetupwarning	Do not print warnings regarding multiple versions in Setup files. Default: Print warnings.
--noimportlibs	Do not create import libraries on Windows. Default: Create import libraries. Needs VisualStudio.
--noruntimelibs	Do not copy VisualStudio runtime libraries. Default: Copy runtime libraries. Needs VisualStudio.
--nostrip	Do not strip libraries in distribution directory. Default: Strip libraries.
--noonline	Do not check or download from online repository. Default: Use https://www.tcl3d.org/bawt/download
--norecursive	Do not check recursive dependencies. Default: Use recursive dependencies.
--nosubdirs	Do not create compiler and architecture sub directories. Default: Create compiler and architecture sub directories.
--nouserbuilds	Do not consider user build files. Default: Consider user build files named LibraryName_User.bawt.

--iconfile <str>	Use specified icon file for tclkits and starpacks. Default: Standard tclkit icon. Windows only.
--resourcefile <str>	Use specified resource file for tclkits and starpacks. Default: Standard tclkit resource file. Windows only.
--certfile <str>	Use specified certification file for code signing starpacks. Default: No code signing. Windows only.
--timestampurl <str>	Use specified timestamp server for code signing starpacks. Default: http://timestamp.digicert.com. Use empty string to add no timestamp. Windows only.

--numjobs <int>	Number of parallel compile jobs. Default: 1
--libjobs <lib> <int>	Number of parallel compile jobs for specified library. Default: 1
--timeout <float>	Number of seconds to try renaming or deleting directories. Default: 30.0

8 Supported Libraries

List of all libraries (using command line option --platforms)

#: Name Version Platforms

-----------------------------------------------------

1: apave 4.4.10 Windows Linux Darwin

2: argparse 0.61 Windows Linux Darwin

3: awthemes 10.4.0 Windows Linux Darwin

4: BawtLogViewer 3.2.0 Windows Linux Darwin

5: Blender 3.0.0 Windows

6: Boost 1.78.0 Windows Linux Darwin

7: BWidget 1.10.1 Windows Linux Darwin

8: Cal3D 0.120 Windows Linux

9: Canvas3d 1.2.3 Windows Linux

10: cawt 3.1.1 Windows

11: cawtapp 3.1.1 Windows

12: ccl 4.0.6 Windows Linux

13: cffi 2.0.3 Windows Linux Darwin

14: cfitsio 4.1.0 Windows Linux Darwin

15: CMake 3.25.2 Windows Linux Darwin

16: critcl 3.3 Windows Linux Darwin

17: curl 7.70.0 Windows Linux Darwin

18: DiffUtil 0.4.3 Windows Linux Darwin

19: DirectXTex 2021_11 Windows

20: Doxygen 1.8.15 Windows

21: Eigen 3.3.9 Windows Linux Darwin

22: expect 5.45.4.1 Linux Darwin

23: Ffidl 0.9.1 Windows Linux Darwin

24: ffmpeg 7.1.2 Windows Linux Darwin

25: fftw 3.3.9 Windows Linux Darwin

26: fitsTcl 2.5.1 Windows Linux Darwin

27: freeglut 3.2.2 Windows Linux Darwin

28: Freetype 2.13.3 Windows Linux Darwin

29: FTGL 2.1.3 Windows Linux Darwin

30: gdal 2.4.4 Windows Linux Darwin

31: gdi 0.9.9.15 Windows

32: GeographicLib 1.52 Windows Linux Darwin

33: GeographicLibData Windows Linux Darwin

34: geos 3.7.2 Windows Linux Darwin

35: giflib 5.2.1 Windows Linux Darwin

36: Gl2ps 1.4.2 Windows Linux Darwin

37: GLEW 2.2.0 Windows Linux Darwin

38: glfw 3.3.8 Windows Linux Darwin

39: gorilla 1.6.1 Windows Linux Darwin

40: hdc 0.2.0.1 Windows

41: Img 2.1.0 Windows Linux Darwin

42: imgjp2 0.1.1 Windows Linux Darwin

43: imgtools 0.3.1 Windows Linux Darwin

44: InnoSetup 6.2.2 Windows

45: iocp 2.0.2 Windows

46: itk 4.2.5 Windows Linux Darwin

47: iwidgets 4.1.2 Windows Linux Darwin

48: jasper 2.0.25 Windows Linux Darwin

49: jigsaw 2.0 Windows Linux Darwin

50: JPEG 9.f Windows Linux Darwin

51: KDIS 2.9.0 Windows Linux Darwin

52: libffi 3.4.8 Windows Linux Darwin

53: libgd 2.3.2 Windows Linux Darwin

54: libressl 2.9.2 Windows Linux Darwin

55: libwebp 1.2.4 Windows Linux Darwin

56: libxml2 2.10.3 Windows Linux Darwin

57: materialicons 0.2 Windows Linux Darwin

58: mawt 0.5.0 Windows Linux Darwin

59: memchan 2.3.1 Windows Linux Darwin

60: mentry 4.5 Windows Linux Darwin

61: Mpexpr 1.2.1 Windows Linux Darwin

62: mqtt 4.0 Windows Linux Darwin

63: mupdf 1.26.0 Windows Linux Darwin

64: MuPDFWidget 2.4 Windows Linux Darwin

65: nacl 1.1.1 Windows Linux Darwin

66: nasm 2.16.3 Windows

67: nsf 2.4.0 Windows Linux Darwin

68: OglInfo 1.0.1 Windows Linux Darwin

69: ooxml 1.10 Windows Linux Darwin

70: openjpeg 2.5.3 Windows Linux Darwin

71: OpenSceneGraph 3.6.5 Windows Linux Darwin

72: OpenSceneGraphData 3.4.0 Windows Linux Darwin

73: oratcl 4.6.1 Windows Linux Darwin

74: osgcal 0.2.1 Windows Linux

75: osgearth 2.10.1 Windows Linux Darwin

76: pandoc 3.5 Windows Linux Darwin

77: parse_args 0.5.1 Windows Linux Darwin

78: pawt 1.2.0 Windows Linux Darwin

79: pdf4tcl 0.9.4 Windows Linux Darwin

80: pgintcl 3.5.2 Windows Linux Darwin

81: photoresize 0.2.1 Windows Linux Darwin

82: pkgconfig 0.29.2 Darwin

83: PNG 1.6.48 Windows Linux Darwin

84: poApps 3.2.0 Windows Linux Darwin

85: poClipboardViewer 3.2.0 Windows

86: poImg 3.0.1 Windows Linux Darwin

87: poLibs 3.2.0 Windows Linux Darwin

88: poMemory 1.0.0 Windows Linux Darwin

89: printer 0.9.6.16 Windows

90: publisher 2.0 Windows Linux Darwin

91: puppyicons 0.1 Windows Linux Darwin

92: Python 3.7.7 Windows

93: rbc 0.2.0 Windows Linux

94: Redistributables Windows

95: rl_json 0.16.0 Windows Linux Darwin

96: rtext 0.1.1 Windows Linux Darwin

97: ruff 2.6.0 Windows Linux Darwin

98: scrollutil 2.6 Windows Linux Darwin

99: SDL 2.26.2 Windows Linux Darwin

100: SetupPython Windows

101: SetupTcl Windows Linux Darwin

102: shellicon 0.2.0 Windows

103: Snack 2.2.12 Windows Linux

104: sqlite3 3.47.1 Windows Linux Darwin

105: SWIG 4.3.1 Windows Linux Darwin

106: tablelist 7.7 Windows Linux Darwin

107: tbcload 2.0a0 Windows Linux Darwin

108: Tcl 8.6.17 Windows Linux Darwin

109: tcl3dExtended 1.0.1 Windows Linux Darwin

110: tcl3dFull 1.0.1 Windows Linux Darwin

111: tcl9migrate 1.0 Windows Linux Darwin

112: Tcladdressbook 1.2.4 Darwin

113: tclAE 2.0.7 Darwin

114: Tclapplescript 2.2 Darwin

115: tclargp 0.2 Windows Linux Darwin

116: tclcompiler 2.0a0 Windows Linux Darwin

117: tclcsv 2.4.3 Windows Linux Darwin

118: tcldebugger 2.0.1 Windows Linux Darwin

119: tclfpdf 1.7.2 Windows Linux Darwin

120: tclgd 1.4.1 Windows Linux Darwin

121: Tclkit Windows Linux Darwin

122: tcllib 2.1 Windows Linux Darwin

123: tclMuPdf 2.5.1 Windows Linux Darwin

124: tclparser 1.9 Windows Linux Darwin

125: tclpy 0.4.1 Windows Linux

126: tclssg 3.0.1 Windows Linux Darwin

127: TclStubs 8.6.17 Windows

128: TclTkManual Windows Linux Darwin

129: tcltls 1.7.23 Windows Linux Darwin

130: tcluvc 0.1 Linux

131: tclvfs 1.5.0 Windows Linux Darwin

132: tclws 3.5.0 Windows Linux Darwin

133: tclx 9.0.0 Windows Linux Darwin

134: tdom 0.9.6 Windows Linux Darwin

135: thtmlview 2.0.0 Windows Linux Darwin

136: TIFF 4.7.0 Windows Linux Darwin

137: tinyxml2 9.0.0 Windows Linux Darwin

138: Tix 8.4.4 Windows Linux Darwin

139: Tk 8.6.17 Windows Linux Darwin

140: tkchat 1.482 Windows Linux Darwin

141: tkcon 2.8 Windows Linux Darwin

142: tkdnd 2.9.5 Windows Linux Darwin

143: Tkhtml 3.0.2 Windows Linux Darwin

144: tklib 0.9 Windows Linux Darwin

145: tko 0.4 Windows Linux Darwin

146: tkpath 0.4.2 Windows Linux Darwin

147: tkribbon 1.2 Windows

148: tksqlite 0.5.14 Windows Linux Darwin

149: TkStubs 8.6.17 Windows

150: tksvg 0.14 Windows Linux Darwin

151: Tktable 2.12 Windows Linux Darwin

152: tkwintrack 2.1.1 Windows Linux

153: treectrl 2.5.2 Windows Linux Darwin

154: Trf 2.1.4 Windows Linux Darwin

155: trofs 0.4.9 Windows Linux Darwin

156: tserialport 1.1.1 Windows Linux Darwin

157: tsw 1.2 Windows Linux Darwin

158: twapi 5.2.0 Windows

159: tzint 1.1.1 Windows Linux Darwin

160: udp 1.0.12 Windows Linux Darwin

161: ukaz 2.1 Windows Linux Darwin

162: vectcl 0.2.1 Windows Linux Darwin

163: Vim 9.0.0 Windows

164: vlerq 4.1 Windows Linux Darwin

165: wcb 4.2 Windows Linux Darwin

166: windetect 2.0.1 Windows Linux

167: winhelp 1.1.1 Windows

168: Xerces 3.2.4 Windows Linux Darwin

169: xz 5.4.1 Windows Linux Darwin

170: yasm 1.3.0 Windows

171: ZLib 1.3.1 Windows Linux Darwin

List of all libraries (using command line option --dependencies)

#: Name Version Dependencies

--------------------------------------------------------------------------------------------------------------------------------------------------------

1: apave 4.4.10 Tk

2: argparse 0.61 Tcl

3: awthemes 10.4.0 Tk

4: BawtLogViewer 3.2.0 Tclkit tablelist tkdnd poLibs scrollutil Img rtext

5: Blender 3.0.0

6: Boost 1.78.0

7: BWidget 1.10.1 Tk

8: Cal3D 0.120 CMake freeglut

9: Canvas3d 1.2.3 Tk

10: cawt 3.1.1 Tcl twapi tdom Img tablelist

11: cawtapp 3.1.1 Tclkit cawt Img tablelist tdom twapi

12: ccl 4.0.6 CMake

13: cffi 2.0.3 Tcl libffi

14: cfitsio 4.1.0

15: CMake 3.25.2

16: critcl 3.3 Tcl

17: curl 7.70.0 libressl

18: DiffUtil 0.4.3 Tcl

19: DirectXTex 2021_11

20: Doxygen 1.8.15

21: Eigen 3.3.9

22: expect 5.45.4.1 Tcl

23: Ffidl 0.9.1 Tcl libffi

24: ffmpeg 7.1.2 SDL yasm

25: fftw 3.3.9

26: fitsTcl 2.5.1 Tcl cfitsio

27: freeglut 3.2.2 CMake

28: Freetype 2.13.3 PNG

29: FTGL 2.1.3 Freetype

30: gdal 2.4.4 openjpeg

31: gdi 0.9.9.15 Tk TkStubs

32: GeographicLib 1.52 CMake

33: GeographicLibData GeographicLib

34: geos 3.7.2 CMake

35: giflib 5.2.1

36: Gl2ps 1.4.2 CMake freeglut PNG ZLib

37: GLEW 2.2.0 CMake

38: glfw 3.3.8 CMake

39: gorilla 1.6.1 Tcl Tclkit

40: hdc 0.2.0.1 Tk TkStubs

41: Img 2.1.0 Tk TkStubs tcllib

42: imgjp2 0.1.1 Tk openjpeg

43: imgtools 0.3.1 Tcl Tk

44: InnoSetup 6.2.2

45: iocp 2.0.2 Tcl

46: itk 4.2.5 Tk

47: iwidgets 4.1.2 Tk itk

48: jasper 2.0.25 CMake JPEG

49: jigsaw 2.0 Tclkit puppyicons tcllib tklib Img

50: JPEG 9.f

51: KDIS 2.9.0 CMake

52: libffi 3.4.8

53: libgd 2.3.2 ZLib TIFF JPEG PNG libwebp Freetype

54: libressl 2.9.2

55: libwebp 1.2.4

56: libxml2 2.10.3 CMake Zlib

57: materialicons 0.2 Tk tdom tksvg

58: mawt 0.5.0 Tk TkStubs SWIG CMake Img ffmpeg

59: memchan 2.3.1 Tcl

60: mentry 4.5 Tk wcb

61: Mpexpr 1.2.1 Tcl

62: mqtt 4.0 Tcl

63: mupdf 1.26.0

64: MuPDFWidget 2.4 Tk tclMuPdf

65: nacl 1.1.1 Tcl

66: nasm 2.16.3

67: nsf 2.4.0 Tcl

68: OglInfo 1.0.1 Tclkit tcl3dExtended

69: ooxml 1.10 Tcl tclvfs tdom

70: openjpeg 2.5.3 CMake

71: OpenSceneGraph 3.6.5 CMake ZLib TIFF JPEG jasper giflib PNG curl Freetype ffmpeg

72: OpenSceneGraphData 3.4.0 OpenSceneGraph

73: oratcl 4.6.1 Tcl

74: osgcal 0.2.1 Cal3D OpenSceneGraph

75: osgearth 2.10.1 CMake curl gdal geos OpenSceneGraph

76: pandoc 3.5

77: parse_args 0.5.1 Tcl

78: pawt 1.2.0 Tcl fitstcl Img

79: pdf4tcl 0.9.4 Tk

80: pgintcl 3.5.2 Tcl

81: photoresize 0.2.1 Tcl Tk

82: pkgconfig 0.29.2

83: PNG 1.6.48 CMake ZLib

84: poApps 3.2.0 Tclkit tcllib tablelist Img tdom publisher tclMuPdf fitsTcl poImg poMemory cawt pawt twapi tkdnd tksvg scrollutil rtext

85: poClipboardViewer 3.2.0 Tclkit cawt tcllib tablelist Img twapi tksvg scrollutil

86: poImg 3.0.1 Tk

87: poLibs 3.2.0 Tcl Tk

88: poMemory 1.0.0 Tcl

89: printer 0.9.6.16 Tk TkStubs hdc

90: publisher 2.0 Tcl

91: puppyicons 0.1 Tk tksvg

92: Python 3.7.7

93: rbc 0.2.0 Tk

94: Redistributables

95: rl_json 0.16.0 Tcl

96: rtext 0.1.1 TclStubs TkStubs

97: ruff 2.6.0 Tcl

98: scrollutil 2.6 Tk

99: SDL 2.26.2 CMake

100: SetupPython Python

101: SetupTcl All

102: shellicon 0.2.0 Tk TkStubs

103: Snack 2.2.12 Tk TkStubs

104: sqlite3 3.47.1

105: SWIG 4.3.1

106: tablelist 7.7 Tk

107: tbcload 2.0a0 Tcl

108: Tcl 8.6.17

109: tcl3dExtended 1.0.1 CMake Tk TkStubs SWIG Freetype FTGL SDL

110: tcl3dFull 1.0.1 CMake Tk TkStubs SWIG Freetype FTGL SDL OpenSceneGraph

111: tcl9migrate 1.0 Tcl

112: Tcladdressbook 1.2.4 Tcl

113: tclAE 2.0.7 Tcl

114: Tclapplescript 2.2 Tcl

115: tclargp 0.2 Tcl

116: tclcompiler 2.0a0 Tcl

117: tclcsv 2.4.3 Tcl

118: tcldebugger 2.0.1 Tk Tclkit tcllib tclparser

119: tclfpdf 1.7.2 Tk

120: tclgd 1.4.1 Tcl libgd

121: Tclkit Tcl Tk

122: tcllib 2.1 Tcl critcl Tclkit

123: tclMuPdf 2.5.1 Tk TkStubs CMake mupdf publisher

124: tclparser 1.9 Tcl

125: tclpy 0.4.1 Tk TkStubs Python

126: tclssg 3.0.1 Tcl Tclkit tcllib

127: TclStubs 8.6.17

128: TclTkManual Tcl Tk

129: tcltls 1.7.23 Tcl libressl

130: tcluvc 0.1 Tcl Tk

131: tclvfs 1.5.0 Tcl

132: tclws 3.5.0 Tcl tdom tcllib

133: tclx 9.0.0 Tcl

134: tdom 0.9.6 Tcl

135: thtmlview 2.0.0 Tk

136: TIFF 4.7.0 JPEG ZLib xz

137: tinyxml2 9.0.0 CMake

138: Tix 8.4.4 Tk

139: Tk 8.6.17 Tcl

140: tkchat 1.482 Tclkit

141: tkcon 2.8 Tk

142: tkdnd 2.9.5 CMake Tk TkStubs

143: Tkhtml 3.0.2 Tcl Tk

144: tklib 0.9 Tk

145: tko 0.4 Tk

146: tkpath 0.4.2 Tk

147: tkribbon 1.2 Tk TkStubs

148: tksqlite 0.5.14 Tcl Tclkit tablelist Tktable treectrl Img

149: TkStubs 8.6.17 TclStubs

150: tksvg 0.14 Tk

151: Tktable 2.12 Tk

152: tkwintrack 2.1.1 Tk

153: treectrl 2.5.2 Tk

154: Trf 2.1.4 Tcl Zlib

155: trofs 0.4.9 Tk

156: tserialport 1.1.1 Tcl

157: tsw 1.2 Tk

158: twapi 5.2.0 Tcl

159: tzint 1.1.1 Tcl PNG

160: udp 1.0.12 Tcl

161: ukaz 2.1 Tk

162: vectcl 0.2.1 Tcl

163: Vim 9.0.0

164: vlerq 4.1 Tcl

165: wcb 4.2 Tk

166: windetect 2.0.1 Tk

167: winhelp 1.1.1 Tcl Tk

168: Xerces 3.2.4 CMake

169: xz 5.4.1

170: yasm 1.3.0

171: ZLib 1.3.1

List of all libraries (using command line option --authors)

#: Name Version ScriptAuthor

--------------------------------------------------

1: apave 4.4.10 Paul Obermeier

2: argparse 0.61 Paul Obermeier

3: awthemes 10.4.0 Paul Obermeier

4: BawtLogViewer 3.2.0 Paul Obermeier

5: Blender 3.0.0 Paul Obermeier

6: Boost 1.78.0 Paul Obermeier

7: BWidget 1.10.1 Paul Obermeier

8: Cal3D 0.120 Paul Obermeier

9: Canvas3d 1.2.3 Paul Obermeier

10: cawt 3.1.1 Paul Obermeier

11: cawtapp 3.1.1 Paul Obermeier

12: ccl 4.0.6 Paul Obermeier

13: cffi 2.0.3 Paul Obermeier

14: cfitsio 4.1.0 Paul Obermeier

15: CMake 3.25.2 Paul Obermeier

16: critcl 3.3 Paul Obermeier

17: curl 7.70.0 Paul Obermeier

18: DiffUtil 0.4.3 Paul Obermeier

19: DirectXTex 2021_11 Paul Obermeier

20: Doxygen 1.8.15 Paul Obermeier

21: Eigen 3.3.9 Paul Obermeier

22: expect 5.45.4.1 Paul Obermeier

23: Ffidl 0.9.1 Paul Obermeier

24: ffmpeg 7.1.2 Paul Obermeier

25: fftw 3.3.9 Paul Obermeier

26: fitsTcl 2.5.1 Paul Obermeier

27: freeglut 3.2.2 Paul Obermeier

28: Freetype 2.13.3 Paul Obermeier

29: FTGL 2.1.3 Paul Obermeier

30: gdal 2.4.4 Paul Obermeier

31: gdi 0.9.9.15 Paul Obermeier

32: GeographicLib 1.52 Paul Obermeier

33: GeographicLibData Paul Obermeier

34: geos 3.7.2 Paul Obermeier

35: giflib 5.2.1 Paul Obermeier

36: Gl2ps 1.4.2 Paul Obermeier

37: GLEW 2.2.0 Paul Obermeier

38: glfw 3.3.8 Paul Obermeier

39: gorilla 1.6.1 Paul Obermeier

40: hdc 0.2.0.1 Paul Obermeier

41: Img 2.1.0 Paul Obermeier

42: imgjp2 0.1.1 Paul Obermeier

43: imgtools 0.3.1 Paul Obermeier

44: InnoSetup 6.2.2 Paul Obermeier

45: iocp 2.0.2 Paul Obermeier

46: itk 4.2.5 Paul Obermeier

47: iwidgets 4.1.2 Paul Obermeier

48: jasper 2.0.25 Paul Obermeier

49: jigsaw 2.0 Paul Obermeier

50: JPEG 9.f Paul Obermeier

51: KDIS 2.9.0 Paul Obermeier

52: libffi 3.4.8 Paul Obermeier

53: libgd 2.3.2 Alexander Schoepe

54: libressl 2.9.2 Paul Obermeier

55: libwebp 1.2.4 Paul Obermeier

56: libxml2 2.10.3 Paul Obermeier

57: materialicons 0.2 Paul Obermeier

58: mawt 0.5.0 Paul Obermeier

59: memchan 2.3.1 Alexander Schoepe

60: mentry 4.5 Paul Obermeier

61: Mpexpr 1.2.1 Paul Obermeier

62: mqtt 4.0 Paul Obermeier

63: mupdf 1.26.0 Paul Obermeier

64: MuPDFWidget 2.4 Paul Obermeier

65: nacl 1.1.1 Paul Obermeier

66: nasm 2.16.3 Paul Obermeier

67: nsf 2.4.0 Paul Obermeier

68: OglInfo 1.0.1 Paul Obermeier

69: ooxml 1.10 Paul Obermeier

70: openjpeg 2.5.3 Paul Obermeier

71: OpenSceneGraph 3.6.5 Paul Obermeier

72: OpenSceneGraphData 3.4.0 Paul Obermeier

73: oratcl 4.6.1 Alexander Schoepe

74: osgcal 0.2.1 Paul Obermeier

75: osgearth 2.10.1 Paul Obermeier

76: pandoc 3.5 Paul Obermeier

77: parse_args 0.5.1 Paul Obermeier

78: pawt 1.2.0 Paul Obermeier

79: pdf4tcl 0.9.4 Paul Obermeier

80: pgintcl 3.5.2 Paul Obermeier

81: photoresize 0.2.1 Paul Obermeier

82: pkgconfig 0.29.2 Paul Obermeier

83: PNG 1.6.48 Paul Obermeier

84: poApps 3.2.0 Paul Obermeier

85: poClipboardViewer 3.2.0 Paul Obermeier

86: poImg 3.0.1 Paul Obermeier

87: poLibs 3.2.0 Paul Obermeier

88: poMemory 1.0.0 Paul Obermeier

89: printer 0.9.6.16 Paul Obermeier

90: publisher 2.0 Paul Obermeier

91: puppyicons 0.1 Paul Obermeier

92: Python 3.7.7 Paul Obermeier

93: rbc 0.2.0 Alexander Schoepe

94: Redistributables Paul Obermeier

95: rl_json 0.16.0 Paul Obermeier

96: rtext 0.1.1 Paul Obermeier

97: ruff 2.6.0 Paul Obermeier

98: scrollutil 2.6 Paul Obermeier

99: SDL 2.26.2 Paul Obermeier

100: SetupPython Paul Obermeier

101: SetupTcl Paul Obermeier

102: shellicon 0.2.0 Paul Obermeier

103: Snack 2.2.12 Paul Obermeier

104: sqlite3 3.47.1 Paul Obermeier

105: SWIG 4.3.1 Paul Obermeier

106: tablelist 7.7 Paul Obermeier

107: tbcload 2.0a0 Alexander Schoepe

108: Tcl 8.6.17 Paul Obermeier

109: tcl3dExtended 1.0.1 Paul Obermeier

110: tcl3dFull 1.0.1 Paul Obermeier

111: tcl9migrate 1.0 Paul Obermeier

112: Tcladdressbook 1.2.4 Alexander Schoepe

113: tclAE 2.0.7 Alexander Schoepe

114: Tclapplescript 2.2 Alexander Schoepe

115: tclargp 0.2 Paul Obermeier

116: tclcompiler 2.0a0 Alexander Schoepe

117: tclcsv 2.4.3 Paul Obermeier

118: tcldebugger 2.0.1 Paul Obermeier

119: tclfpdf 1.7.2 Paul Obermeier

120: tclgd 1.4.1 Alexander Schoepe

121: Tclkit Paul Obermeier

122: tcllib 2.1 Paul Obermeier

123: tclMuPdf 2.5.1 Paul Obermeier

124: tclparser 1.9 Alexander Schoepe

125: tclpy 0.4.1 Paul Obermeier

126: tclssg 3.0.1 Paul Obermeier

127: TclStubs 8.6.17 Paul Obermeier

128: TclTkManual Paul Obermeier

129: tcltls 1.7.23 Alexander Schoepe

130: tcluvc 0.1 Paul Obermeier

131: tclvfs 1.5.0 Paul Obermeier

132: tclws 3.5.0 Paul Obermeier

133: tclx 9.0.0 Paul Obermeier

134: tdom 0.9.6 Paul Obermeier

135: thtmlview 2.0.0 Paul Obermeier

136: TIFF 4.7.0 Paul Obermeier

137: tinyxml2 9.0.0 Paul Obermeier

138: Tix 8.4.4 Paul Obermeier

139: Tk 8.6.17 Paul Obermeier

140: tkchat 1.482 Paul Obermeier

141: tkcon 2.8 Paul Obermeier

142: tkdnd 2.9.5 Paul Obermeier

143: Tkhtml 3.0.2 Paul Obermeier

144: tklib 0.9 Paul Obermeier

145: tko 0.4 Paul Obermeier

146: tkpath 0.4.2 Paul Obermeier

147: tkribbon 1.2 Paul Obermeier

148: tksqlite 0.5.14 Paul Obermeier

149: TkStubs 8.6.17 Paul Obermeier

150: tksvg 0.14 Paul Obermeier

151: Tktable 2.12 Paul Obermeier

152: tkwintrack 2.1.1 Paul Obermeier

153: treectrl 2.5.2 Paul Obermeier

154: Trf 2.1.4 Paul Obermeier

155: trofs 0.4.9 Paul Obermeier

156: tserialport 1.1.1 Alexander Schoepe

157: tsw 1.2 Paul Obermeier

158: twapi 5.2.0 Paul Obermeier

159: tzint 1.1.1 Alexander Schoepe

160: udp 1.0.12 Paul Obermeier

161: ukaz 2.1 Paul Obermeier

162: vectcl 0.2.1 Paul Obermeier

163: Vim 9.0.0 Paul Obermeier

164: vlerq 4.1 Paul Obermeier

165: wcb 4.2 Paul Obermeier

166: windetect 2.0.1 Paul Obermeier

167: winhelp 1.1.1 Paul Obermeier

168: Xerces 3.2.4 Paul Obermeier

169: xz 5.4.1 Paul Obermeier

170: yasm 1.3.0 Paul Obermeier

171: ZLib 1.3.1 Paul Obermeier

List of all libraries (using command line option --homepages)

#: Name Version Homepage

---------------------------------------------------------------------------------------------------------

1: apave 4.4.10 https://aplsimple.github.io/en/tcl/pave/index.html

2: argparse 0.61 https://github.com/georgtree/argparse

3: awthemes 10.4.0 https://sourceforge.net/projects/tcl-awthemes/

4: BawtLogViewer 3.2.0 https://www.tcl3d.org/bawt/

5: Blender 3.0.0 https://www.blender.org/

6: Boost 1.78.0 https://www.boost.org/

7: BWidget 1.10.1 https://core.tcl-lang.org/bwidget/

8: Cal3D 0.120 https://github.com/mp3butcher/Cal3D

9: Canvas3d 1.2.3 http://3dcanvas.tcl-lang.org/

10: cawt 3.1.1 https://www.tcl3d.org/cawt/

11: cawtapp 3.1.1 https://www.tcl3d.org/cawt/

12: ccl 4.0.6 https://sourceforge.net/projects/cigi/

13: cffi 2.0.3 https://github.com/apnadkarni/tcl-cffi

14: cfitsio 4.1.0 https://heasarc.gsfc.nasa.gov/fitsio/

15: CMake 3.25.2 https://www.cmake.org/

16: critcl 3.3 https://andreas-kupries.github.io/critcl/

17: curl 7.70.0 https://curl.haxx.se/libcurl/

18: DiffUtil 0.4.3 https://github.com/pspjuth/DiffUtilTcl/

19: DirectXTex 2021_11 https://github.com/microsoft/DirectXTex/

20: Doxygen 1.8.15 http://www.doxygen.org/

21: Eigen 3.3.9 http://eigen.tuxfamily.org/

22: expect 5.45.4.1 https://sourceforge.net/projects/expect/

23: Ffidl 0.9.1 https://github.com/prs-de/ffidl

24: ffmpeg 7.1.2 https://www.ffmpeg.org/

25: fftw 3.3.9 http://www.fftw.org/

26: fitsTcl 2.5.1 https://heasarc.gsfc.nasa.gov/docs/software/ftools/fv/fitsTcl_home.html

27: freeglut 3.2.2 https://sourceforge.net/projects/freeglut/

28: Freetype 2.13.3 http://www.freetype.org/

29: FTGL 2.1.3 https://sourceforge.net/projects/ftgl/

30: gdal 2.4.4 https://www.gdal.org/

31: gdi 0.9.9.15 http://www.schwartzcomputer.com/tcl-tk/tcl-tk.html

32: GeographicLib 1.52 https://geographiclib.sourceforge.io/

33: GeographicLibData https://geographiclib.sourceforge.io/

34: geos 3.7.2 http://trac.osgeo.org/geos/

35: giflib 5.2.1 http://giflib.sourceforge.net/

36: Gl2ps 1.4.2 http://www.geuz.org/gl2ps/

37: GLEW 2.2.0 https://github.com/nigels-com/glew/

38: glfw 3.3.8 https://www.glfw.org/

39: gorilla 1.6.1 https://github.com/zdia/gorilla/wiki

40: hdc 0.2.0.1 http://www.schwartzcomputer.com/tcl-tk/tcl-tk.html

41: Img 2.1.0 https://tkimg.sourceforge.net/

42: imgjp2 0.1.1 https://www.androwish.org/home/dir?name=jni/imgjp2

43: imgtools 0.3.1 https://tkimgtools.sourceforge.net/

44: InnoSetup 6.2.2 http://www.jrsoftware.org/isinfo.php

45: iocp 2.0.2 https://github.com/apnadkarni/iocp/

46: itk 4.2.5 https://core.tcl-lang.org/itk/

47: iwidgets 4.1.2 https://sourceforge.net/projects/incrtcl/

48: jasper 2.0.25 https://github.com/jasper-software/jasper/

49: jigsaw 2.0 http://www.easton.me.uk/tcl/jigsaw/index.html

50: JPEG 9.f http://www.ijg.org/

51: KDIS 2.9.0 https://sourceforge.net/projects/kdis/

52: libffi 3.4.8 https://github.com/libffi/libffi

53: libgd 2.3.2 https://libgd.github.io

54: libressl 2.9.2 https://www.libressl.org/

55: libwebp 1.2.4 https://developers.google.com/speed/webp/

56: libxml2 2.10.3 https://gitlab.gnome.org/GNOME/libxml2

57: materialicons 0.2 https://www.androwish.org/home/dir?ci=tip&name=assets/materialicons0.2

58: mawt 0.5.0 https://www.tcl3d.org/mawt/

59: memchan 2.3.1 https://memchan.sourceforge.net/

60: mentry 4.5 http://www.nemethi.de/

61: Mpexpr 1.2.1 https://sourceforge.net/projects/mpexpr/

62: mqtt 4.0 https://chiselapp.com/user/schelte/repository/mqtt/home

63: mupdf 1.26.0 https://mupdf.com/

64: MuPDFWidget 2.4 https://sourceforge.net/projects/irrational-numbers/

65: nacl 1.1.1 https://tcl.sowaswie.de/repos/fossil/nacl/home

66: nasm 2.16.3 https://www.nasm.us/

67: nsf 2.4.0 https://next-scripting.org

68: OglInfo 1.0.1 https://www.tcl3d.org/

69: ooxml 1.10 https://fossil.sowaswie.de/ooxml/home

70: openjpeg 2.5.3 http://www.openjpeg.org/

71: OpenSceneGraph 3.6.5 http://www.openscenegraph.org/

72: OpenSceneGraphData 3.4.0 http://www.openscenegraph.org/

73: oratcl 4.6.1 https://github.com/sm-shaw/Oratcl

74: osgcal 0.2.1 https://sourceforge.net/projects/osgcal/

75: osgearth 2.10.1 http://osgearth.org/

76: pandoc 3.5 https://pandoc.org/

77: parse_args 0.5.1 https://github.com/RubyLane/parse_args

78: pawt 1.2.0 https://www.tcl3d.org/pawt/

79: pdf4tcl 0.9.4 https://sourceforge.net/projects/pdf4tcl/

80: pgintcl 3.5.2 https://sourceforge.net/projects/pgintcl/

81: photoresize 0.2.1 https://github.com/auriocus/PhotoResize

82: pkgconfig 0.29.2 https://www.freedesktop.org/wiki/Software/pkg-config/

83: PNG 1.6.48 http://www.libpng.org/pub/png/

84: poApps 3.2.0 https://www.tcl3d.org/poApps/

85: poClipboardViewer 3.2.0 http://www.poSoft.de/

86: poImg 3.0.1 https://www.tcl3d.org/poPkgs/poImg.html

87: poLibs 3.2.0 http://www.poSoft.de/

88: poMemory 1.0.0 https://www.tcl3d.org/poPkgs/poMemory.html

89: printer 0.9.6.16 http://www.schwartzcomputer.com/tcl-tk/tcl-tk.html

90: publisher 2.0 https://sourceforge.net/projects/irrational-numbers/

91: puppyicons 0.1 https://www.androwish.org/home/dir?ci=tip&name=undroid/puppyicons0.1

92: Python 3.7.7 http://www.python.org/

93: rbc 0.2.0 https://www.sourceforge.net/projects/rbctoolkit/

94: Redistributables https://learn.microsoft.com/en-us/cpp/windows/latest-supported-vc-redist

95: rl_json 0.16.0 https://github.com/RubyLane/rl_json

96: rtext 0.1.1 https://chiselapp.com/user/fvogel/repository/rtext

97: ruff 2.6.0 https://ruff.magicsplat.com/

98: scrollutil 2.6 http://www.nemethi.de/

99: SDL 2.26.2 https://www.libsdl.org/

100: SetupPython https://www.tcl3d.org/bawt/

101: SetupTcl https://www.tcl3d.org/bawt/

102: shellicon 0.2.0 https://sourceforge.net/projects/shellicon/

103: Snack 2.2.12 https://github.com/scottypitcher/tcl-snack

104: sqlite3 3.47.1 https://www.sqlite.org/

105: SWIG 4.3.1 http://www.swig.org/

106: tablelist 7.7 http://www.nemethi.de/

107: tbcload 2.0a0 https://github.com/tcltk-depot/tbcload

108: Tcl 8.6.17 https://core.tcl-lang.org/tcl/

109: tcl3dExtended 1.0.1 https://www.tcl3d.org/

110: tcl3dFull 1.0.1 https://www.tcl3d.org/

111: tcl9migrate 1.0 https://github.com/apnadkarni/tcl9-migrate

112: Tcladdressbook 1.2.4 https://sourceforge.net/projects/tcladdressbook/

113: tclAE 2.0.7 https://sourceforge.net/projects/tclae/

114: Tclapplescript 2.2 https://sourceforge.net/projects/tclapplescript/

115: tclargp 0.2 https://wiki.tcl-lang.org/page/argp

116: tclcompiler 2.0a0 https://github.com/tcltk-depot/tclcompiler

117: tclcsv 2.4.3 https://sourceforge.net/projects/tclcsv

118: tcldebugger 2.0.1 https://github.com/tcltk-depot/tcl-debugger

119: tclfpdf 1.7.2 https://github.com/lamuzzachiodi/tclfpdf

120: tclgd 1.4.1 https://github.com/flightaware/tcl.gd

121: Tclkit https://sourceforge.net/projects/kbskit/

122: tcllib 2.1 https://core.tcl-lang.org/tcllib

123: tclMuPdf 2.5.1 https://sourceforge.net/projects/irrational-numbers/

124: tclparser 1.9 https://github.com/tcltk-depot/tcl-parser

125: tclpy 0.4.1 https://github.com/aidanhs/libtclpy

126: tclssg 3.0.1 https://github.com/tclssg/tclssg

127: TclStubs 8.6.17 https://core.tcl-lang.org/tcl/

128: TclTkManual http://www.tcl-lang.org

129: tcltls 1.7.23 http://core.tcl-lang.org/tcltls/

130: tcluvc 0.1 https://www.androwish.org/home/dir?ci=tip&name=jni/tcluvc

131: tclvfs 1.5.0 https://core.tcl-lang.org/tclvfs/

132: tclws 3.5.0 https://core.tcl-lang.org/tclws/

133: tclx 9.0.0 https://github.com/tcltk-depot/tclx

134: tdom 0.9.6 http://tdom.org/

135: thtmlview 2.0.0 https://github.com/mittelmark/thtmlview/

136: TIFF 4.7.0 http://www.simplesystems.org/libtiff/

137: tinyxml2 9.0.0 https://github.com/leethomason/tinyxml2

138: Tix 8.4.4 https://tix.sourceforge.net/

139: Tk 8.6.17 https://core.tcl-lang.org/tk/

140: tkchat 1.482 http://tkchat.tcl-lang.org/

141: tkcon 2.8 https://github.com/bohagan1/TkCon/

142: tkdnd 2.9.5 https://github.com/petasis/tkdnd

143: Tkhtml 3.0.2 https://github.com/olebole/tkhtml3

144: tklib 0.9 https://core.tcl-lang.org/tklib

145: tko 0.4 https://chiselapp.com/user/rene/repository/tko/index

146: tkpath 0.4.2 https://github.com/tcltk-depot/tkpath

147: tkribbon 1.2 https://github.com/petasis/tkribbon

148: tksqlite 0.5.14 http://reddog.s35.xrea.com/wiki/TkSQLite.html

149: TkStubs 8.6.17 https://core.tcl-lang.org/tk/

150: tksvg 0.14 https://github.com/oehhar/tksvg/

151: Tktable 2.12 https://github.com/bohagan1/TkTable/

152: tkwintrack 2.1.1 https://sourceforge.net/projects/tkwintrack/

153: treectrl 2.5.2 https://github.com/tcltk-depot/tktreectrl

154: Trf 2.1.4 https://tcltrf.sourceforge.net/

155: trofs 0.4.9 https://math.nist.gov/~DPorter/tcltk/trofs/

156: tserialport 1.1.1 https://fossil.sowaswie.de/tserialport

157: tsw 1.2 http://www.nemethi.de/

158: twapi 5.2.0 https://github.com/apnadkarni/twapi

159: tzint 1.1.1 https://fossil.sowaswie.de/tzint/

160: udp 1.0.12 https://core.tcl-lang.org/tcludp/

161: ukaz 2.1 https://github.com/auriocus/ukaz

162: vectcl 0.2.1 https://github.com/auriocus/VecTcl/

163: Vim 9.0.0 https://www.vim.org/

164: vlerq 4.1 https://www.equi4.com/vlerq-org/

165: wcb 4.2 http://www.nemethi.de/

166: windetect 2.0.1 https://sourceforge.net/projects/tkwintrack/

167: winhelp 1.1.1 https://www.androwish.org/index.html/dir?name=undroid/winhelp

168: Xerces 3.2.4 http://xerces.apache.org/

169: xz 5.4.1 https://sourceforge.net/projects/lzmautils/

170: yasm 1.3.0 https://github.com/yasm/yasm/

171: ZLib 1.3.1 http://www.zlib.net/

9 MSYS / MinGW Information

This chapter describes the development environments MSYS and MinGW. These packages provide an environment using the GNU compiler collection (gcc) to build typical Open Source projects like Tcl/Tk under Windows.

9.1 Introduction

MSYS

MSYS, a contraction of "Minimal SYStem", is a Bourne Shell command line interpreter system. Offered as an alternative to Microsoft's cmd.exe, this provides a general purpose command line environment, which is particularly suited to use with MinGW, for porting of many Open Source applications to the MS-Windows platform.

MSYS is a collection of Unix tools for Windows. It contains all tools which are needed for the typical build process using the configure / make toolset.

Examples: autogen, cp, rm, mv, mkdir, m4, make

MSYS is available as 32-bit version only. This version can be used in conjunction with both the 32-bit and 64-bit version of MinGW.

MSYS2

MSYS2 is a newer version of MSYS.

It is available from https://www.msys2.org/.

MinGW

Short description from the homepage of MinGW-w64: https://sourceforge.net/projects/mingw-w64/

MinGW, a contraction of "Minimalist GNU for Windows", is a minimalist development environment for native Microsoft Windows applications.

MinGW provides a complete Open Source programming tool set which is suitable for the development of native MS-Windows applications, and which do not depend on any 3rd-party C-Runtime DLLs. (It does depend on a number of DLLs provided by Microsoft themselves, as components of the operating system; most notable among these is MSVCRT.DLL, the Microsoft C runtime library. Additionally, threaded applications must ship with a freely distributable thread support DLL, provided as part of MinGW itself).

MinGW compilers provide access to the functionality of the Microsoft C runtime and some language-specific runtimes. MinGW, being Minimalist, does not, and never will, attempt to provide a POSIX runtime environment for POSIX application deployment on MS-Windows.

MinGW provides the GNU Compiler Collection gcc for Windows. The SourceForge project MinGW-w64 supplies 32-bit and 64-bit versions of gcc.

The MinGW-w64 project also supplies an extended version of MSYS (see chapter 9.2 Installation below for details).

9.2 Installation of MSYS

The following instructions were used to create the BAWT MSYS/MinGW distributions for gcc versions 4.9.2, 5.2.0, 7.2.0 and 8.1.0.

9.2.1 Download MSYS

Entry page:

https://sourceforge.net/projects/mingwbuilds/files/external-binary-packages/

File: msys+7za+wget+svn+git+mercurial+cvs-rev13.7z

Link:

https://sourceforge.net/projects/mingwbuilds/files/external-binary-packages/msys%2B7za%2Bwget%2Bsvn%2Bgit%2Bmercurial%2Bcvs-rev13.7z/download

9.2.2 Download MinGW

Entry page for 32-bit version:

https://sourceforge.net/projects/mingw-w64/files/Toolchains%20targetting%20Win32/Personal%20Builds/mingw-builds/

Entry page for 64-bit version:

https://sourceforge.net/projects/mingw-w64/files/Toolchains%20targetting%20Win64/Personal%20Builds/mingw-builds/

32-bit gcc 4.9.2

File: i686-4.9.2-release-posix-dwarf-rt_v4-rev4.7z

Link:

https://sourceforge.net/projects/mingw-w64/files/Toolchains%20targetting%20Win32/Personal%20Builds/mingw-builds/4.9.2/threads-posix/dwarf/i686-4.9.2-release-posix-dwarf-rt_v4-rev4.7z/download

32-bit gcc 5.2.0

File: i686-5.2.0-release-posix-dwarf-rt_v4-rev0.7z

Link:

https://sourceforge.net/projects/mingw-w64/files/Toolchains%20targetting%20Win32/Personal%20Builds/mingw-builds/5.2.0/threads-posix/dwarf/i686-5.2.0-release-posix-dwarf-rt_v4-rev0.7z/download

32-bit gcc 7.2.0

File: i686-7.2.0-release-posix-dwarf-rt_v5-rev1.7z

Link:

https://sourceforge.net/projects/mingw-w64/files/Toolchains%20targetting%20Win32/Personal%20Builds/mingw-builds/7.2.0/threads-posix/dwarf/i686-7.2.0-release-posix-dwarf-rt_v5-rev1.7z/download

32-bit gcc 8.1.0

File: i686-8.1.0-release-posix-dwarf-rt_v6-rev0.7z

Link:

https://sourceforge.net/projects/mingw-w64/files/Toolchains%20targetting%20Win32/Personal%20Builds/mingw-builds/8.1.0/threads-posix/dwarf/i686-8.1.0-release-posix-dwarf-rt_v6-rev0.7z/download

64-bit gcc 4.9.2

File: x86_64-4.9.2-release-posix-seh-rt_v4-rev4.7z

Link:

https://sourceforge.net/projects/mingw-w64/files/Toolchains%20targetting%20Win64/Personal%20Builds/mingw-builds/4.9.2/threads-posix/seh/x86_64-4.9.2-release-posix-seh-rt_v4-rev4.7z/download

64-bit gcc 5.2.0

File: x86_64-5.2.0-release-posix-seh-rt_v4-rev0.7z

Link:

https://sourceforge.net/projects/mingw-w64/files/Toolchains%20targetting%20Win64/Personal%20Builds/mingw-builds/5.2.0/threads-posix/seh/x86_64-5.2.0-release-posix-seh-rt_v4-rev0.7z/download

64-bit gcc 7.2.0

File: x86_64-7.2.0-release-posix-seh-rt_v5-rev1.7z

Link:

https://sourceforge.net/projects/mingw-w64/files/Toolchains%20targetting%20Win64/Personal%20Builds/mingw-builds/7.2.0/threads-posix/seh/x86_64-7.2.0-release-posix-seh-rt_v5-rev1.7z/download

64-bit gcc 8.1.0

File: x86_64-8.1.0-release-posix-seh-rt_v6-rev0.7z

Link:

https://sourceforge.net/projects/mingw-w64/files/Toolchains%20targetting%20Win64/Personal%20Builds/mingw-builds/8.1.0/threads-posix/seh/x86_64-8.1.0-release-posix-seh-rt_v6-rev0.7z/download

9.2.3 Configuration

The following instructions use the 32-bit version of gcc 4.9.2. Installation is done on drive C:

Adapt file and directory names accordingly, when using other versions.

Create directory C:\MinGW-gcc4.9.2-32
Extract downloaded MinGW file in directory C:\MinGW-gcc4.9.2-32
Extract downloaded MSYS file in directory C:\MinGW-gcc4.9.2-32

Your directory structure should now look as follows:

Insert the next two lines into file C:\MinGW-gcc4.9.2-32\msys\etc\fstab

# Win32_Path Mount_Point

C:/MinGW-gcc4.9.2-32/mingw32 /mingw

Start the MSYS Shell by double-clicking onto file C:\MinGW-gcc4.9.2-32\msys\msys.bat

You may create a shortcut of msys.bat on your desktop for easier access.

9.3 Installation of MSYS2

The following instructions were used to create the BAWT MSYS/MinGW distributions for gcc versions 11.2.0, 12.2.0, 13.2.0 and 14.2.0.

Download the newest MSYS2 32-bit installer.

Change the gcc versions as appropriate.

9.3.1 MSYS2/MinGW 64-bit

· Execute the installer program and install into C:\gcc13.2.0_x86_64-w64-mingw32

· After installation perform the following commands to update the packages and add additional packages needed for BAWT.

> pacman -Syu

· Run "MSYS2 MSYS" from Start menu.

· Update the rest of the base packages:

> pacman -Su

· Install additional tools:

> pacman -S --needed base-devel

> pacman -S zip

· Install compiler for 64-bit:

> pacman -S --needed mingw-w64-x86_64-toolchain

· Select the following packages:

mingw-w64-x86_64-binutils

mingw-w64-x86_64-gcc

mingw-w64-x86_64-make

mingw-w64-x86_64-pkgconf

mingw-w64-x86_64-tools-git

· Quit MSYS shell.

· Make adjustments for BAWT usage:

Remove file InstallationLog.txt

Remove directories mingw32 and installerResources.

Create directory msys32 and move all files and directories except mingw64 into msys32.

Remove subdirectory "User" from msys32/home.

· Create 7z file of C:\gcc13.2.0_x86_64-w64-mingw32 using Ultra compression.

9.3.2 MSYS2/MinGW 32-bit

· Execute the installer program and install into C:\gcc13.2.0_i686-w64-mingw32

· After installation perform the following commands to update the packages and add additional packages needed for BAWT.

> pacman -Syu

· Run "MSYS2 MSYS" from Start menu.

· Update the rest of the base packages:

> pacman -Su

· Install additional tools:

> pacman -S --needed base-devel

> pacman -S zip

· Install compiler for 32-bit:

> pacman -S --needed mingw-w64-i686-toolchain

· Select the following packages:

mingw-w64-i686-binutils

mingw-w64-i686-gcc

mingw-w64-i686-make

mingw-w64-i686-pkgconf

mingw-w64-i686-tools-git

· Quit MSYS shell.

· Make adjustments for BAWT usage:

Remove file InstallationLog.txt

Remove directories mingw64 and installerResources.

Create directory msys32 and move all files and directories except mingw32 into msys32.

Remove subdirectory "User" from msys32/home.

· Create 7z file of C:\gcc13.2.0_i686-w64-mingw32 using Ultra compression.

9.4 Further Informations

Source: https://sourceforge.net/p/mingw-w64/wiki2/MSYS/

9.4.1 What is MSYS

MSYS is a Minimal SYStem, providing several crucial unix utilities under a compatibility layer (the msys-1.0.dll file). MSYS should provide everything to make compilation of common GNU software.

MSYS provided by the mingw-w64/w32 project

This package is not more than a collection of the 50+ packages provided by mingw.org. It was created as a (huge) convenience to our users, to let them be productive instead of downloading every part separately. The accompanying sources are also provided and can be found in the same download section as mentioned above.

This package is 32-bit, but will run flawlessly on x64 Windows. There will never be a 64-bit native MSYS (is there any need?) because the only compiler capable of building MSYS applications is the outdated gcc 3.4.4, which does not support x64 native Windows targets.

9.4.2 Where to get MSYS

There are three places you can get MSYS:

The MinGW project, with separate packages of all official MSYS packages. Takes a long time to download and install everything.
The all-in-one package on the MinGW-w64 download page. It is updated on request (see third option for very up to date collection)
MinGW-builds provides an ultra-inclusive MSYS package with a bunch of additional useful stuff.

9.4.3 How to use MSYS

Installing MSYS is quite easy.

You'll need to download the above package.
Unzip it somewhere, for example C:\msys so that C:\msys\bin contains (among others) bash.exe.
Doubleclick (or make a handy shortcut and run that) on C:\msys\msys.bat.
Type sh /postinstall/pi.sh
Answer the friendly questions and you're all set up.

Mingw-w64/w32 specifics

When running an autotools configure script, these options will come in handy:

for a 64-bit build: --host=x86_64-w64-mingw32
for a 32-bit build: --host=i686-w64-mingw32

If you are experiencing problems, you can also set --build to the same value. Some configure scripts also use --target instead of --host. Use configure --help to get all possible options.

--host, --target, and --build explained

--host specifies on what platform/architecture the compiled program is going to run. --target specifies the platform/architecture that the program should be configured for and will be compiled for. This should only have effect when building cross-compilers. --build specifies the platform/architecture the build process is going to be executed.

10 Release history

The following table gives an overview of the release history of BAWT. For detailed release information see the BAWT homepage.

Version	Date	Release notes
0.1.0	2016-06-24	First version introduced at EuroTcl 2016 in Eindhoven.
0.2.0	2016-08-27	Improved build actions. New and updated libraries.
0.3.0	2016-10-23	Improved build actions. New and updated libraries.
0.4.0	2016-12-28	Improved build actions. New and updated libraries.
0.5.0	2017-03-19	Improved build actions. New and updated libraries.
0.6.0	2017-07-20	Improved build actions. New and updated libraries.
0.7.0	2017-08-26	Improved build actions. New and updated libraries.
0.7.1	2017-09-12	Support for Tcl/Tk 8.7.
0.7.2	2017-09-24	Support for Visual Studio 2017.
0.7.3	2018-01-04	Tcl/Tk 8.6.8. New and updated libraries.
0.8.0	2018-07-04	Support for nested Setup files. New and updated libraries.
0.9.0	2018-12-28	Tcl/Tk 8.6.9. New and updated libraries.
0.9.1	2019-03-09	Better support for Debug build mode. New and updated libraries.
1.0.0	2019-06-23	Several incompatible changes. Support for Visual Studio 2019.
1.1.0	2019-12-28	Tcl/Tk 8.6.10. Improved MinGW support for several libraries. New and updated libraries.
1.1.1	2020-01-12	Improved handling of C++ based Tcl extensions.
1.1.2	2020-02-16	Improved BawtLogViewer. New and updated libraries.
1.1.3	2020-03-15	Improved Linux build. Updated libraries.
1.1.4	2020-05-02	Improved MinGW support for several libraries. New and updated libraries.
1.2.0	2020-06-09	Additional MSYS2 support. New and updated libraries.
1.2.1	2020-09-05	Support for Tcl/Tk 8.7a4. New and updated libraries.
1.3.0	2021-01-08	Support for Tcl/Tk 8.6.11. Improved support for Tcl/Tk 8.7.a4. New and updated libraries.
2.0.0	2021-08-22	Support for primary and secondary compiler on Windows. Tcl/Tk 8.7.a5. New and updated libraries.
2.1.0	2021-12-28	Support for Tcl/Tk 8.6.12. New and updated libraries.
2.2.0	2022-04-15	Support for MinGW gcc 11. New and updated libraries.
2.2.1	2022-07-17	Maintenance release. New and updated libraries.
2.3.0	2022-12-18	Support for Tcl/Tk 8.6.13 and Apple Silicon (ARM). New and updated libraries.
2.3.1	2023-01-19	Maintenance release. New and updated libraries.
3.0.0	2024-12-28	Major release. Support for Tcl/Tk 9, Linux ARM and RISC-V. New and updated libraries.
3.0.1	2024-12-31	Patch release. Prefer BAWT supplied zip program on Windows.
3.1.0	2025-08-24	Maintenance release. Support for Tcl/Tk 8.6.17 and 9.0.2.
3.2.0	2025-11-08	Maintenance release. Support for Tcl/Tk 9.0.3.
