Demo 9 of 14 in category OsgHelp
 |
# MultiTextures.tcl
#
# Original C++ code by Peter Wraae Marino and Michael Bach Jensen.
# See www.osghelp.com for the original files.
#
# Modified for Tcl3D by Paul Obermeier 2010/03/20.
# See www.tcl3d.org for the Tcl3D extension.
package require tcl3d
if { ! [tcl3dHaveOsg] } {
tk_messageBox -icon error -type ok -title "Missing Tcl3D module" \
-message "Demo needs the tcl3dOSG module."
proc Cleanup {} {}
exit 1
return
}
# Font to be used in the Tk listbox.
set gDemo(listFont) {-family {Courier} -size 10}
# Window size.
set gDemo(winWidth) 640
set gDemo(winHeight) 480
# Determine the directory and filename of this script.
set gDemo(scriptFile) [info script]
set gDemo(scriptDir) [file dirname $gDemo(scriptFile)]
# Show errors occuring in the Togl callbacks.
proc bgerror { msg } {
puts "Error: $msg\n\n$::errorInfo"
tk_messageBox -icon error -type ok -message "Error: $msg\n\n$::errorInfo"
ExitProg
}
# Print info message into widget a the bottom of the window.
proc PrintInfo { msg } {
if { [winfo exists .fr.info] } {
.fr.info configure -text $msg
}
}
# Idle callback to redisplay the scene.
proc Animate {} {
.fr.toglwin postredisplay
set ::animateId [tcl3dAfterIdle Animate]
}
proc StartAnimation {} {
if { ! [info exists ::animateId] } {
Animate
}
}
proc StopAnimation {} {
if { [info exists ::animateId] } {
after cancel $::animateId
unset ::animateId
}
}
proc CreateCallback { toglwin } {
}
proc ReshapeCallback { toglwin { w -1 } { h -1 } } {
set w [$toglwin width]
set h [$toglwin height]
# Propagate resize event to embedded OSG window.
tcl3dOsgWindowResize $toglwin [tcl3dOsgGetOsgWin] $w $h
}
proc DisplayCallback { toglwin } {
if { [viewer valid] } {
viewer frame
}
$toglwin swapbuffers
}
proc Cleanup {} {
uplevel #0 unset gDemo
viewer -delete
}
proc ExitProg {} {
exit
}
proc SaveOsgToFile {} {
global gDemo
set osgRoot [viewer getSceneData]
set outFile [format "%s.osgt" [file rootname $gDemo(scriptFile)]]
# Create a name on the file system, if running from within a Starpack.
set outFile [tcl3dGenExtName $outFile]
puts "Saving scenegraph to file $outFile"
if { ! [osgDB::writeNodeFile $osgRoot $outFile] } {
puts "Failed to write scenegraph to file $outFile"
}
}
proc CreateWidgets { osgwin } {
global gDemo
frame .fr
pack .fr -expand 1 -fill both
set toglwin .fr.toglwin
togl $toglwin -width $gDemo(winWidth) -height $gDemo(winHeight) \
-double true -depth true -alpha true \
-createcommand CreateCallback \
-reshapecommand ReshapeCallback \
-displaycommand DisplayCallback
listbox .fr.usage -font $gDemo(listFont) -height 3
label .fr.info
grid $toglwin -row 0 -column 0 -sticky news
grid .fr.usage -row 1 -column 0 -sticky news
grid .fr.info -row 2 -column 0 -sticky news
grid rowconfigure .fr 0 -weight 1
grid columnconfigure .fr 0 -weight 1

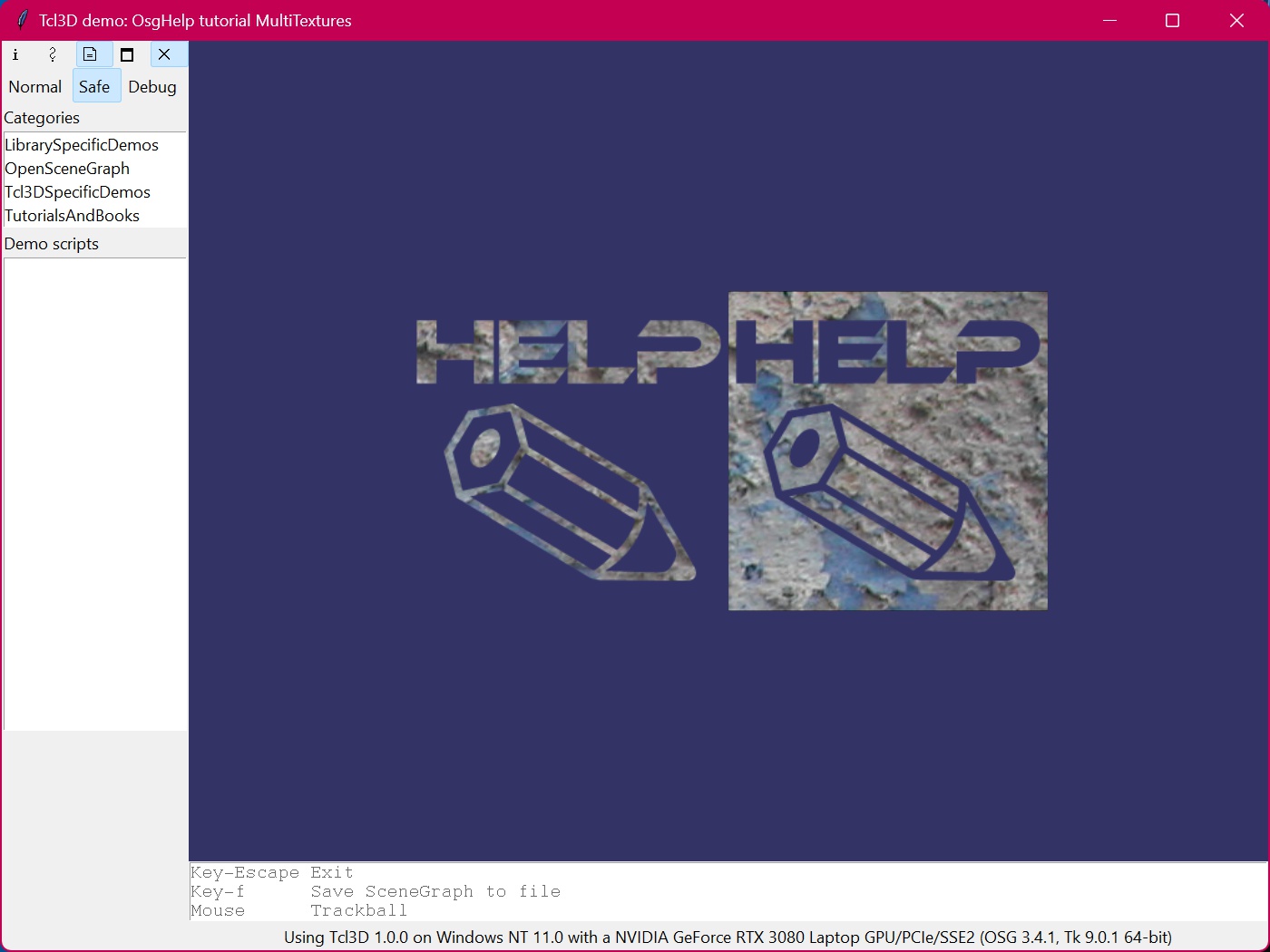

wm title . "Tcl3D demo: OsgHelp tutorial MultiTextures"
wm protocol . WM_DELETE_WINDOW "ExitProg"
bind . <Key-Escape> "ExitProg"
bind . <Key-f> "SaveOsgToFile"
# Propagate key and mouse events to embedded OSG window.
bind . <KeyPress> "tcl3dOsgKeyPress $toglwin $osgwin %N"
tcl3dOsgAddTrackballBindings $toglwin $osgwin
.fr.usage insert end "Key-Escape Exit"
.fr.usage insert end "Key-f Save SceneGraph to file"
.fr.usage insert end "Mouse Trackball"
.fr.usage configure -state disabled
}
#
# Start of tutorial specific code.
#
proc CreateQuad { vPos } {
# create drawable geometry object
osg::Geometry geo
# add 4 vertices creating a quad
osg::Vec3Array verts
set v1 [osg::Vec3]
set v2 [osg::Vec3]
set v3 [osg::Vec3]
set v4 [osg::Vec3]
$v1 set 0 0 0
$v2 set 1 0 0
$v3 set 1 0 1
$v4 set 0 0 1
verts push [$vPos add $v1]
verts push [$vPos add $v2]
verts push [$vPos add $v3]
verts push [$vPos add $v4]
geo setVertexArray verts
# create a primitive set
osg::DrawElementsUInt primitiveSet $::osg::PrimitiveSet_QUADS 0
primitiveSet push 3
primitiveSet push 2
primitiveSet push 1
primitiveSet push 0
geo addPrimitiveSet primitiveSet
# create an arraw for texture coordinates
osg::Vec2Array texCoords
texCoords push [osg::Vec2 t1 0.0 0.0]
texCoords push [osg::Vec2 t2 1.0 0.0]
texCoords push [osg::Vec2 t3 1.0 1.0]
texCoords push [osg::Vec2 t4 0.0 1.0]
geo setTexCoordArray 0 texCoords
geo setTexCoordArray 1 texCoords
# create geometry node that will contain all our drawables
osg::Geode geode
geode addDrawable geo
return geode
}
proc CreateScene {} {
global gDemo
osg::Group group
# load texture of a pencil (contains alpha)
osg::Texture2D texPencil
set pencilFile [tcl3dGetExtFile [file join $gDemo(scriptDir) "Data/pencil.tga"]]
texPencil setImage [osgDB::readImageFile $pencilFile]
# load texture of cracks (no alpha)
osg::Texture2D texCracks
set cracksFile [tcl3dGetExtFile [file join $gDemo(scriptDir) "Data/cracks.tga"]]
texCracks setImage [osgDB::readImageFile $cracksFile]
# create quad on left side
set geode0 [CreateQuad [osg::Vec3 v0 -0.5 0 0]]
group addChild $geode0
set stateSet0 [$geode0 getOrCreateStateSet]
$stateSet0 setMode $::GL_LIGHTING $::osg::StateAttribute_OFF
$stateSet0 setMode $::GL_BLEND $::osg::StateAttribute_ON
$stateSet0 setTextureAttributeAndModes 0 texPencil $::osg::StateAttribute_ON
$stateSet0 setTextureAttributeAndModes 1 texCracks $::osg::StateAttribute_ON
# add combiner, setup so it multiplies texture0 with texture1
osg::TexEnvCombine texEnv0
texEnv0 setCombine_RGB $::osg::TexEnvCombine_MODULATE
texEnv0 setSource0_RGB $::osg::TexEnvCombine_TEXTURE0
texEnv0 setOperand0_RGB $::osg::TexEnvCombine_SRC_COLOR
texEnv0 setSource1_RGB $::osg::TexEnvCombine_TEXTURE1
texEnv0 setOperand1_RGB $::osg::TexEnvCombine_SRC_COLOR
$stateSet0 setTextureAttribute 1 texEnv0
# create quad on right side
set geode1 [CreateQuad [osg::Vec3 v1 0.5 0 0]]
group addChild $geode1
set stateSet1 [$geode1 getOrCreateStateSet]
$stateSet1 setMode $::GL_LIGHTING $::osg::StateAttribute_OFF
$stateSet1 setMode $::GL_BLEND $::osg::StateAttribute_ON
$stateSet1 setTextureAttributeAndModes 0 texPencil $::osg::StateAttribute_ON
$stateSet1 setTextureAttributeAndModes 1 texCracks $::osg::StateAttribute_ON
# add combiner, setup so we draw texture1 (cracks)
# and invert the alpha in texture0 (pencil)
osg::TexEnvCombine texEnv1
texEnv1 setCombine_RGB $::osg::TexEnvCombine_REPLACE
texEnv1 setSource0_RGB $::osg::TexEnvCombine_TEXTURE1
texEnv1 setOperand0_RGB $::osg::TexEnvCombine_SRC_COLOR
texEnv1 setCombine_Alpha $::osg::TexEnvCombine_MODULATE
texEnv1 setSource1_Alpha $::osg::TexEnvCombine_TEXTURE0
texEnv1 setOperand1_Alpha $::osg::TexEnvCombine_ONE_MINUS_SRC_ALPHA
$stateSet1 setTextureAttribute 1 texEnv1
return group
}
# We have the geometry ready. Now create the viewer and the Tk widgets.
osgViewer::ViewerRef viewer [osgViewer::Viewer]
# set the scene-graph data the viewer will render
viewer setSceneData [CreateScene]
viewer setCameraManipulator [osgGA::TrackballManipulator]
if { $argc >= 1 && [lindex $argv 0] eq "-viewer" } {
# Only use the standard OSG viewer window without any Tk widgets.
viewer setUpViewInWindow 50 50 500 400
viewer run
exit 0
}
# Use the OSG viewer inside a Togl widget.
set osgwin [viewer setUpViewerAsEmbeddedInWindow 50 50 500 400]
tcl3dOsgSetOsgWin $osgwin
viewer realize
CreateWidgets $osgwin
PrintInfo [tcl3dOsgGetInfoString]
if { [file tail [info script]] eq [file tail $::argv0] } {
# If started directly from tclsh or wish, then start animation.
update
StartAnimation
}
|
