# alpha.tcl
#
# An example of the OpenGL red book modified to work with Tcl3D.
# The original C sources are Copyright (c) 1993-2003, Silicon Graphics, Inc.
# The Tcl3D sources are Copyright (c) 2005-2022, Paul Obermeier.
# See file LICENSE for complete license information.
#

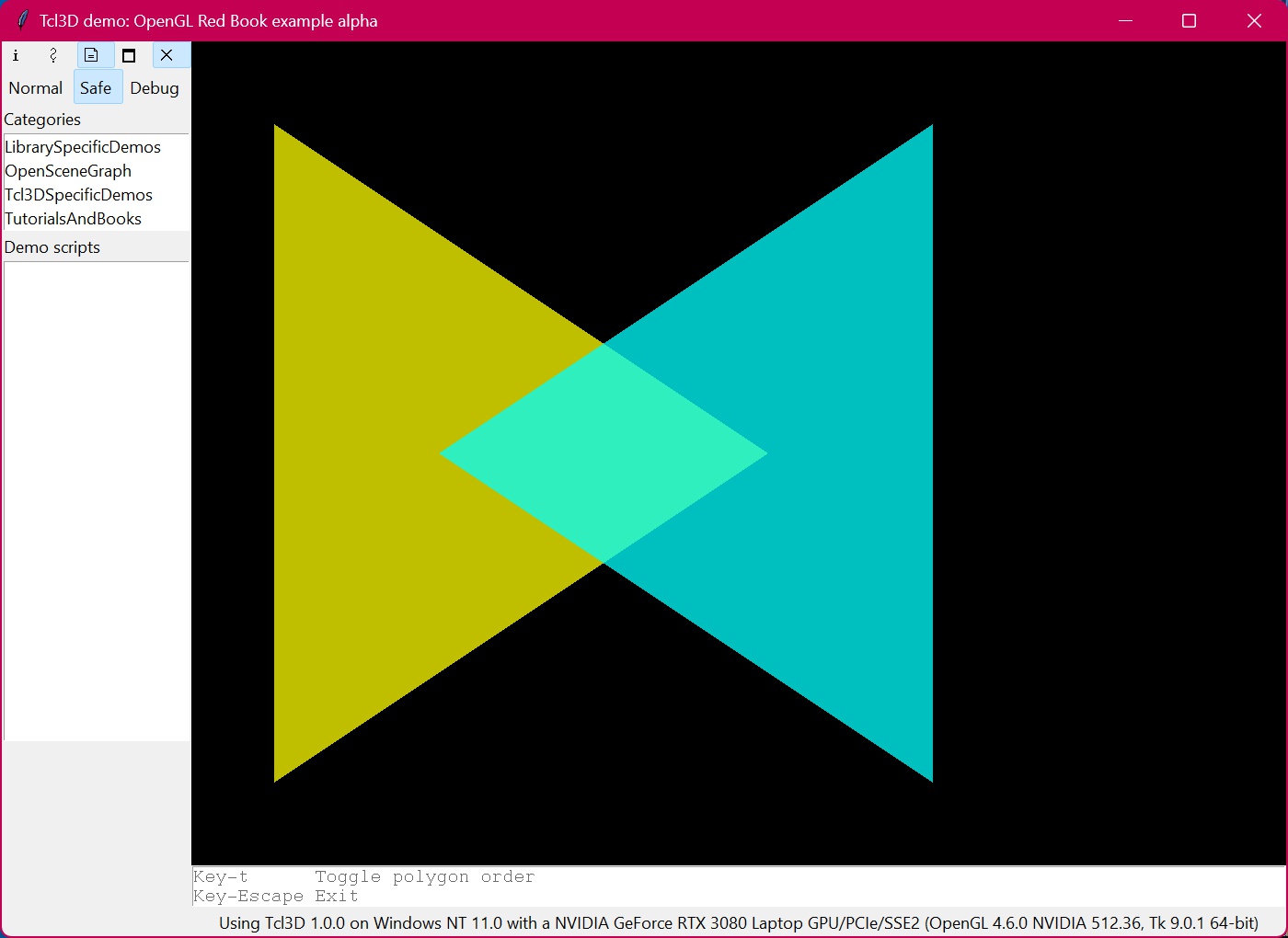

# This program draws several overlapping filled polygons
# to demonstrate the effect order has on alpha blending results.
# Use the 't' key to toggle the order of drawing polygons.
package require tcl3d
set leftFirst 1
# Font to be used in the Tk listbox.
set listFont {-family {Courier} -size 10}
# Show errors occuring in the Togl callbacks.
proc bgerror { msg } {
tk_messageBox -icon error -type ok -message "Error: $msg\n\n$::errorInfo"
exit
}
# Print info message into widget a the bottom of the window.
proc PrintInfo { msg } {
if { [winfo exists .fr.info] } {
.fr.info configure -text $msg
}
}
proc CreateCallback { toglwin } {
glEnable GL_BLEND
glBlendFunc GL_SRC_ALPHA GL_ONE_MINUS_SRC_ALPHA
glShadeModel GL_FLAT
glClearColor 0.0 0.0 0.0 0.0
}
proc drawLeftTriangle {} {
# draw yellow triangle on LHS of screen
glBegin GL_TRIANGLES
glColor4f 1.0 1.0 0.0 0.75
glVertex3f 0.1 0.9 0.0
glVertex3f 0.1 0.1 0.0
glVertex3f 0.7 0.5 0.0
glEnd
}
proc drawRightTriangle {} {
# draw cyan triangle on RHS of screen
glBegin GL_TRIANGLES
glColor4f 0.0 1.0 1.0 0.75
glVertex3f 0.9 0.9 0.0
glVertex3f 0.3 0.5 0.0
glVertex3f 0.9 0.1 0.0
glEnd
}
proc DisplayCallback { toglwin } {
glClear GL_COLOR_BUFFER_BIT
# Viewport command is not really needed, but has been inserted for
# Mac OSX. Presentation framework (Tk) does not send a reshape event,
# when switching from one demo to another.
glViewport 0 0 [$toglwin width] [$toglwin height]
if { $::leftFirst } {
drawLeftTriangle
drawRightTriangle
} else {
drawRightTriangle
drawLeftTriangle
}
glFlush
$toglwin swapbuffers
}
proc ReshapeCallback { toglwin { w -1 } { h -1 } } {
set w [$toglwin width]
set h [$toglwin height]
glViewport 0 0 $w $h
glMatrixMode GL_PROJECTION
glLoadIdentity
if { $w <= $h } {
gluOrtho2D 0.0 1.0 0.0 [expr 1.0*double($h)/double($w)]
} else {
gluOrtho2D 0.0 [expr 1.0*double($w)/double($h)] 0.0 1.0
}
}
proc ToggleWinOrder {} {
set ::leftFirst [expr ! $::leftFirst]
.fr.toglwin postredisplay
}
frame .fr
pack .fr -expand 1 -fill both
togl .fr.toglwin -width 400 -height 400 -double true \
-createcommand CreateCallback \
-reshapecommand ReshapeCallback \
-displaycommand DisplayCallback
listbox .fr.usage -font $::listFont -height 2
label .fr.info
grid .fr.toglwin -row 0 -column 0 -sticky news
grid .fr.usage -row 1 -column 0 -sticky news
grid .fr.info -row 2 -column 0 -sticky news
grid rowconfigure .fr 0 -weight 1
grid columnconfigure .fr 0 -weight 1
wm title . "Tcl3D demo: OpenGL Red Book example alpha"
bind . <Key-t> "ToggleWinOrder"
bind . <Key-Escape> "exit"
.fr.usage insert end "Key-t Toggle polygon order"
.fr.usage insert end "Key-Escape Exit"
.fr.usage configure -state disabled
PrintInfo [tcl3dOglGetInfoString]
|
