# image.tcl
#
# An example of the OpenGL red book modified to work with Tcl3D.
# The original C sources are Copyright (c) 1993-2003, Silicon Graphics, Inc.
# The Tcl3D sources are Copyright (c) 2005-2022, Paul Obermeier.
# See file LICENSE for complete license information.
#

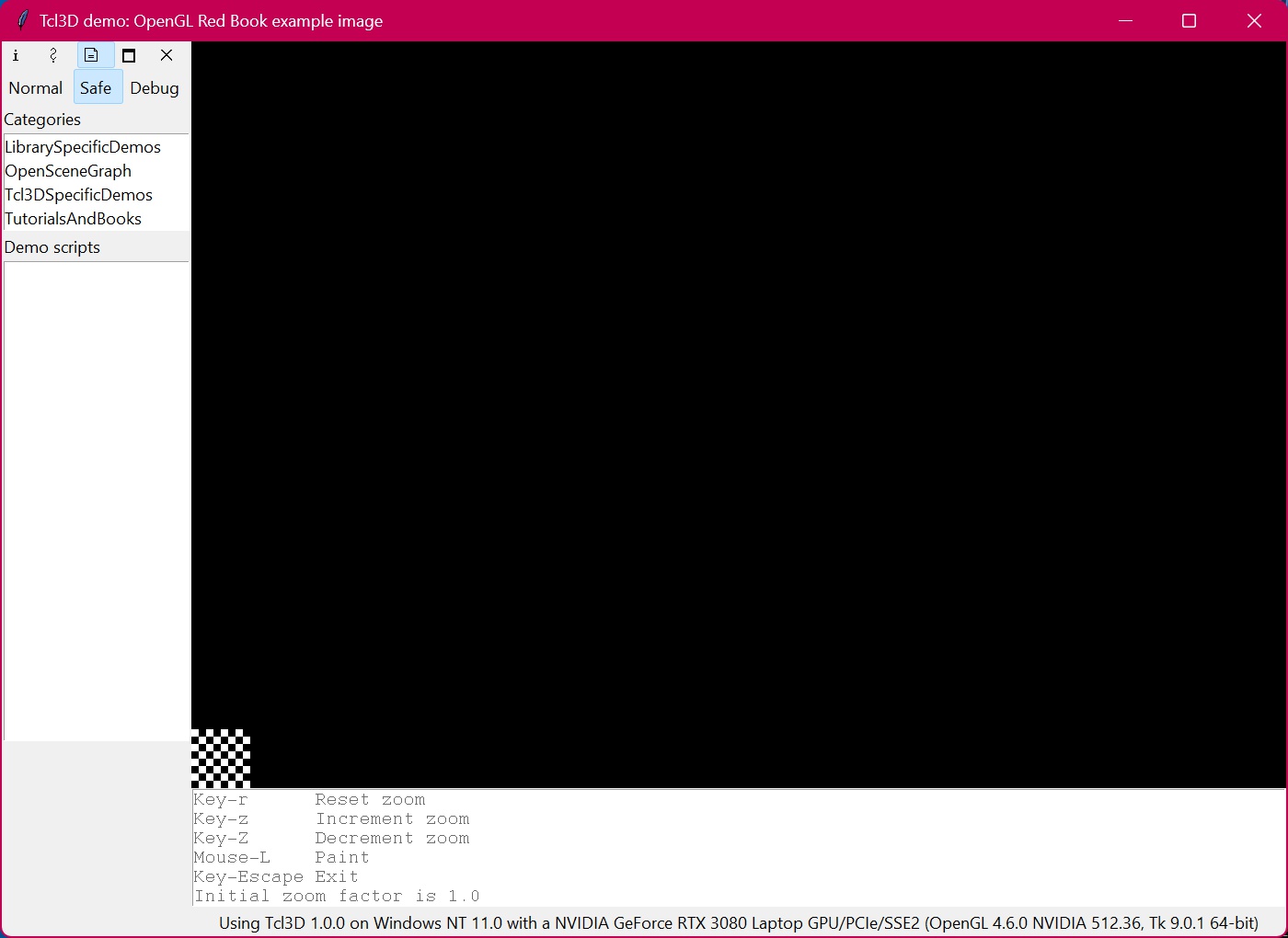

# This program demonstrates drawing pixels and shows the effect
# of glDrawPixels(), glCopyPixels(), and glPixelZoom().
# Interaction: moving the mouse while pressing the mouse button
# will copy the image in the lower-left corner of the window
# to the mouse position, using the current pixel zoom factors.
# There is no attempt to prevent you from drawing over the original
# image. If you press the 'r' key, the original image and zoom
# factors are reset. If you press the 'z' or 'Z' keys, you change
# the zoom factors.
package require tcl3d
# Create checkerboard texture
set checkImageWidth 64
set checkImageHeight 64
set checkImage [tcl3dVector GLubyte [expr $checkImageHeight*$checkImageWidth*3]]
set zoomFactor 1.0
set height 0
# Font to be used in the Tk listbox.
set listFont {-family {Courier} -size 10}
# Show errors occuring in the Togl callbacks.
proc bgerror { msg } {
tk_messageBox -icon error -type ok -message "Error: $msg\n\n$::errorInfo"
exit
}
# Print info message into widget a the bottom of the window.
proc PrintInfo { msg } {
if { [winfo exists .fr.info] } {
.fr.info configure -text $msg
}
}
# Note: A faster method to calculate and specify textures in Tcl has been
# introduced with Tcl3D version 0.3. See Tcl3D demo bytearray.tcl.
proc makeCheckImage {} {
for { set i 0 } { $i < $::checkImageHeight } { incr i } {
for { set j 0 } { $j < $::checkImageWidth } { incr j } {
set c [expr {(((($i&0x8)==0)^(($j&0x8))==0))*255}]
$::checkImage set [expr {($i*$::checkImageWidth + $j)*3 + 0}] $c
$::checkImage set [expr {($i*$::checkImageWidth + $j)*3 + 1}] $c
$::checkImage set [expr {($i*$::checkImageWidth + $j)*3 + 2}] $c
}
}
}
proc CreateCallback { toglwin } {
glClearColor 0.0 0.0 0.0 0.0
glShadeModel GL_FLAT
makeCheckImage
glPixelStorei GL_UNPACK_ALIGNMENT 1
}
proc DisplayCallback { toglwin } {
glClear GL_COLOR_BUFFER_BIT
# Viewport command is not really needed, but has been inserted for
# Mac OSX. Presentation framework (Tk) does not send a reshape event,
# when switching from one demo to another.
glViewport 0 0 [$toglwin width] [$toglwin height]
glRasterPos2i 0 0
glDrawPixels $::checkImageWidth $::checkImageHeight GL_RGB \
GL_UNSIGNED_BYTE $::checkImage
glFlush
}
proc ReshapeCallback { toglwin { w -1 } { h -1 } } {
set w [$toglwin width]
set h [$toglwin height]
glViewport 0 0 $w $h
set ::height $h
glMatrixMode GL_PROJECTION
glLoadIdentity
gluOrtho2D 0.0 $w 0.0 $h
glMatrixMode GL_MODELVIEW
glLoadIdentity
}
proc UpdateMsg { str } {
.fr.usage configure -state normal
.fr.usage delete end
.fr.usage insert end $str
.fr.usage configure -state disabled
}
proc ResetZoom {} {
set ::zoomFactor 1.0
UpdateMsg [format "zoomFactor is now %4.1f" $::zoomFactor]
.fr.toglwin postredisplay
}
proc IncrZoom {} {
set ::zoomFactor [expr $::zoomFactor + 0.5]
if { $::zoomFactor >= 3.0 } {
set ::zoomFactor 3.0
}
UpdateMsg [format "zoomFactor is now %4.1f" $::zoomFactor]
}
proc DecrZoom {} {
set ::zoomFactor [expr $::zoomFactor - 0.5]
if { $::zoomFactor <= 0.5 } {
set ::zoomFactor 0.5
}
UpdateMsg [format "zoomFactor is now %4.1f" $::zoomFactor]
}
proc Motion { x y } {
set ::screeny [expr $::height - $y]
glRasterPos2i $x $::screeny
glPixelZoom $::zoomFactor $::zoomFactor
glCopyPixels 0 0 $::checkImageWidth $::checkImageHeight GL_COLOR
glPixelZoom 1.0 1.0
glFlush
}
frame .fr
pack .fr -expand 1 -fill both
togl .fr.toglwin -width 400 -height 400 -double false \
-createcommand CreateCallback \
-reshapecommand ReshapeCallback \
-displaycommand DisplayCallback
listbox .fr.usage -font $::listFont -height 6
label .fr.info
grid .fr.toglwin -row 0 -column 0 -sticky news
grid .fr.usage -row 1 -column 0 -sticky news
grid .fr.info -row 2 -column 0 -sticky news
grid rowconfigure .fr 0 -weight 1
grid columnconfigure .fr 0 -weight 1
wm title . "Tcl3D demo: OpenGL Red Book example image"
bind . <Key-Escape> "exit"
bind . <Key-r> "ResetZoom"
bind . <Key-z> "IncrZoom"
bind . <Key-Z> "DecrZoom"
bind .fr.toglwin <B1-Motion> "Motion %x %y"
.fr.usage insert end "Key-r Reset zoom"
.fr.usage insert end "Key-z Increment zoom"
.fr.usage insert end "Key-Z Decrement zoom"
.fr.usage insert end "Mouse-L Paint"
.fr.usage insert end "Key-Escape Exit"
.fr.usage insert end "Initial zoom factor is $::zoomFactor"
.fr.usage configure -state disabled
PrintInfo [tcl3dOglGetInfoString]
|
