# material.tcl
#
# An example of the OpenGL red book modified to work with Tcl3D.
# The original C sources are Copyright (c) 1993-2003, Silicon Graphics, Inc.
# The Tcl3D sources are Copyright (c) 2005-2022, Paul Obermeier.
# See file LICENSE for complete license information.
#
# This program demonstrates the use of the GL lighting model.
# Several objects are drawn using different material characteristics.
# A single light source illuminates the objects.
package require tcl3d
# Font to be used in the Tk listbox.
set listFont {-family {Courier} -size 10}
# Show errors occuring in the Togl callbacks.
proc bgerror { msg } {
tk_messageBox -icon error -type ok -message "Error: $msg\n\n$::errorInfo"
exit
}
# Print info message into widget a the bottom of the window.
proc PrintInfo { msg } {
if { [winfo exists .fr.info] } {
.fr.info configure -text $msg
}
}
# Initialize z-buffer, projection matrix, light source,
# and lighting model. Do not specify a material property here.
#
proc CreateCallback { toglwin } {
set ambient { 0.0 0.0 0.0 1.0 }
set diffuse { 1.0 1.0 1.0 1.0 }
set specular { 1.0 1.0 1.0 1.0 }
set position { 0.0 3.0 2.0 0.0 }
set lmodel_ambient { 0.4 0.4 0.4 1.0 }
set local_view { 0.0 }
glClearColor 0.0 0.1 0.1 0.0
glEnable GL_DEPTH_TEST
glShadeModel GL_SMOOTH
glLightfv GL_LIGHT0 GL_AMBIENT $ambient
glLightfv GL_LIGHT0 GL_DIFFUSE $diffuse
glLightfv GL_LIGHT0 GL_POSITION $position
glLightModelfv GL_LIGHT_MODEL_AMBIENT $lmodel_ambient
glLightModelfv GL_LIGHT_MODEL_LOCAL_VIEWER $local_view
glEnable GL_LIGHTING
glEnable GL_LIGHT0
}

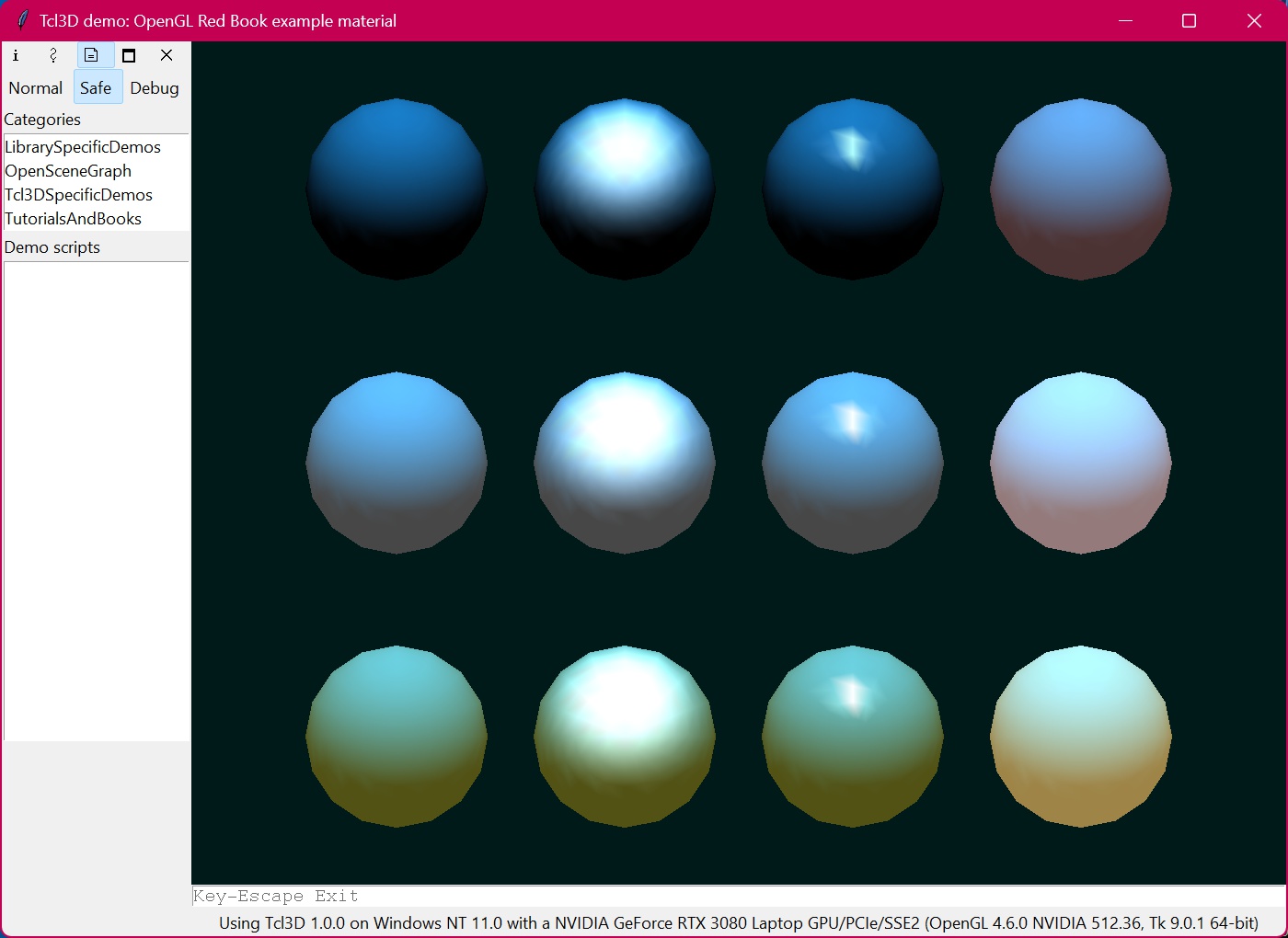

# Draw twelve spheres in 3 rows with 4 columns.
# The spheres in the first row have materials with no ambient reflection.
# The second row has materials with significant ambient reflection.
# The third row has materials with colored ambient reflection.
#
# The first column has materials with blue, diffuse reflection only.
# The second column has blue diffuse reflection, as well as specular
# reflection with a low shininess exponent.
# The third column has blue diffuse reflection, as well as specular
# reflection with a high shininess exponent (a more concentrated highlight).
# The fourth column has materials which also include an emissive component.
#
# glTranslatef() is used to move spheres to their appropriate locations.
#
proc DisplayCallback { toglwin } {
set no_mat { 0.0 0.0 0.0 1.0 }
set mat_ambient { 0.7 0.7 0.7 1.0 }
set mat_ambient_color { 0.8 0.8 0.2 1.0 }
set mat_diffuse { 0.1 0.5 0.8 1.0 }
set mat_specular { 1.0 1.0 1.0 1.0 }
set no_shininess { 0.0 }
set low_shininess { 5.0 }
set high_shininess { 100.0 }
set mat_emission {0.3 0.2 0.2 0.0}
glClear [expr $::GL_COLOR_BUFFER_BIT | $::GL_DEPTH_BUFFER_BIT]
# Viewport command is not really needed, but has been inserted for
# Mac OSX. Presentation framework (Tk) does not send a reshape event,
# when switching from one demo to another.
glViewport 0 0 [$toglwin width] [$toglwin height]
# draw sphere in first row, first column
# diffuse reflection only; no ambient or specular
#
glPushMatrix
glTranslatef -3.75 3.0 0.0
glMaterialfv GL_FRONT GL_AMBIENT $no_mat
glMaterialfv GL_FRONT GL_DIFFUSE $mat_diffuse
glMaterialfv GL_FRONT GL_SPECULAR $no_mat
glMaterialfv GL_FRONT GL_SHININESS $no_shininess
glMaterialfv GL_FRONT GL_EMISSION $no_mat
glutSolidSphere 1.0 16 16
glPopMatrix
# draw sphere in first row, second column
# diffuse and specular reflection; low shininess; no ambient
#
glPushMatrix
glTranslatef -1.25 3.0 0.0
glMaterialfv GL_FRONT GL_AMBIENT $no_mat
glMaterialfv GL_FRONT GL_DIFFUSE $mat_diffuse
glMaterialfv GL_FRONT GL_SPECULAR $mat_specular
glMaterialfv GL_FRONT GL_SHININESS $low_shininess
glMaterialfv GL_FRONT GL_EMISSION $no_mat
glutSolidSphere 1.0 16 16
glPopMatrix
# draw sphere in first row, third column
# diffuse and specular reflection; high shininess; no ambient
#
glPushMatrix
glTranslatef 1.25 3.0 0.0
glMaterialfv GL_FRONT GL_AMBIENT $no_mat
glMaterialfv GL_FRONT GL_DIFFUSE $mat_diffuse
glMaterialfv GL_FRONT GL_SPECULAR $mat_specular
glMaterialfv GL_FRONT GL_SHININESS $high_shininess
glMaterialfv GL_FRONT GL_EMISSION $no_mat
glutSolidSphere 1.0 16 16
glPopMatrix
# draw sphere in first row, fourth column
# diffuse reflection; emission; no ambient or specular reflection
#
glPushMatrix
glTranslatef 3.75 3.0 0.0
glMaterialfv GL_FRONT GL_AMBIENT $no_mat
glMaterialfv GL_FRONT GL_DIFFUSE $mat_diffuse
glMaterialfv GL_FRONT GL_SPECULAR $no_mat
glMaterialfv GL_FRONT GL_SHININESS $no_shininess
glMaterialfv GL_FRONT GL_EMISSION $mat_emission
glutSolidSphere 1.0 16 16
glPopMatrix
# draw sphere in second row, first column
# ambient and diffuse reflection; no specular
#
glPushMatrix
glTranslatef -3.75 0.0 0.0
glMaterialfv GL_FRONT GL_AMBIENT $mat_ambient
glMaterialfv GL_FRONT GL_DIFFUSE $mat_diffuse
glMaterialfv GL_FRONT GL_SPECULAR $no_mat
glMaterialfv GL_FRONT GL_SHININESS $no_shininess
glMaterialfv GL_FRONT GL_EMISSION $no_mat
glutSolidSphere 1.0 16 16
glPopMatrix
# draw sphere in second row, second column
# ambient, diffuse and specular reflection; low shininess
#
glPushMatrix
glTranslatef -1.25 0.0 0.0
glMaterialfv GL_FRONT GL_AMBIENT $mat_ambient
glMaterialfv GL_FRONT GL_DIFFUSE $mat_diffuse
glMaterialfv GL_FRONT GL_SPECULAR $mat_specular
glMaterialfv GL_FRONT GL_SHININESS $low_shininess
glMaterialfv GL_FRONT GL_EMISSION $no_mat
glutSolidSphere 1.0 16 16
glPopMatrix
# draw sphere in second row, third column
# ambient, diffuse and specular reflection; high shininess
#
glPushMatrix
glTranslatef 1.25 0.0 0.0
glMaterialfv GL_FRONT GL_AMBIENT $mat_ambient
glMaterialfv GL_FRONT GL_DIFFUSE $mat_diffuse
glMaterialfv GL_FRONT GL_SPECULAR $mat_specular
glMaterialfv GL_FRONT GL_SHININESS $high_shininess
glMaterialfv GL_FRONT GL_EMISSION $no_mat
glutSolidSphere 1.0 16 16
glPopMatrix
# draw sphere in second row, fourth column
# ambient and diffuse reflection; emission; no specular
#
glPushMatrix
glTranslatef 3.75 0.0 0.0
glMaterialfv GL_FRONT GL_AMBIENT $mat_ambient
glMaterialfv GL_FRONT GL_DIFFUSE $mat_diffuse
glMaterialfv GL_FRONT GL_SPECULAR $no_mat
glMaterialfv GL_FRONT GL_SHININESS $no_shininess
glMaterialfv GL_FRONT GL_EMISSION $mat_emission
glutSolidSphere 1.0 16 16
glPopMatrix
# draw sphere in third row, first column
# colored ambient and diffuse reflection; no specular
#
glPushMatrix
glTranslatef -3.75 -3.0 0.0
glMaterialfv GL_FRONT GL_AMBIENT $mat_ambient_color
glMaterialfv GL_FRONT GL_DIFFUSE $mat_diffuse
glMaterialfv GL_FRONT GL_SPECULAR $no_mat
glMaterialfv GL_FRONT GL_SHININESS $no_shininess
glMaterialfv GL_FRONT GL_EMISSION $no_mat
glutSolidSphere 1.0 16 16
glPopMatrix
# draw sphere in third row, second column
# colored ambient, diffuse and specular reflection; low shininess
#
glPushMatrix
glTranslatef -1.25 -3.0 0.0
glMaterialfv GL_FRONT GL_AMBIENT $mat_ambient_color
glMaterialfv GL_FRONT GL_DIFFUSE $mat_diffuse
glMaterialfv GL_FRONT GL_SPECULAR $mat_specular
glMaterialfv GL_FRONT GL_SHININESS $low_shininess
glMaterialfv GL_FRONT GL_EMISSION $no_mat
glutSolidSphere 1.0 16 16
glPopMatrix
# draw sphere in third row, third column
# colored ambient, diffuse and specular reflection; high shininess
#
glPushMatrix
glTranslatef 1.25 -3.0 0.0
glMaterialfv GL_FRONT GL_AMBIENT $mat_ambient_color
glMaterialfv GL_FRONT GL_DIFFUSE $mat_diffuse
glMaterialfv GL_FRONT GL_SPECULAR $mat_specular
glMaterialfv GL_FRONT GL_SHININESS $high_shininess
glMaterialfv GL_FRONT GL_EMISSION $no_mat
glutSolidSphere 1.0 16 16
glPopMatrix
# draw sphere in third row, fourth column
# colored ambient and diffuse reflection; emission; no specular
#
glPushMatrix
glTranslatef 3.75 -3.0 0.0
glMaterialfv GL_FRONT GL_AMBIENT $mat_ambient_color
glMaterialfv GL_FRONT GL_DIFFUSE $mat_diffuse
glMaterialfv GL_FRONT GL_SPECULAR $no_mat
glMaterialfv GL_FRONT GL_SHININESS $no_shininess
glMaterialfv GL_FRONT GL_EMISSION $mat_emission
glutSolidSphere 1.0 16 16
glPopMatrix
glFlush
$toglwin swapbuffers
}
proc ReshapeCallback { toglwin { w -1 } { h -1 } } {
set w [$toglwin width]
set h [$toglwin height]
glViewport 0 0 $w $h
glMatrixMode GL_PROJECTION
glLoadIdentity
if { $w <= [expr $h * 2] } {
glOrtho -6.0 6.0 [expr -3.0*double($h)*2/double($w)] \
[expr 3.0*double($h)*2/double($w)] -10.0 10.0
} else {
glOrtho [expr -6.0*double($w)/(double($h)*2)] \
[expr 6.0*double($w)/(double($h)*2)] -3.0 3.0 -10.0 10.0
}
glMatrixMode GL_MODELVIEW
glLoadIdentity
}
frame .fr
pack .fr -expand 1 -fill both
togl .fr.toglwin -width 600 -height 450 -double true -depth true \
-createcommand CreateCallback \
-reshapecommand ReshapeCallback \
-displaycommand DisplayCallback
listbox .fr.usage -font $::listFont -height 1
label .fr.info
grid .fr.toglwin -row 0 -column 0 -sticky news
grid .fr.usage -row 1 -column 0 -sticky news
grid .fr.info -row 2 -column 0 -sticky news
grid rowconfigure .fr 0 -weight 1
grid columnconfigure .fr 0 -weight 1
wm title . "Tcl3D demo: OpenGL Red Book example material"
bind . <Key-Escape> "exit"
.fr.usage insert end "Key-Escape Exit"
.fr.usage configure -state disabled
PrintInfo [tcl3dOglGetInfoString]
|
