# model.tcl
#
# An example of the OpenGL red book modified to work with Tcl3D.
# The original C sources are Copyright (c) 1993-2003, Silicon Graphics, Inc.
# The Tcl3D sources are Copyright (c) 2005-2022, Paul Obermeier.
# See file LICENSE for complete license information.
#
# This program demonstrates modeling transformations
package require tcl3d
# Font to be used in the Tk listbox.
set listFont {-family {Courier} -size 10}
# Show errors occuring in the Togl callbacks.
proc bgerror { msg } {
tk_messageBox -icon error -type ok -message "Error: $msg\n\n$::errorInfo"
exit
}
# Print info message into widget a the bottom of the window.
proc PrintInfo { msg } {
if { [winfo exists .fr.info] } {
.fr.info configure -text $msg
}
}
proc CreateCallback { toglwin } {
glClearColor 0.0 0.0 0.0 0.0
glShadeModel GL_FLAT
}
proc draw_triangle {} {
glBegin GL_LINE_LOOP
glVertex2f 0.0 25.0
glVertex2f 25.0 -25.0
glVertex2f -25.0 -25.0
glEnd
}
proc DisplayCallback { toglwin } {
glClear GL_COLOR_BUFFER_BIT
# Viewport command is not really needed, but has been inserted for
# Mac OSX. Presentation framework (Tk) does not send a reshape event,
# when switching from one demo to another.
glViewport 0 0 [$toglwin width] [$toglwin height]
glColor3f 1.0 1.0 1.0
glLoadIdentity
glColor3f 1.0 1.0 1.0
draw_triangle
glEnable GL_LINE_STIPPLE
glLineStipple 1 0xF0F0
glLoadIdentity
glTranslatef -20.0 0.0 0.0
draw_triangle
glLineStipple 1 0xF00F
glLoadIdentity
glScalef 1.5 0.5 1.0
draw_triangle
glLineStipple 1 0x8888
glLoadIdentity
glRotatef 90.0 0.0 0.0 1.0
draw_triangle
glDisable GL_LINE_STIPPLE
glFlush
$toglwin swapbuffers
}
proc ReshapeCallback { toglwin { w -1 } { h -1 } } {
set w [$toglwin width]
set h [$toglwin height]
glViewport 0 0 $w $h
glMatrixMode GL_PROJECTION
glLoadIdentity
if { $w <= $h } {
glOrtho -50.0 50.0 \
[expr -50.0*double($h)/double($w)] \
[expr 50.0*double($h)/double($w)] \
-1.0 1.0
} else {
glOrtho [expr -50.0*double($w)/double($h)] \
[expr 50.0*double($w)/double($h)] \
-50.0 50.0 -1.0 1.0
}
glMatrixMode GL_MODELVIEW
}
frame .fr
pack .fr -expand 1 -fill both
togl .fr.toglwin -width 500 -height 500 -double true \
-createcommand CreateCallback \
-reshapecommand ReshapeCallback \
-displaycommand DisplayCallback
listbox .fr.usage -font $::listFont -height 1
label .fr.info
grid .fr.toglwin -row 0 -column 0 -sticky news
grid .fr.usage -row 1 -column 0 -sticky news
grid .fr.info -row 2 -column 0 -sticky news
grid rowconfigure .fr 0 -weight 1
grid columnconfigure .fr 0 -weight 1

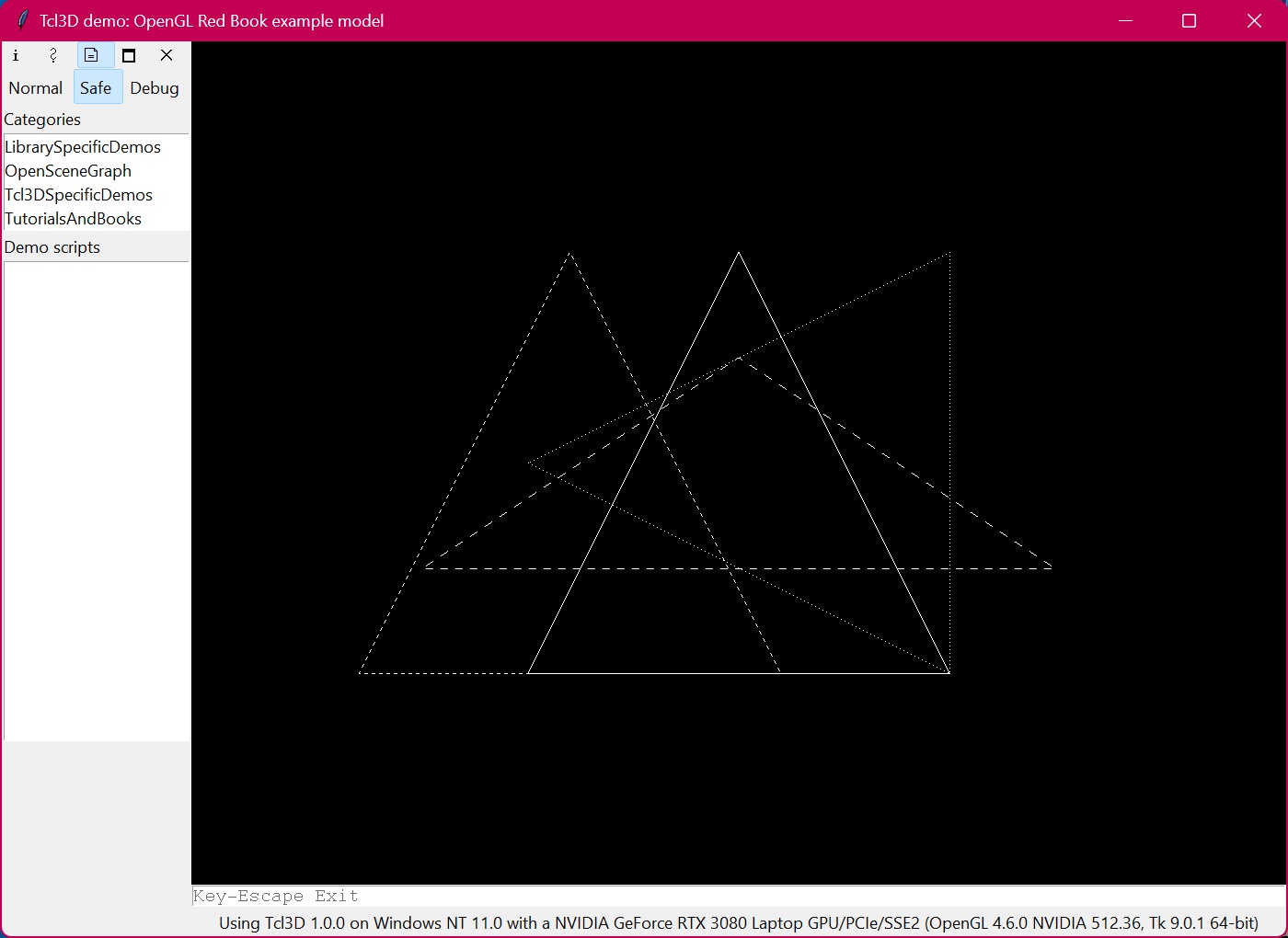

wm title . "Tcl3D demo: OpenGL Red Book example model"
bind . <Key-Escape> "exit"
.fr.usage insert end "Key-Escape Exit"
.fr.usage configure -state disabled
PrintInfo [tcl3dOglGetInfoString]
|
